Champion DH6000T Installation Guide
4
of 1
of 1 rating
46 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
DET
R
/A
Pr
ogramming
Installation
BAC
K
DE
TERGENT
CY
CLE TIMES
DET PRIME
RA PRIME
RINSE AID
CONCENTRA
TION

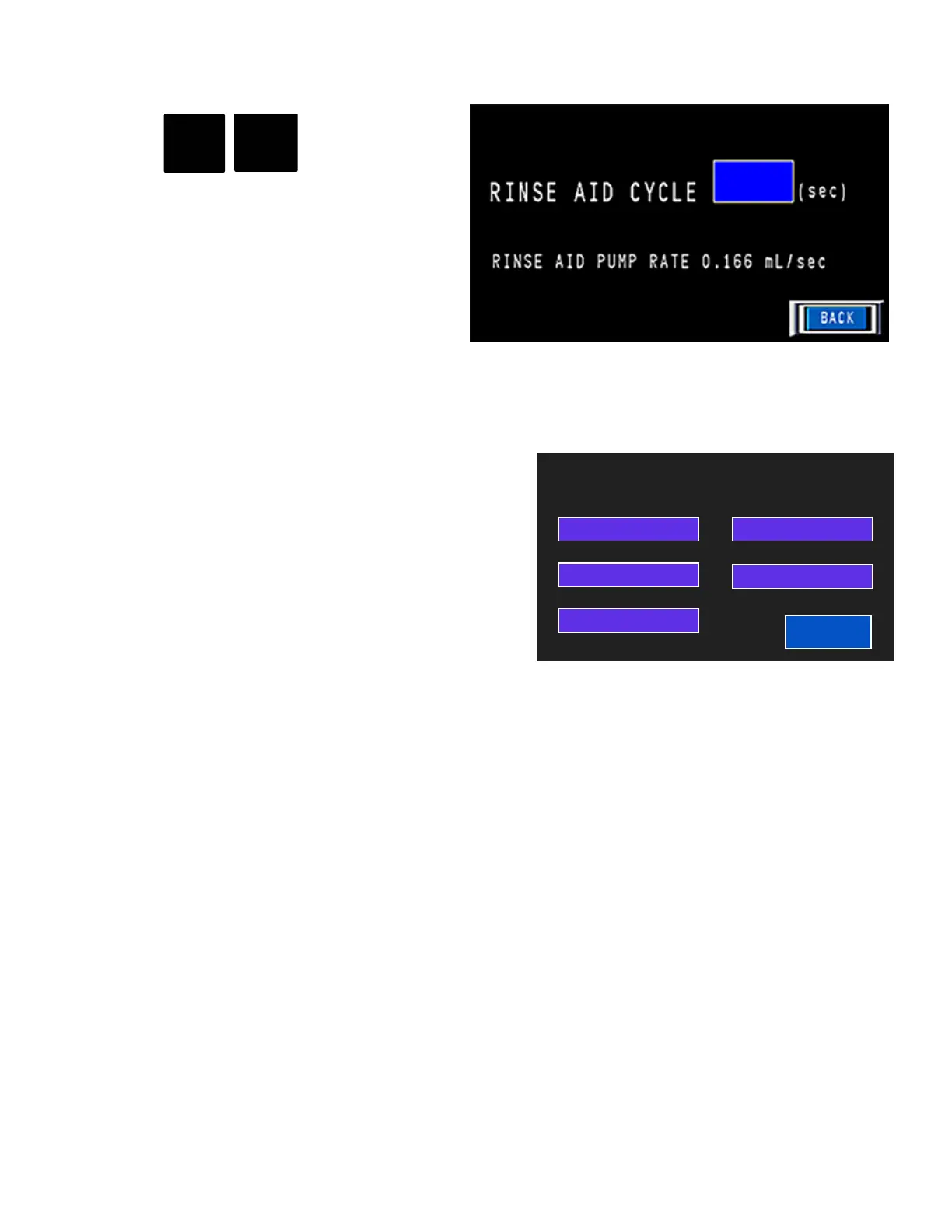

Rinse-aid Cycle -
Sets the time the rinse-aid pump
runs during final rinse.
Factory Default = 5 sec.
Manual Priming (Passwor
d Fr
ee)
•
The Detergent Prime (DET PRIME) and
•
Rinse aid Prime (RA PRIME)
do not requir
e password access.
•
Press the desir
ed button until
chemical fills the lines and release.
5
15
30
32
Table of Contents
Limited Warranty
6
Table of Contents
7
Specification Sheets
8
Installation Codes and Safety Symbols
16
Installation
16
Receiving and Placement
17
Dish Table Connections
18
Corner Operation - Corner Splash Shield
19
Corner Operation - Track Conversion
20
VHR Cold Water Connection-DH6000-VHR, DH6000T-VHR
21
Standard Hot Water Connection - DH6000, DH6000T
21
Drain Connection
22
Optional Drain Water Tempering Kit
23
Electrical Connections - Single and Three Phase
24
Single and Two Point Power Connections
25
Converting 3-Phase to 1-Phase Operation
26
Optional Champion Built-In Detergent and Rinse-Aid Dispensing System
27
Program the Chemical Dispensing System
28
Detergent Concentration Graphs
30
Delime Programming
32
Detergent Probe/Signal for Chemical Dispensing Systems by Others
34
Rinse-Aid Injector/Signal for Chemical Dispensing Systems by Others
35
Shortening a Chemical Pick-Up Hose Supplied by Others
36
Ventilation (Vent Fan Control)
38
APPENDIX A: DH6000T Corner Splash Shield Kit, P/N 901104
40
APPENDIX B: Kit P/N 901168, 1 to 2-Point Electrical Connection Conversion
43
APPENDIX C: Manually Operating the Drain Valve
46
Other manuals for Champion DH6000T
Operation, Cleaning And Maintenance Manual
22 pages
Installation Manual
52 pages
