APPENDIX B: 1-Point to 2-Point Electrical Connection Conversion, Kit P/N 901168

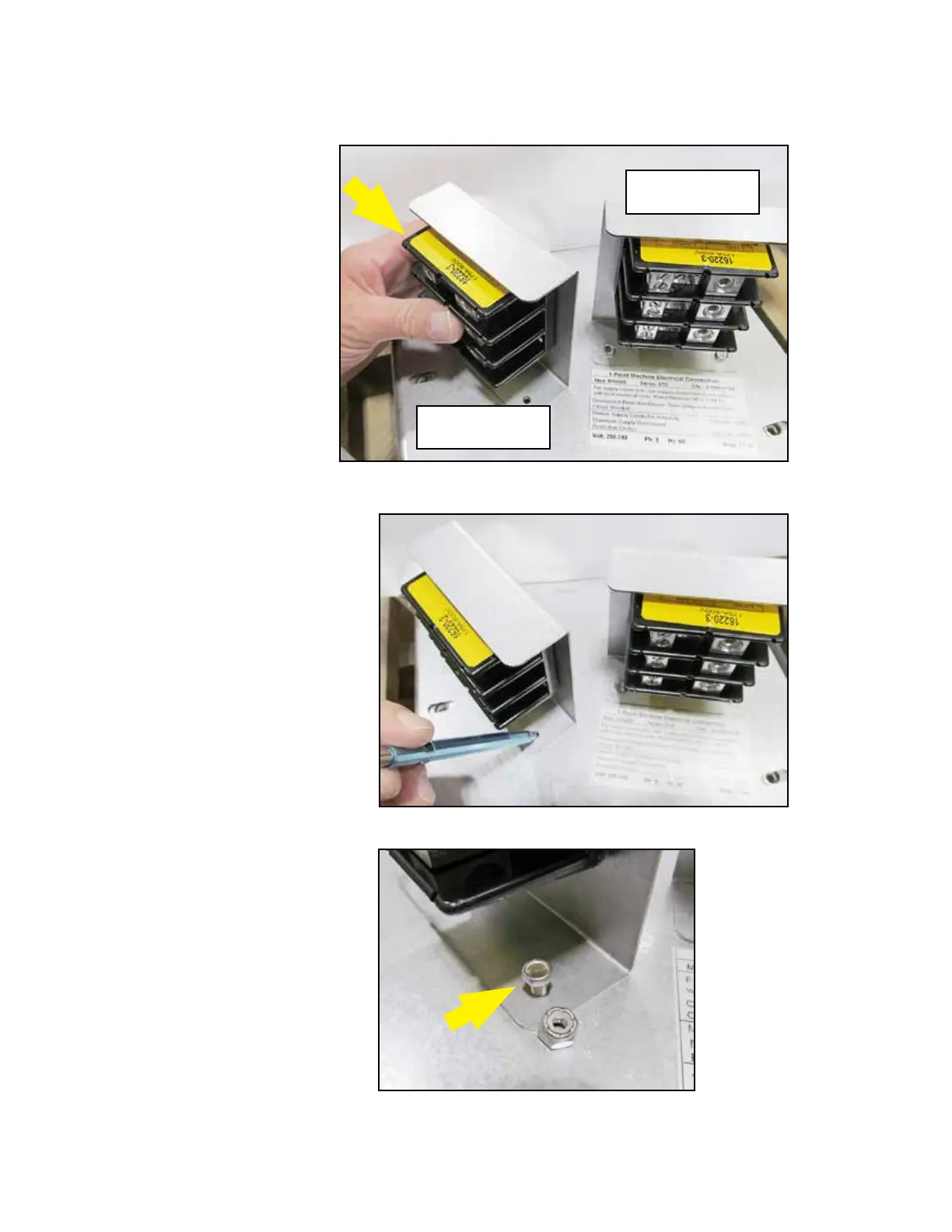

6. Position the Booster terminal block and make sure the booster wires
disconnected in step 4 will reach to the block. (Fig. 4).
7. The base should be predrilled
for the bracket, however, if not,
then use the bracket as a
template and mark two holes
(Fig. 5).
8. Drill the holes.
9. Mount the bracket using
two 10-32 Hex screws and
grip nuts from the kit (Fig. 6).
BOOSTER
MACHINE
Fig. 4
Fig. 5
Fig. 6
