ChargePoint Express 250 - Civil and Mechanical Design

7
2
Civil and Mechanical Design
Use the guidance below to design the civil and mechanical aspects of the site.
Component Dimensions and Weights

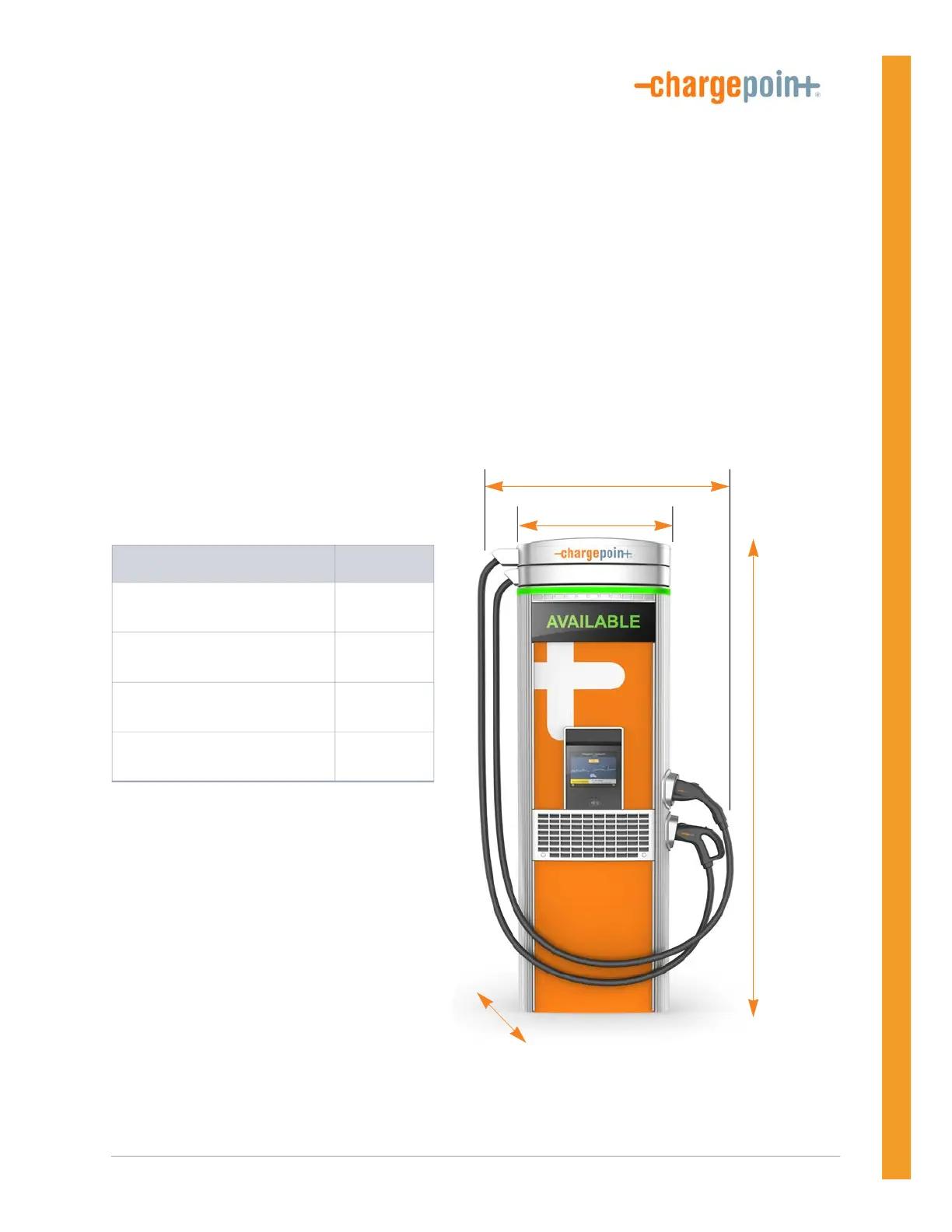

The Express 250 is a vertical enclosure with
the dimensions shown here.
Component Weight
Each Power Module 44 kg
(97 lb)
Crated Power Module as
shipped
49.9 kg
(110 lbs)
Express 250 with two Power
Modules, installed
339 kg
(746 lb)
Crated Express 250 as
shipped
494 kg
(1089 lb)
712 mm (28 in)
2230 mm
(87.8 in)
420 mm (16.5 in)
~ 1118 mm (44 in)
