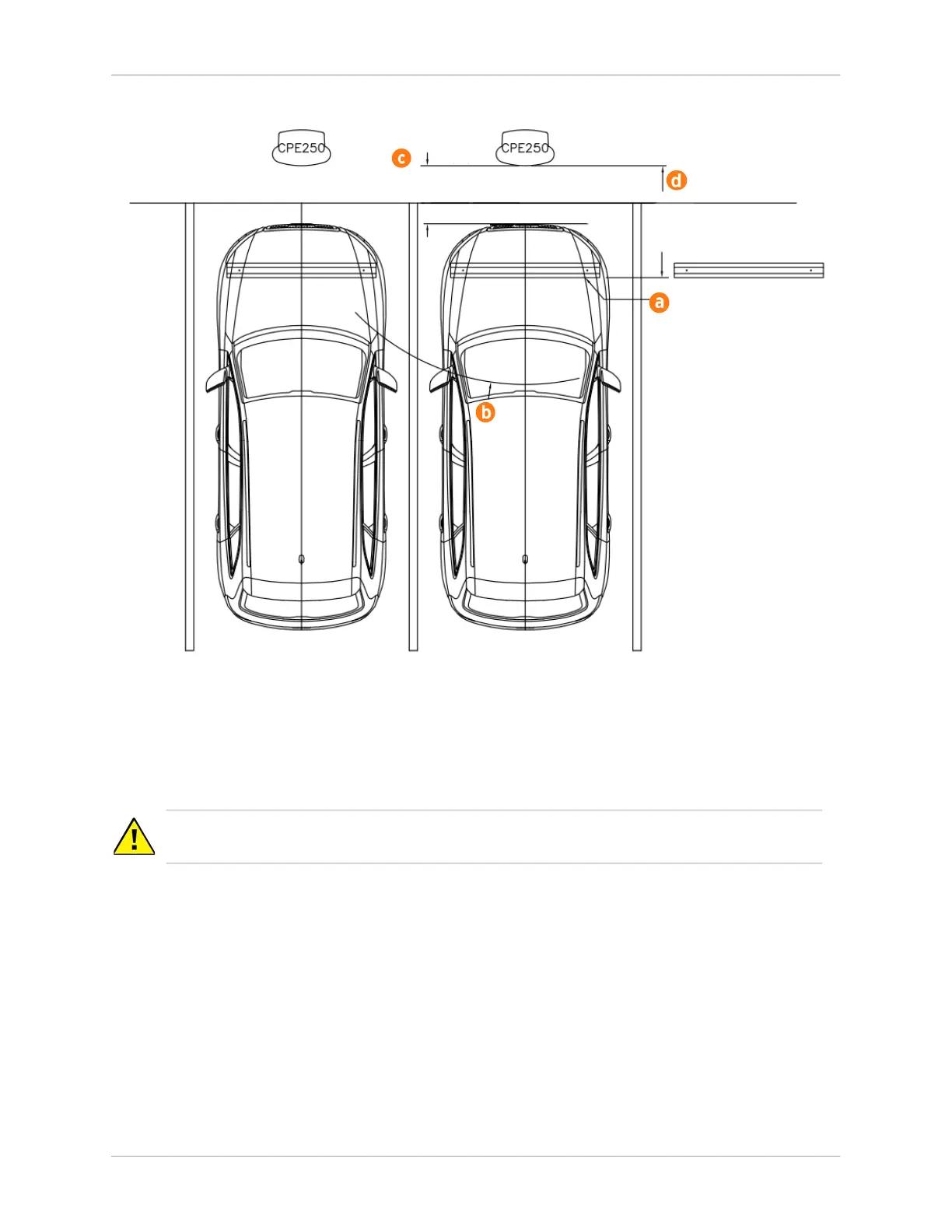

a. Wheel stop, positioned to actively block at least one wheel
b. Cable reach radius: 3.76 m (148 in)
c. Recommended distance for walk-up access: 609 mm (24 in)
d. Recommended distance between wheel stop and Express 250: 1371 mm (54 in) for passenger
vehicles
Note: For fleet or commercial use, measure the rear or front overhang of the largest vehicle in use,
depending on charge port location.
Bollards
Bollards and wheel stops are not explicitly required by ChargePoint. However, ChargePoint
recommends these best practices and considerations when designing the site:
• Permanent bollards or wheel stops must not encroach upon the Power Module clearance listed
in the clearance diagram above. Removable bollards are allowed if service personnel have the
ability to move them as needed.
CAUTION: Shorter wheel stops that are installed in the center of a parking spot can fit
between the wheels of a larger vehicle and not prevent forward motion.
