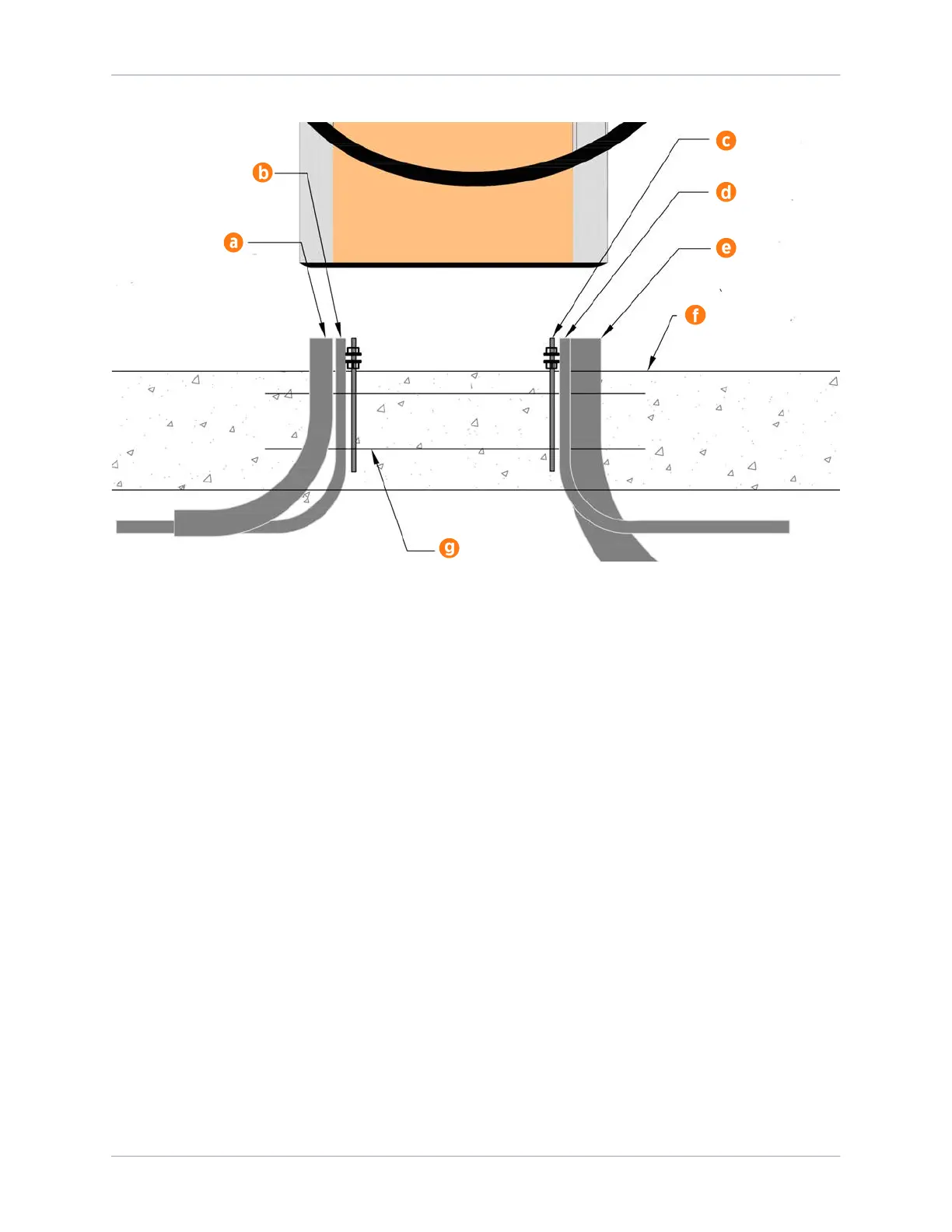

a. AC conduit from the left side of each station to the breaker panel (possibly with an AC
disconnect switch in the circuit): 50.8 mm (2 in trade size)
b. Shunt trip conduit from the left side of each station to the breaker panel: 19.1 mm (3/4 in
trade size)
c. Anchor bolts (x4)
d. Paired installations only: Ethernet conduit between the two stations to be paired, right side
to right side: 19.1 mm (3/4 in trade size)
e. Paired installations only: DC conduit between the two stations to be paired, right side to
right side: 76.2 mm (3 in trade size)
f. Concrete surface
g. Concrete Mounting Template (embedded in concrete)
Note: Ensure no bell ends are left on any conduit after all wires are pulled. Bell ends can interfere
with station placement.
Note: Depth of conduit or armored cable may vary by site. The image above does not dictate
conduit depth, as long as the stub-ups are vertical and placed correctly.
