Distribution Block – troubleshoot the distribution block sensors/connections

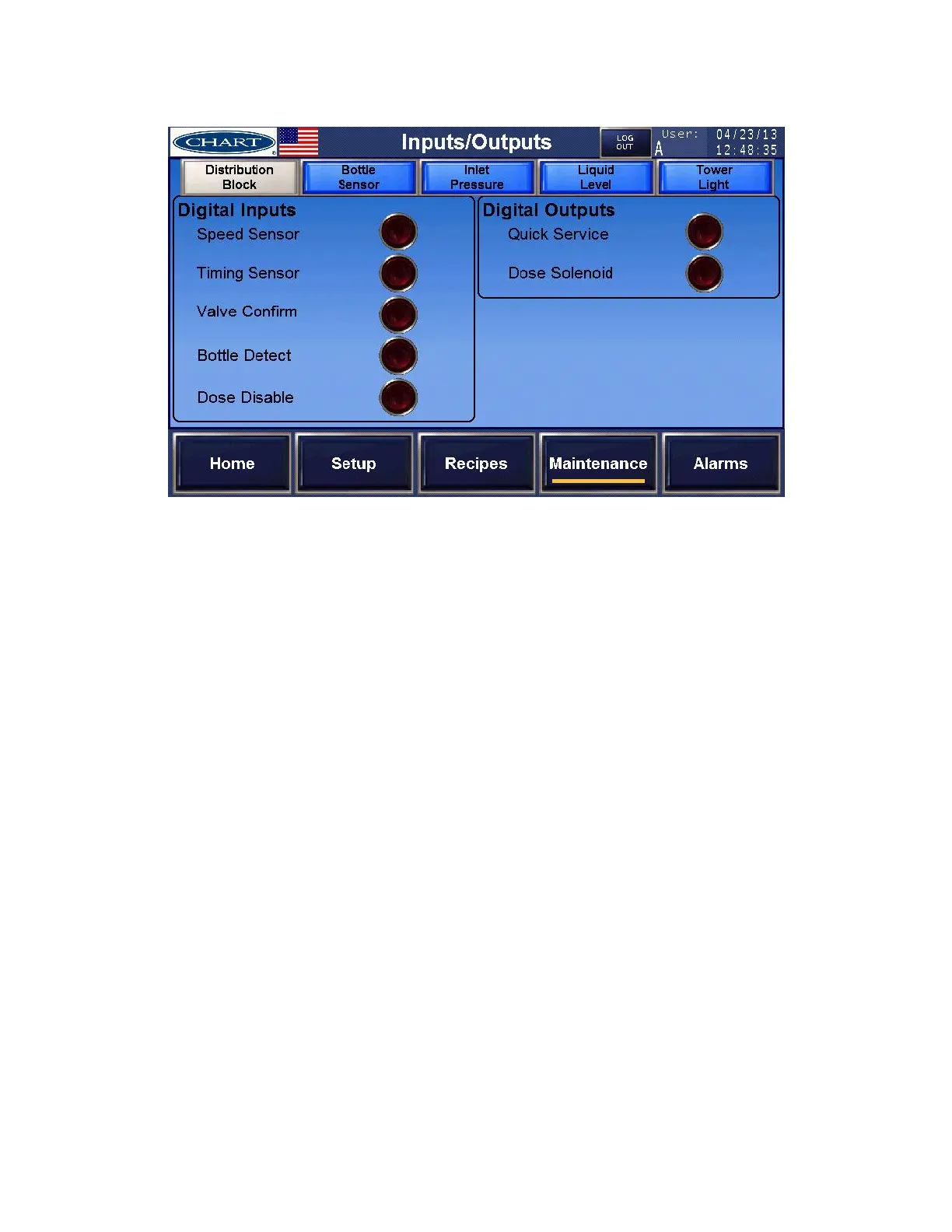

These digital inputs and outputs replicate the lights on the Distribution Block.
a) Speed Sensor (digital input) – Usually this is the status of the encoder pulses.
b) Timing Sensor (digital input) – This is the status of the one per bottle sensor.
c) Valve Confirm (digital input) – This is the status of the LN2 valve actuator sensor.
d) Bottle Detect (digital input) – This is the status of the bottle sensor.
e) Dose Disable (digital input) – This is the status of the Dose Disable.
f) Quick Service (digital output) – This is the status of the Quick Service function.
g) Dose Solenoid (digital output) – This is the status of the Dose Solenoid LN2 valve
actuator.
To Next Page
