SR209 Plus Series
│ 23

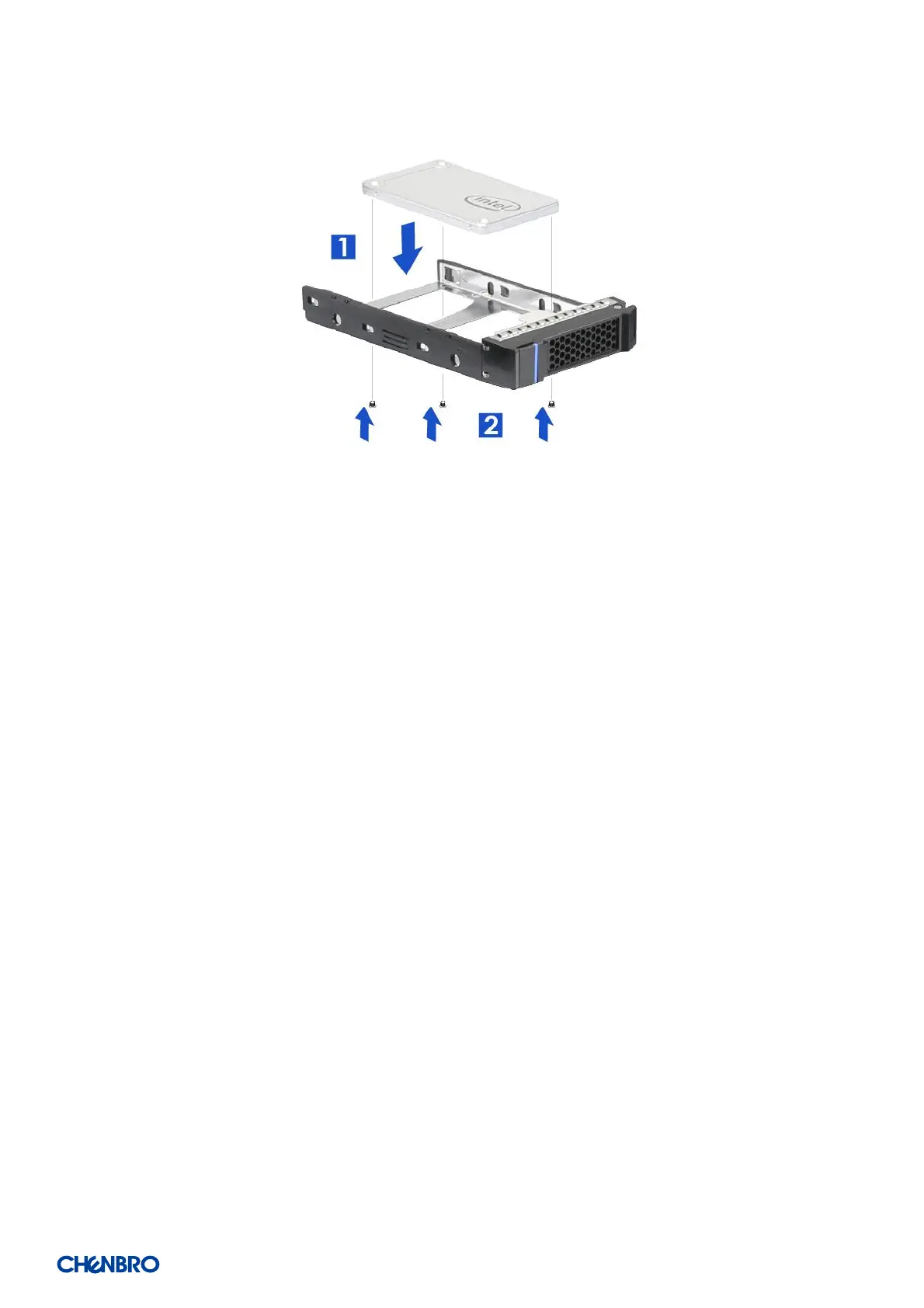

Figure 24 2.5” SSD installation (screw type)
1. Align front HDD with the anchor point on the carrier.
2. Assemble 2.5” SSD into the carrier by three screws from the bottom as shown.
