SR209 Plus Series
│ 32
3-3 3.5” 12Gbps 4-Port SAS/SATA Backplane
Table 9 Backplane specifications

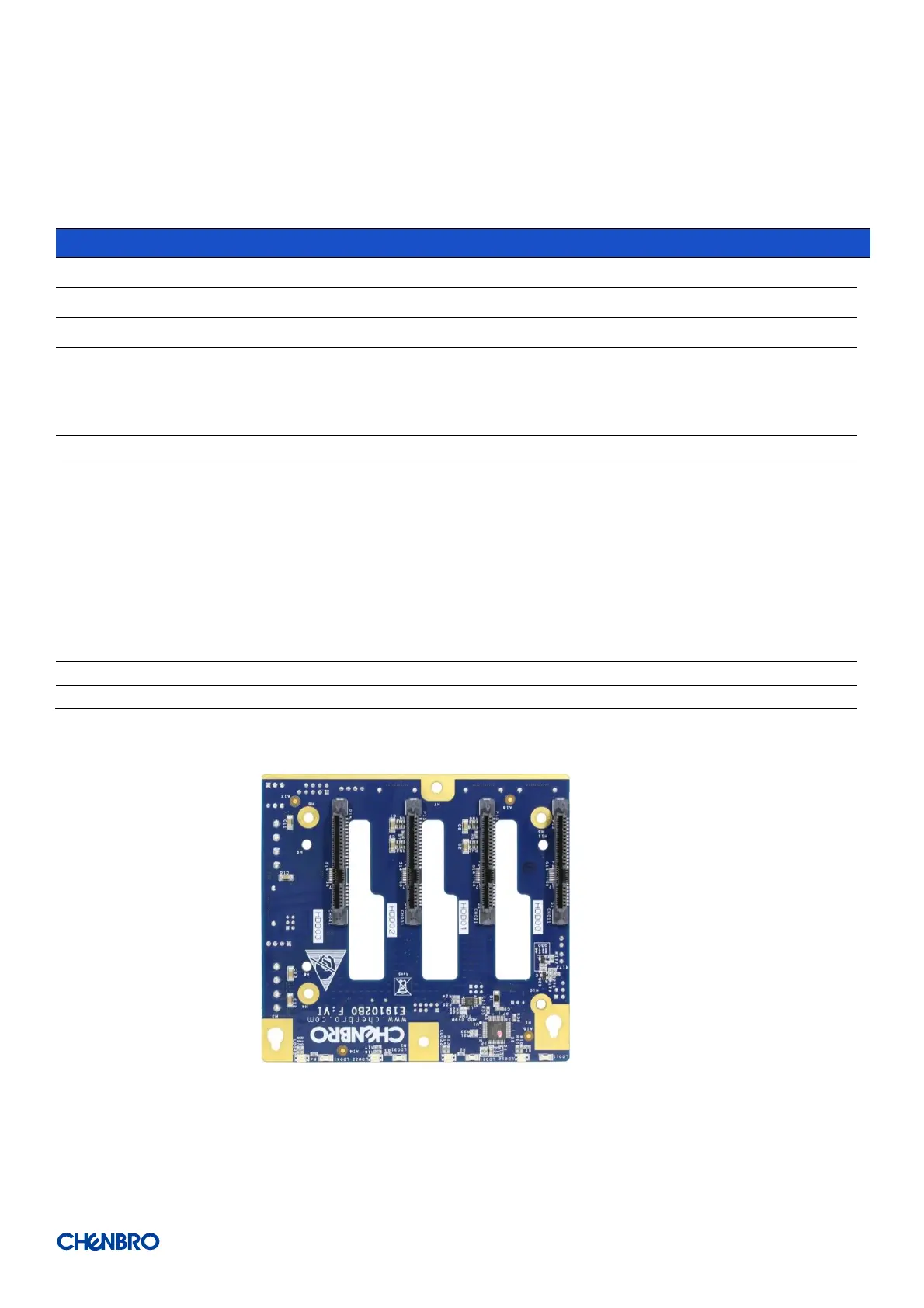

Figure 33 Backplane front view
A. HDD_00 C. HDD_02
B. HDD_01 D. HDD_03
Specification
Host Interface
7-pin SATA
HDD Interface
SFF-8680
Hot-Swap
Yes, allows users to replace devices online
Display
LED indicates storage device status
Power LED – Blue (Present)
Access LED – Green (Busy)
Error LED – Red (Error)
Environment Monitor
Temperature sensor TMP75
Connector
1. 4 x SATA
2. 4 x SAS29
3. 4 x Big 4P Power connectors for +5V, +12V from power supply
4. 1 x Pin Header 2.0 mm (1 x 3)
5. 1 x PIN Header 2.0 mm (2 x 3)
6. 1 x PIN Header 2.54 mm (2 x 3)
7. 1 x PIN Header 2.54 mm (2 x 5)
8. 1 x Wafer 2.5 mm (4P)
9. 2 x Wafer 2.54 mm (2P)
10. 1 x Wafer 2.54 mm (4P)
Dimension (D x W x H)
106.0 x 114.0 x 2.4 mm
Material
FR4 4 layers
