SR209 Plus Series
│ 26
2-7 Power Supply Installation

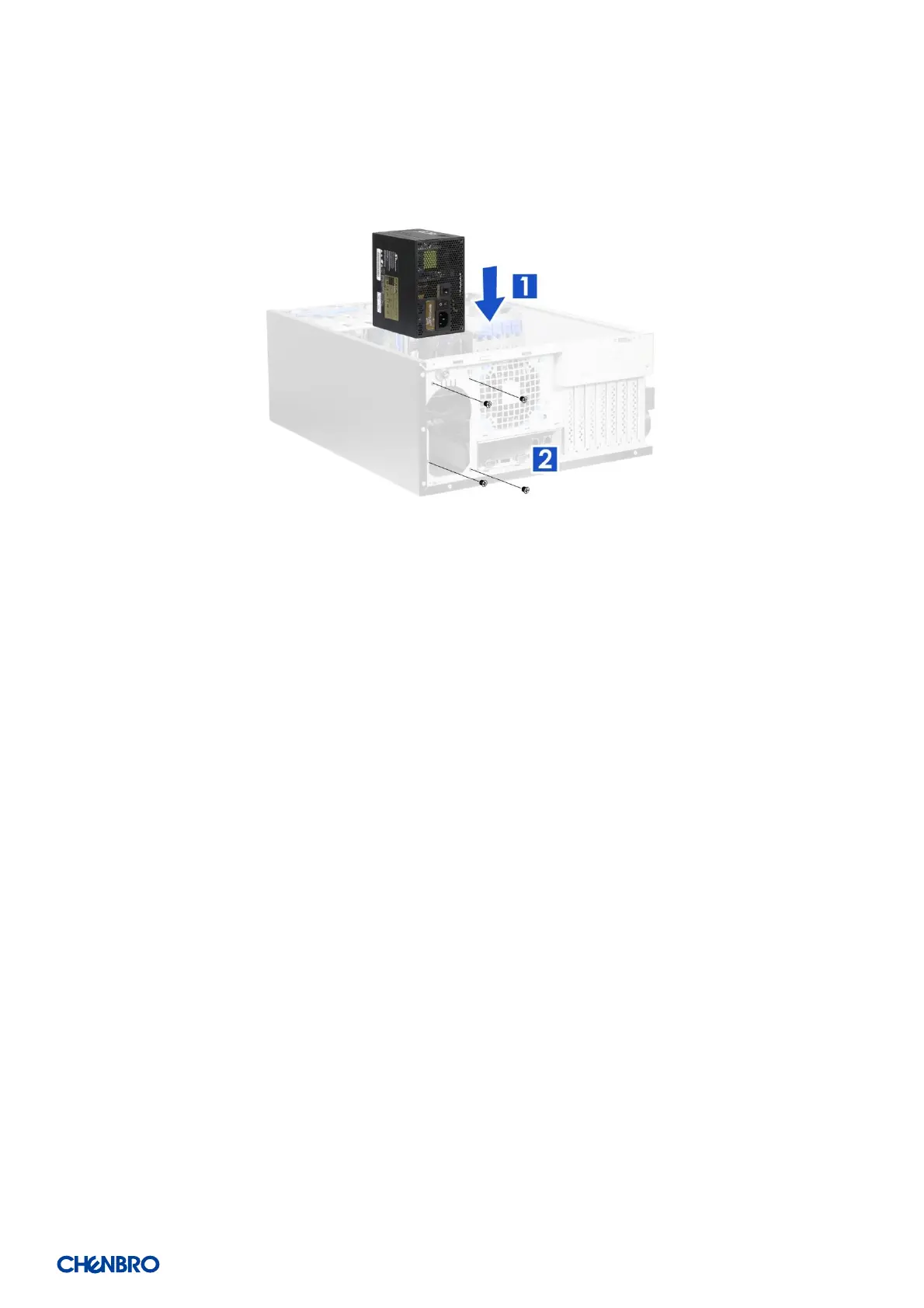

Figure 29 Single PSU installation
1. Place the PSU inside the chassis, and ensure the alignment for four screw holes of PSU and bracket of the chassis matched.
2. Secure the four screws as shown.
