3. Backplane
Each drive carrier includes separate LED indicators for drive activity and drive status. Light pipes integrated into the drive carrier direct
light emitted from the LEDs mounted next to each drive connector on the backplane to the drive carrier faceplate, making them
visible from the front of the system.

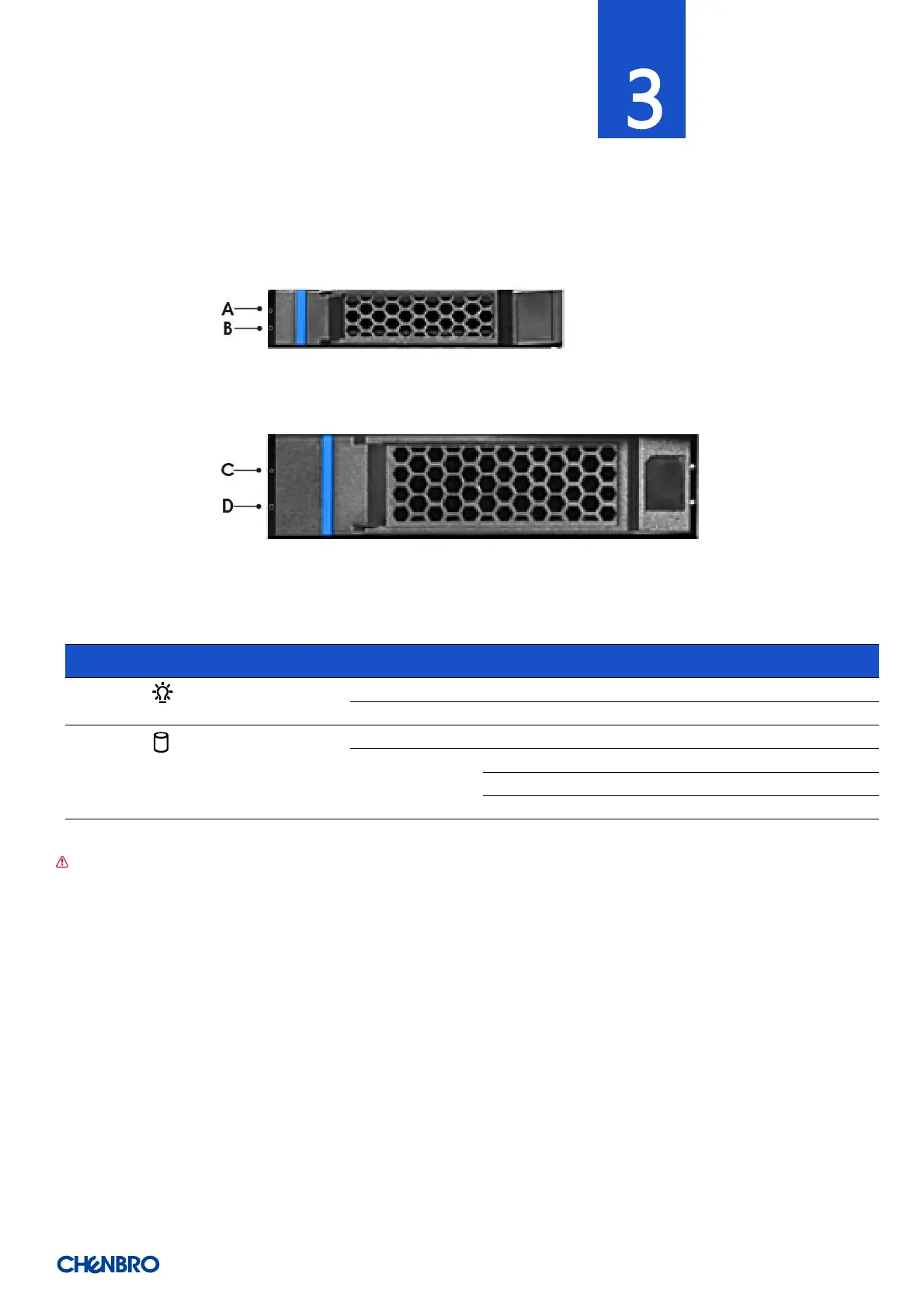

Figure 30 Drive carrier LED identification
Table 6 Drive power LED/activity LED behavior
LED
ICON
LED
Color
Behavior
Condition
A,C
Power LED
N/A
Stay off
Fault
Blue
Solid on
Present
B,D
Activity LED
Green
Solid on
Access
Red
Solid on
Failure
1Hz blink
Rebuild
4Hz blink
Locate
NOTE: The drive activity LED is driven by signals coming from the drive itself. Drive vendors may choose to operate the activity
LED differently from what is described in the table above. Should the activity LED on a given drive type behave differently than
what is described, customers should take the drive vendor specifications as a reference for the specific drive model to determine
what the expected drive activity LED operation should be.
