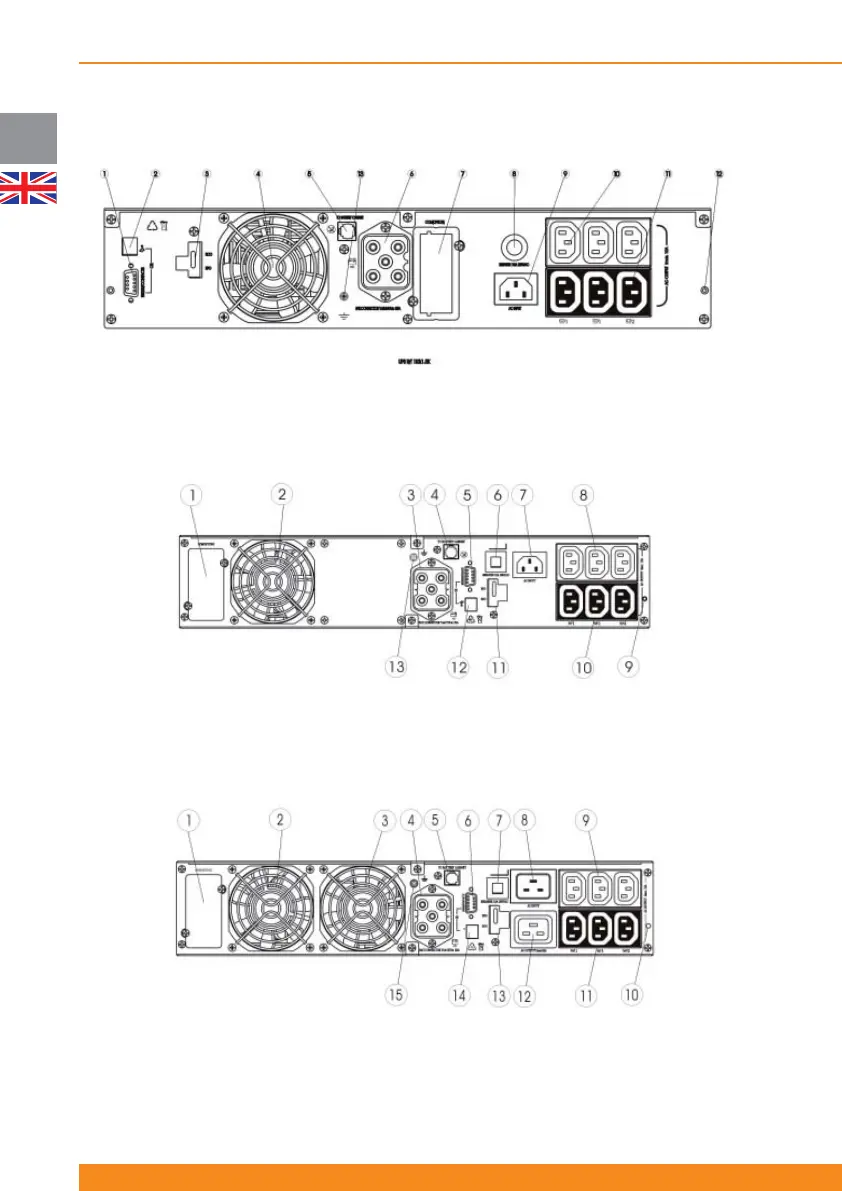

1. RS232 port
2. USB port
3. ROO/RPO terminals
4. Fan
5. RJ11 port for battery pack detection
cable
6. External battery pack connector
7. SNMP slot
8. Input circuit breaker
9. Input power socket
10. Not controllable output sockets
11. Controllable outlets (2 groups)
12. Fixing point for sliding rail
13. Earth screw
4.3.2 Rack/Tower units
Active 1000 RT and Active 1500 RT:
Active 2000 RT:
1. SNMP slot
2. Fan
3. External battery pack connector
4. RJ11 port for battery pack detection
cable
5. RS232 port
6. Input circuit breaker
7. Input power socket
8. Not controllable output sockets
9. Fixing point for sliding rail
10. Controllable outlets (2 groups)
11. ROO/RPO terminals
12. USB port
13. Earth screw
Active 3000 RT:
1. SNMP slot
2. Fan
3. Fan
4. External battery pack connector
5. RJ11 port for battery pack detection
cable
6. RS232 port
7. Input circuit breaker
8. Input power socket
9. 10Amps not controllable output
sockets
10. Fixing point for sliding rail
11. 10Amps controllable outlets (2
groups)
12. 16Amps output socket
13. ROO/RPO terminals
14. USB port
15. Earth screw
