Planning FLEX-AUGER® Feed Delivery System
12
MA1032F

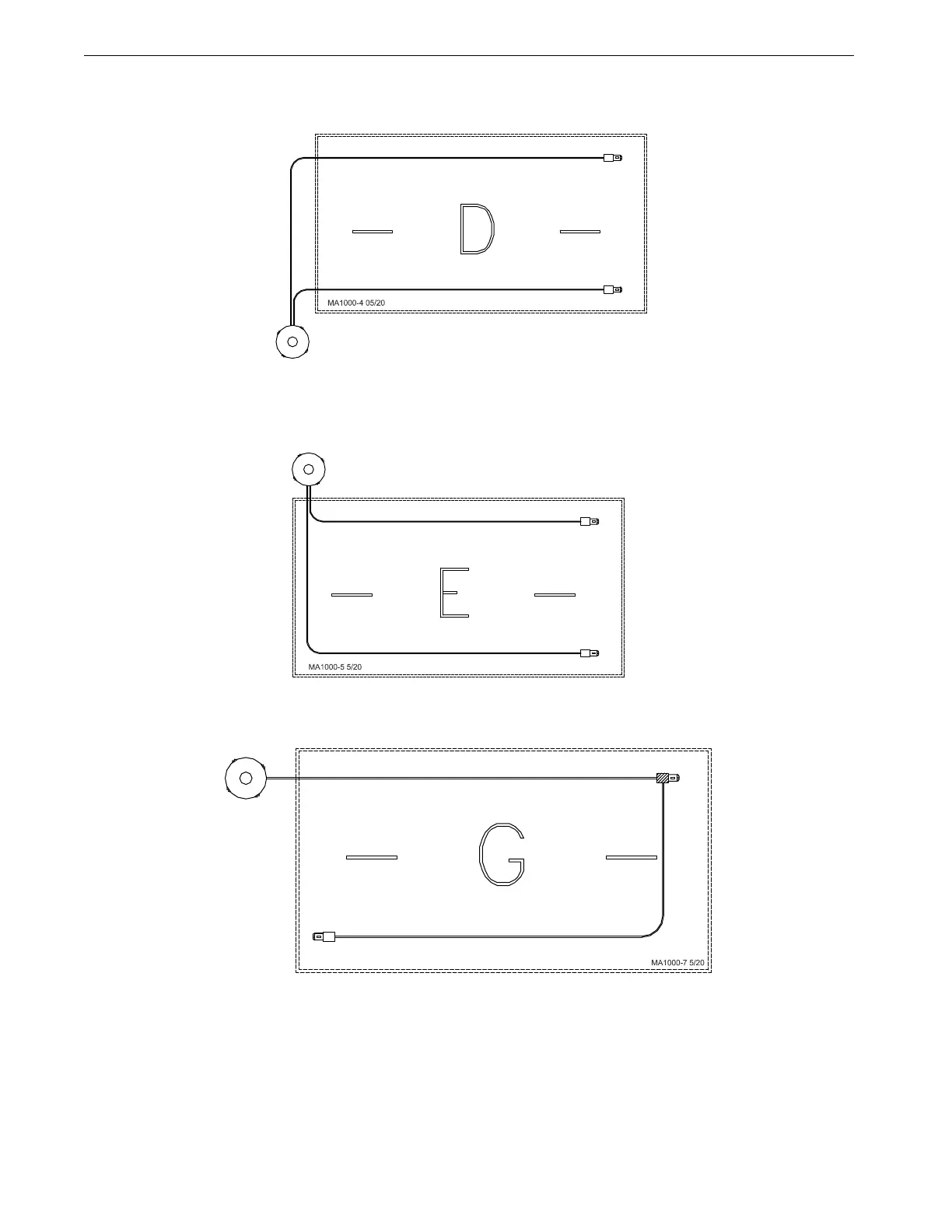

System D utilizes right-hand 90 degree turns. The elevations should be accomplished within the outside elbows.
This system would be recommended over system E since it eliminates additional elbows and left hand turns.
System E uses one additional 90 degree elbow after entering the building. Note that the elbows are left-hand turns.
This system would be improved if the feed bin was moved to the opposite side of the building to provide right-
hand turns instead.
System G represents an extended length system with one additional 90 degree elbow. This is acceptable, but
Systems C or D would be recommended (to reduce excessive run time). Optional equipment required.
