Chore-Time FLEX-AUGER 108 Installation Instruction

Wiring FLEX-AUGER® Feed Delivery System
32
MA1032F

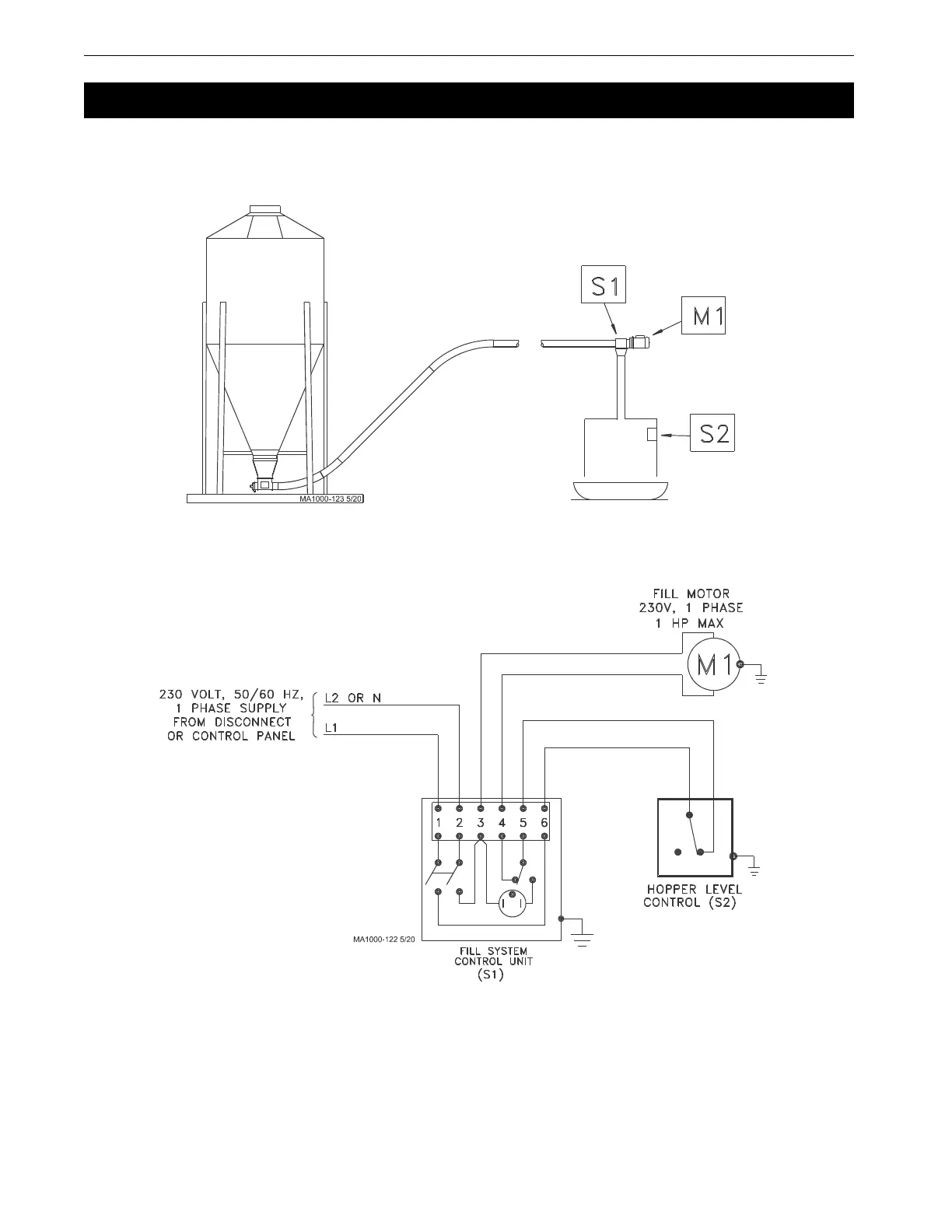

Electrical Component Location Diagrams
Single Boot Systems using a Hopper Level Control
Model 108 Systems using a Hopper Level Control Switch
(1 H.P. or smaller - Single Phase)
Wiring
Note: Use this graphic along with each of the wiring diagrams
in this manual to assist in determining switch, power unit, and
control unit locations.
Important: If an Agri-Time Time
Clock is to be used, refer to
MA1061 Instruction for control
wiring.
If an Auger Timer is to be used,
refer to MA951 Instruction for
control wiring.
Important: If system is to be controlled
by a Proximity Drop Tube Switch, refer to
MA1044 Instruction for switch wiring.
If the system is to be controlled by a
mechanical Drop Tube Switch, refer to
MA1099 Instruction for switch wiring.
