Planning
FLEX-AUGER® Feed Delivery System
16
MA1032
F

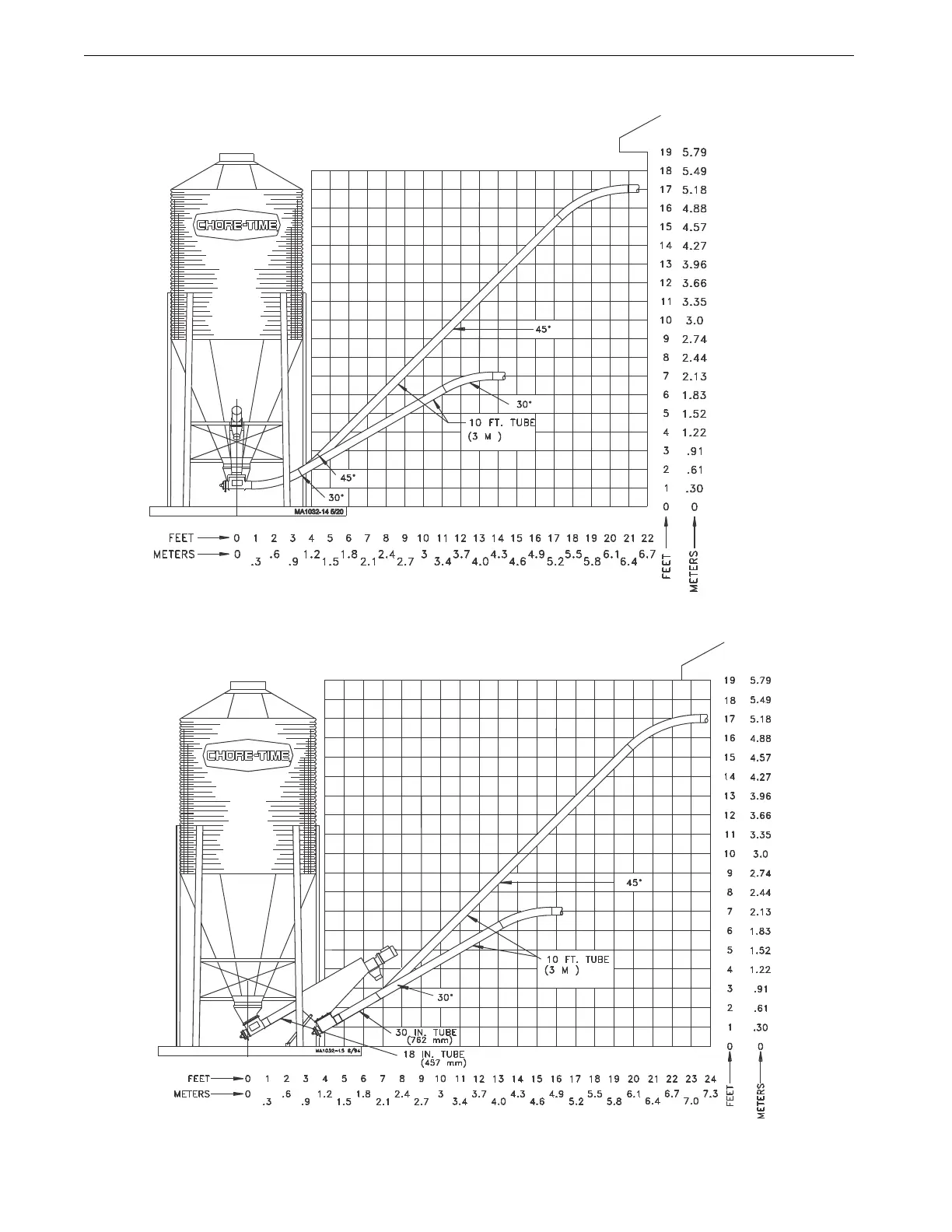

30° or Straight-Out Bin Boot with
Feed Screener
Boot Rotated 90°
30° Bin Boot with Feed Screener
15
17
Table of Contents
Default Chapter
2
Table of Contents
2
Limited Warranty
4
Safety and General Information
5
Follow Safety Instructions
5
Decal Descriptions
5
DANGER: Moving Auger
5
DANGER: Electrical Hazard
5
DANGER: Springing Auger
5
General Information
6
Tools Needed to Install Your Model 108 System Include
7
Capacities and Specifications of the Model 108 Feed Delivery System
7
Glossary of Terms
8
Planning the Model 108 Feed Delivery System
9
Planning
11
Systems Not Allowed
13
Model 108 bin Placement Chart
14
Model 108 bin Placement Chart (with In-Line or Rotated Screeners)
15
30° or Straight-Out bin Boot with Feed Screener Boot Rotated 90
16
30° bin Boot with Feed Screener
16
Straight-Out bin Boot with Feed Screener
17
Installation
18
Bin Location
18
Boot Installation
18
Auger Tube Installation
19
Outlet Drop Installation
20
Supporting the System Inside the Building
22
Supporting the System Outside the Building
23
Screeners
23
High Rise Auger Tube Support
23
Long Elevated Systems
24
Bin to bin Support Systems
24
Straight-Through Tandem Systems
24
Control Unit & Power Unit Installation
25
Belt Drive Control Unit Installation
26
Auger Installation
26
Cover Plate Installation
28
Auger Brazing
28
Restrictor Adjustment
29
Feed Level Control Installation
30
Types of Boot Installations
30
Straight-Through Tandem Boot Installation
30
PVC Straight-Through Tandem
30
Steel Straight-Through Tandem
31
Wiring
32
Electrical Component Location Diagrams
32
Single Boot Systems Using a Hopper Level Control
32
Model 108 Systems Using a Hopper Level Control Switch
32
Model 108 Systems Using a Hopper Level Control
33
Model 108 Systems Using a Hopper Level Control (Three Phase)
33
Operating Recommendations
34
Start-Up Procedure for New Systems
35
Parts Listing
36
Miscellaneous Line Components
36
Model 108 Drop Kit (Part No. 34358)
36
Power Units
37
Single Phase Direct Drive Control Unit (Part No. 6500-22)
38
Single Phase Belt Drive Control Unit (Part No. 6500-21)
39
Three Phase Direct Drive Control Unit (Part No. 25770-6)
41
Model 108 Boot Components
42
Model 108 Boot Components
43
Model 108 Boot Components (Continued)
44
Troubleshooting
45
Maintenance
47
Proximity Switch Adjustment Procedures
48
Cementing the PVC Auger Tube
49
Livestock and Poultry Feed Consumption
49
Poultry
49
Hogs
49
Dairy
49
Cementing the PVC Auger Tube
50
Livestock and Poultry Feed Consumption
50
Poultry
50
Hogs
50
Dairy
50
