Chore-Time FLEX-AUGER 108 Installation Instruction

Parts Listing FLEX-AUGER® Feed Delivery System
38
MA1032F

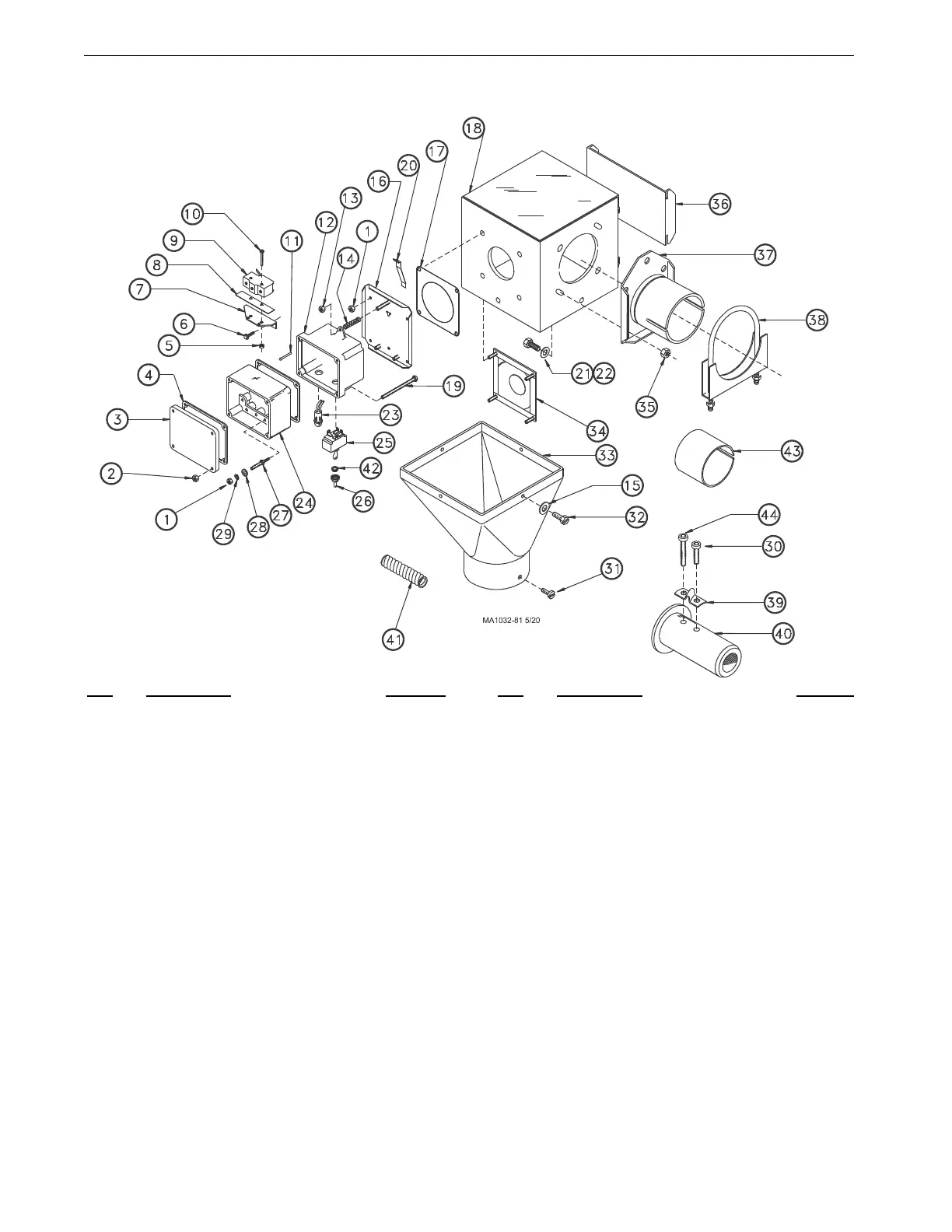

Single Phase Direct Drive Control Unit (Part No. 6500-22)
KEY DESCRIPTION PART NO.
1* 10-32 Hex Nut 4297
2* 8-32 Hex Nut 6519
3* Switch Box Cover 6776
4* Gasket 6777
5* 6-32 Hex Nut 771
6* 6x3/8 Washer Hd Screw 6782
7* Switch Bracket 7068
8* Switch Insulation 1907-5
9* Snap Switch 46091
10* 6-32 x 7/8 Rd Hd Mach. Screw 1921
11* Pin 8757
12* Switch Box 7909
13* 10-32 Hex Lock Nut 6963
14* Spring 6972
15 Washer 6723
16* Mounting Plate Assembly 7908
17 Seal 4873
18 Body Weldment 8276
19* 8-32 x 2-5/8 Hx Hd Mach. Screw 7230-1
20* Paddle 7896
21 5/16-18 x 1/2 Hx Hd Mach. Screw 1839
22 Flat Washer 546
23* Pilot Light 7044
24* Terminal Box 7774
25* Toggle Switch 7767
26* Toggle Switch Boot 13406
27* 10-32 Stud 7007
28* Cup Washer 5775
KEY
DESCRIPTION PART NO.
29* #10 Star Washer 305
30** 5/16-18 x 7/8 Socket Hd Cap Screw 6850-1
31 8 x 1/2 Sheet Metal Screw 6725
32 10-24 x 5/8 Slot Hx Hd Mach Screw 1876
33 Drop 13803
34 Diaphragm Assembly 7900
35 5/16-18 Hex Lock Nut 2148
36 Slide 5073
37 Tube Anchor 34543
38 Tube Clamp Kit 14373
39** Anchor Clamp 7703
40** Driver Weldment 30312
41 3/8" Flex Cable 26982-10
42* Shoulder Nut 13407
43 Tube Insert 34337
44** 5/16-18 x 2-3/4 Socket Hd Cap Screw 6850-2
- - Liquid Tight Connector 23810
*May be ordered as an assembly under Chore-Time Part No. 878
Switch Assembly.
**May be ordered as an assembly under Chore-Time Part No. 3031
Driver Assembly.
