Parts Listing FLEX-AUGER® Feed Delivery System
36
MA1032F
Miscellaneous Line Components

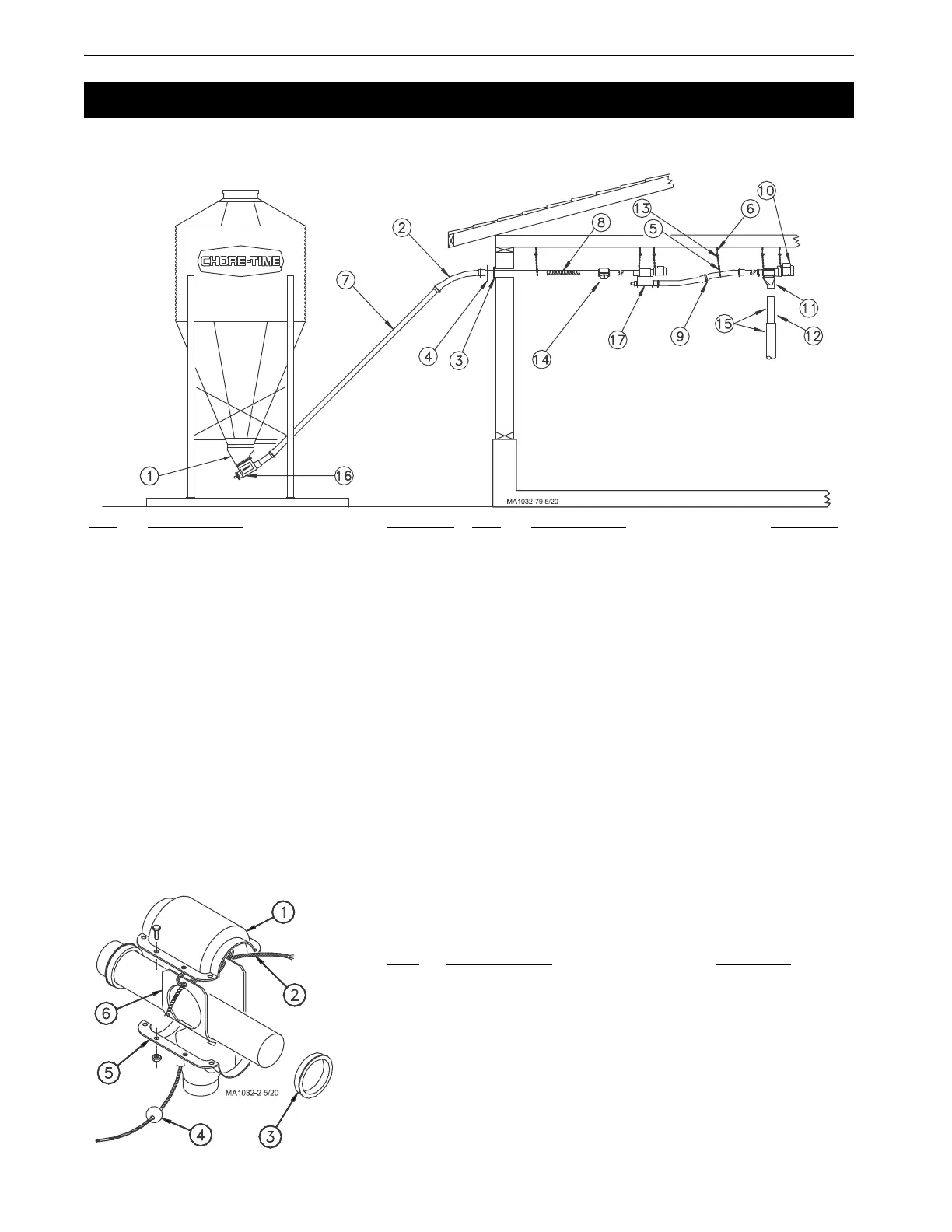

Model 108 Drop Kit (Part No. 34358)
Parts Listing
KEY DESCRIPTION PART NO.
1 Upper Boot (30 Degree) 4347R/C
Upper Boot (Straight-Out) 6093R/C
2 PVC Elbow, 45 Degree 34546
--Optional 15 Degree Hard. Steel Elbow34354
--Optional 45 Degree Hard. Steel Elbow34406
--Optional 30 Degree Hard. Steel Elbow34355
3 Neoprene Seal 34334
4 Seal Ring 8117
5 Chain 2128-100
6 Screw Hook 1214
7 10’ (3 m) PVC Tube 34547
10’ (3 m) Steel Tube 34411
8** Model 108 Auger 30108-0
9 Tube Clamp (for PVC systems) 14373
Tube Clamp (for steel systems) 34338
10 Power Unit See Individual Part Lists
KEY
DESCRIPTION PART NO.
11 Control Unit (Direct Drive) 46800-5
Control Unit (Belt Drive) 46800-15
Control Unit (Direct Drive, 3 Phs) 46800-10
12 Plastic Drop Tube 9900
13 S Hook 2805
14 Outlet Drop 34358
15 Telescoping Drop Tube 14366-9900
16 Lower Boot Assembly (30 Degree) 34336
Lower Boot Assembly (Straight-Out) 34341
17 Extension Boot Kit 47862-0
- - Connector w/clamps (for steel systems)34419
- - Connector (for steel systems) 30277
- - Tube Connector (for PVC systems) 34557
**Auger may be ordered in lengths from 20 ft. to 200 ft.
Ex. 30108-155 would be 155’ of auger.
KEY DESCRIPTION PART NO.
1 Drop Half (top) 13780
2 .150 Dia. Rope 3085
3 Ring Adapter (for PVC systems) 34630
Ring Adapter (for STEEL systems) 34360
4 Indicator Ball (red) 24393-1
Indicator Ball (green) 24393-2
5 Drop Half (bottom) 13781
6 Rotary Slide 34359
