Installation FLEX-AUGER® Feed Delivery System
24
MA1032F
Long Elevated Systems
Bin to Bin Support Systems
Straight-Through Tandem Systems
Key Description
1 5’ (1.5 m) for PVC Systems
10’ (3 m) for Steel Systems
2 Master Cable
3 Chain or Cable
4 20’ (6 m) Maximum

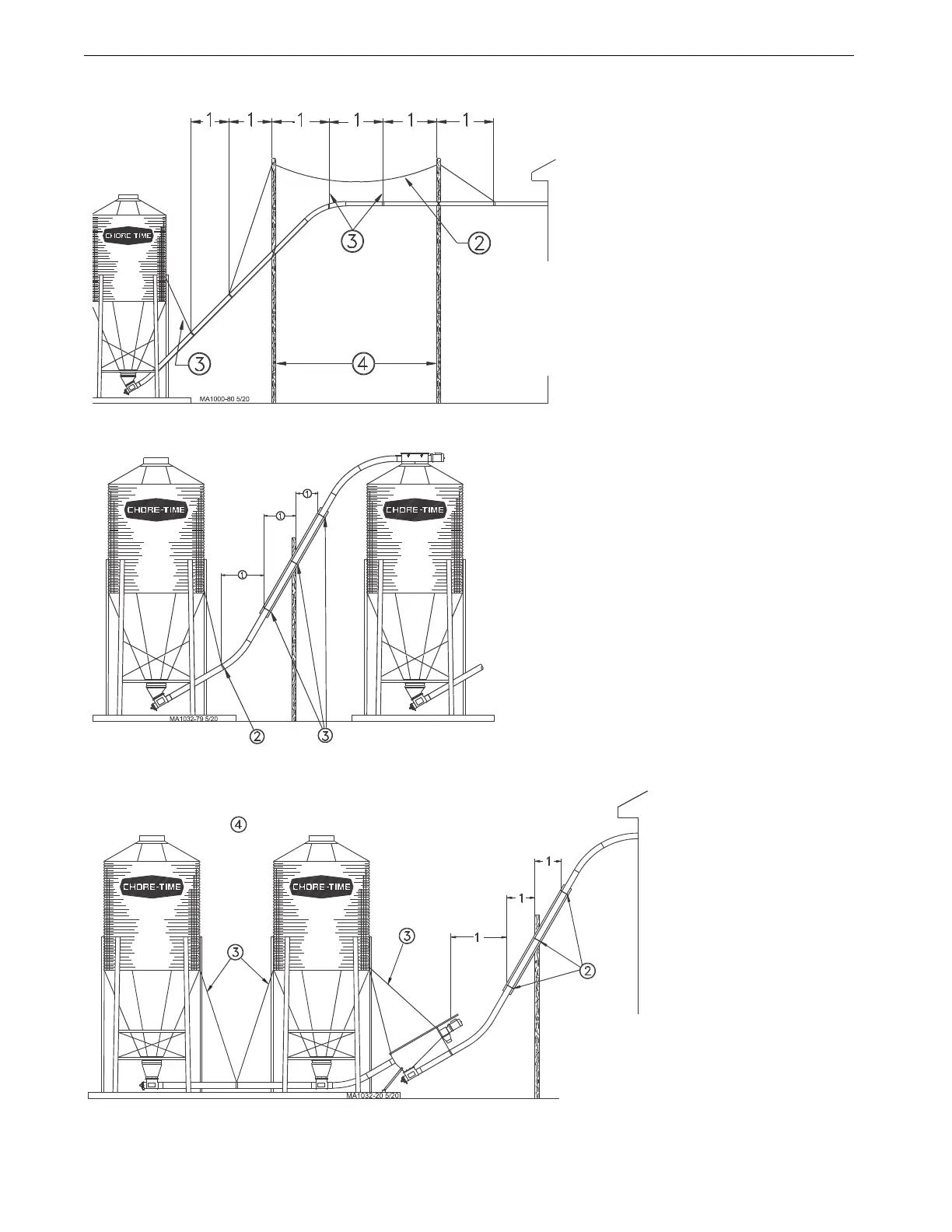

Figure 10.Long Elevated Systems
Key Description
1 5’ (1.5 m) for PVC Systems
10’ (3 m) for Steel Systems
2 Chain or Cable
3 Place clamps here.
Figure 11.Bin to Bin Support
Key Description
1 5’ (1.5 m) for PVC Systems
10’ (3 m) for Steel Systems
2 Place clamps here.
3 Chain or Cable
4 Tandem Feed Bins
Figure 12.Straight-Through Tandem Systems
