Chore-Time FLEX-AUGER 108 Installation Instruction

Parts Listing FLEX-AUGER® Feed Delivery System
44
MA1032F
Model 108 Boot Components (continued)
The Item numbers below are associated with the parts list drawing two pages prior.

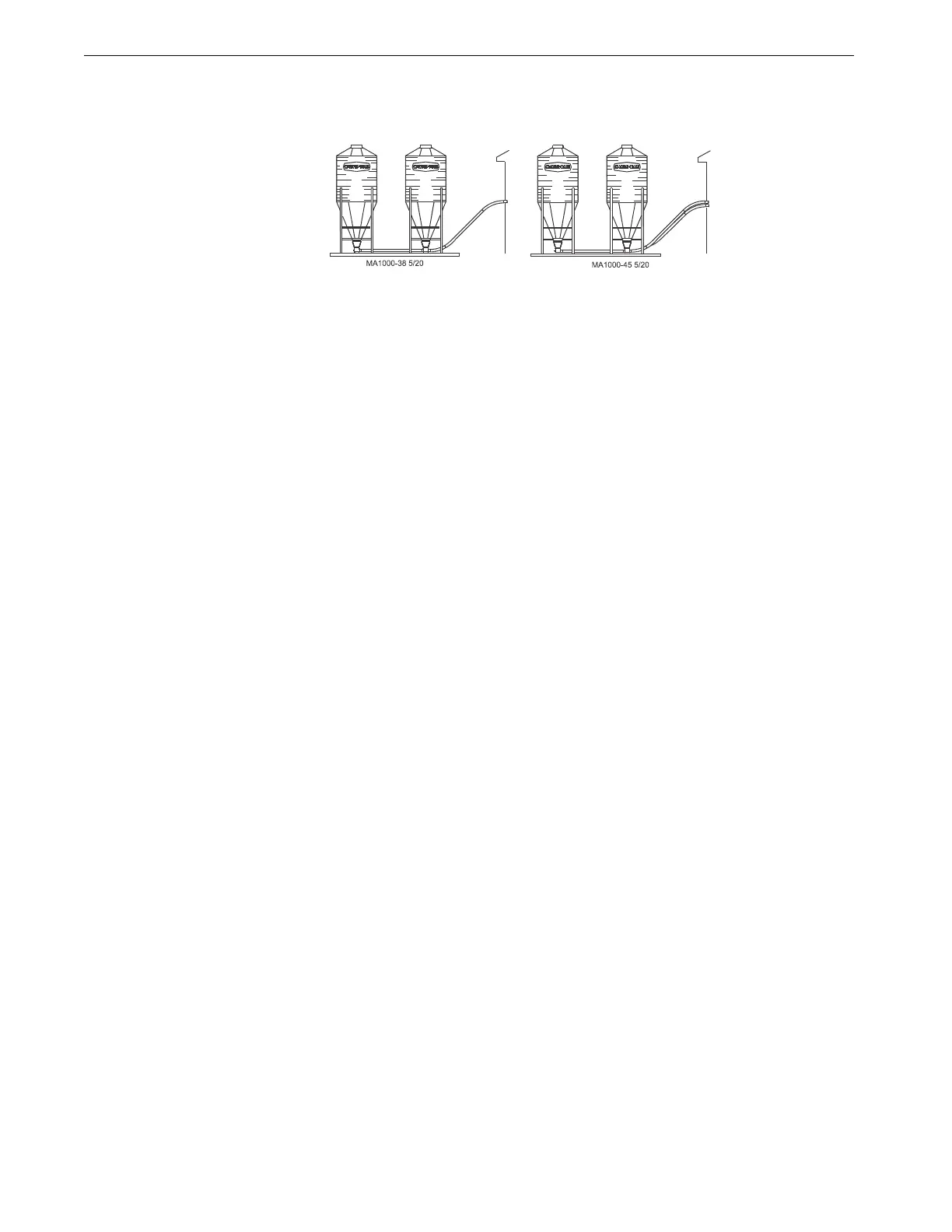

Straight-Thru Straight-Thru
Item Description Single Boot System Twin Boot System
-- Complete System 34333 35616
--
1
Straight-Out Lower Boot Assembly 34341 35612
--
2
Straight-Thru Lower Boot Assembly 34335 35611
1B Straight Out Upper Boot 6093R/C 6093R/C
2 Transfer Plate Assembly 4925 4925
3 Slide 4357 4357
4 Slide Shield 4876 4876
5 Chain 2128-250 2128-250
6 Ring 1706 1706
10 Tube Insert 34337 34337
11 Boot Body Weldment 30385 - - - -
18
3
Sealing Washer 39-20155 39-20155
19
3
5/16-18 Lock Nut 2148 2148
20 Baffle 14239 - - - -
21
3
Cover Weldment 6301 6301
22
3
Back Plate Assembly 6298 6294
30 Twin Boot Weldment - - - - 35617
31 Center Baffle Plate - - - 35624
32 Baffle Weldment - - - - 35615
1
Refer to the Straight-Out Boot Systems on for miscellaneous Straight-Out Lower Boot Assembly compo-
nents.See "Model 108 Boot Components" on page 42.
2
Items 2 through 32, as listed above, make up the Straight-Thru Lower Boot Assemblies.
3
These items may be ordered as an assembly under Chore-Time Part No. 6197.
