Address Settings
Dip Switch
Address # 12345
3 Off Off On On On
4 On On Off On On
5 Off On Off On On
6 -OffOffOnOn
7 Off Off Off On On
8 On On On Off On
9 Off On On Off On
10 On Off On Off On
11 Off Off - Off On
12 On On Off Off On
13 Off On Off Off On
14 On Off Off Off On
15 Off Off Off Off On
"X" is Dip switch in the On position

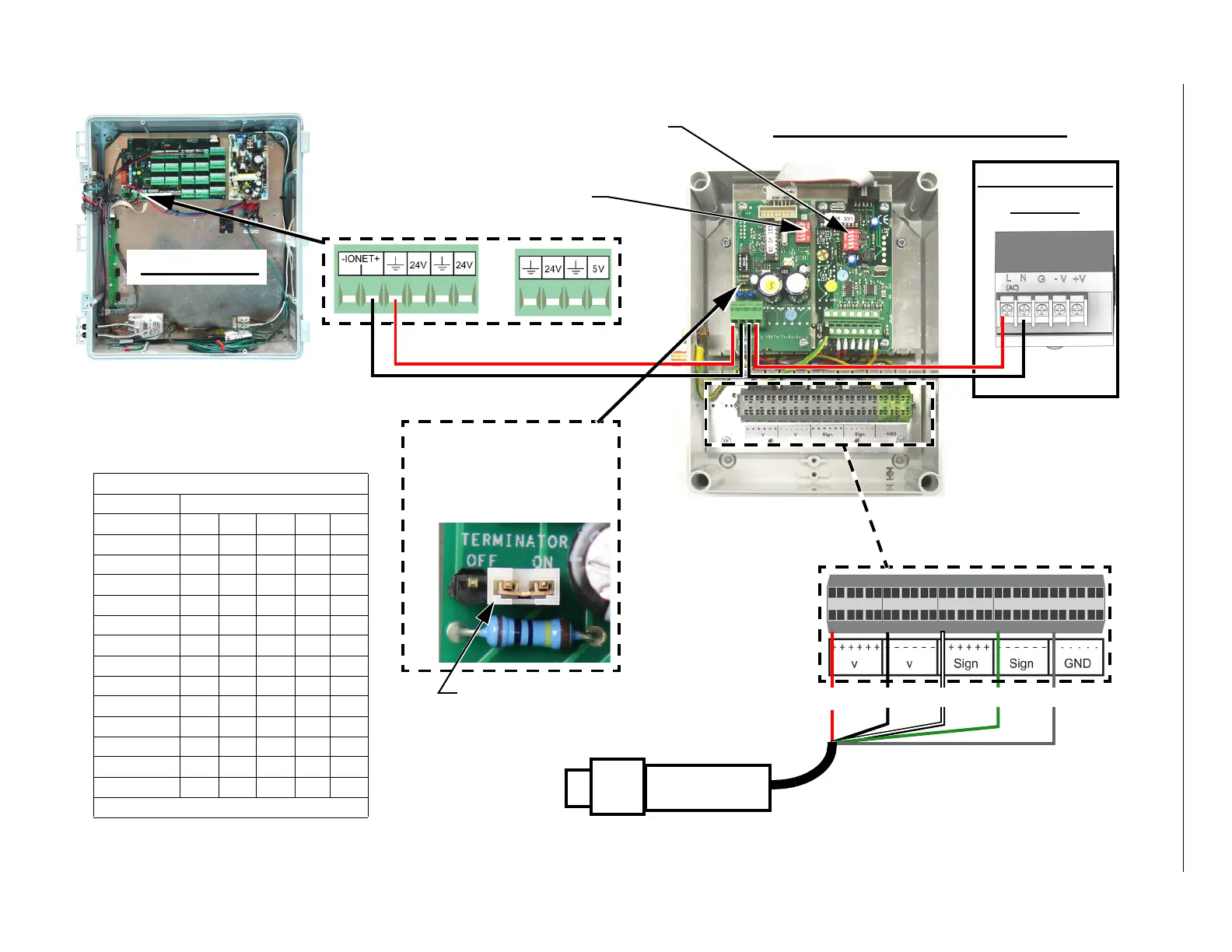

If the SJB is at the end
of the IO network, move
the IO end of the line
jumper to the ON pins.
Red Black White Green Shield
Load Cell
Connect Remaining Load Cells in the
same manner. Maximum of 8 Loadcells.
LCC Board Dip Switches all in the
"Off" position.
IO End of Line Jumper (On Position)
Set th I2I Board Dip Switches to one address
higher than the last IO address used.
CT3 Control
SJB (Scale Junction Box 40733)
24 Volt Supply
(55309)
To Next Page
