Control Setup Chore-Tronics® 3 Breeder Edition Control
18
MT2484A
Feeding System (Matrix)
Note: The Feeding System Matrix has to be setup after all Clock Outputs have been assigned and all Clocks have
been setup. See “Clocks Setup” on page 22
The Feeding System Screen allows the user to setup six different Feeding Systems. Clocks that are to be used in a
specific Feeding System are entered in the Matrix.
Important! It is very important to assign both the Male/Female choice, as well as the line number in this Screen.
Failure to do so could cause Clocks to follow the wrong schedule.

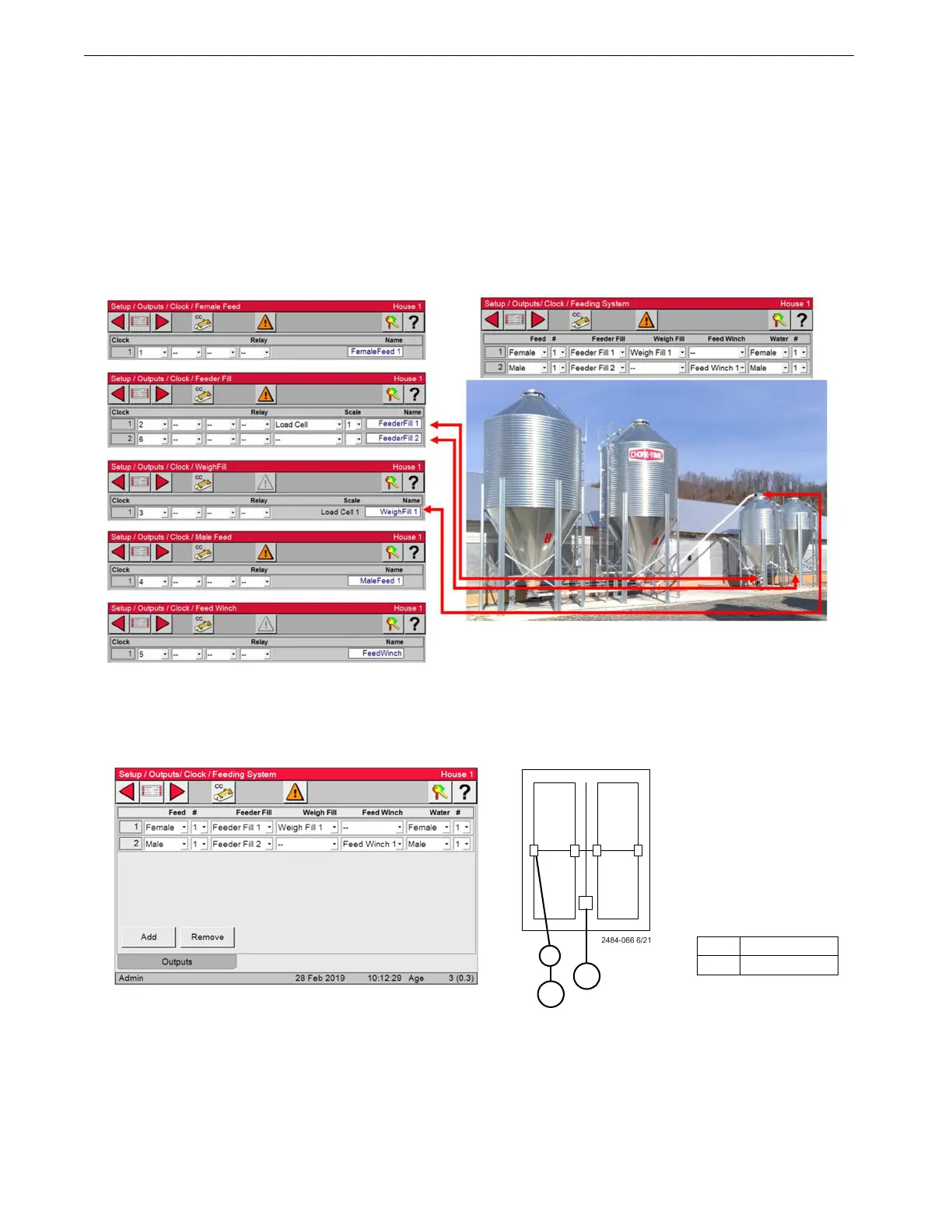

Feeding System Setup Examples
The examples to follow show how the Clocks are assigned and how the Feeding System Matrix would be setup.
W
S
"S" Supply Bin
"W" Weigh Bin
S
To Next Page
