Chore-Time Tronics 3 User Manual

Chore-Tronics® 3 Breeder Edition Control Wiring
MT2484A
35

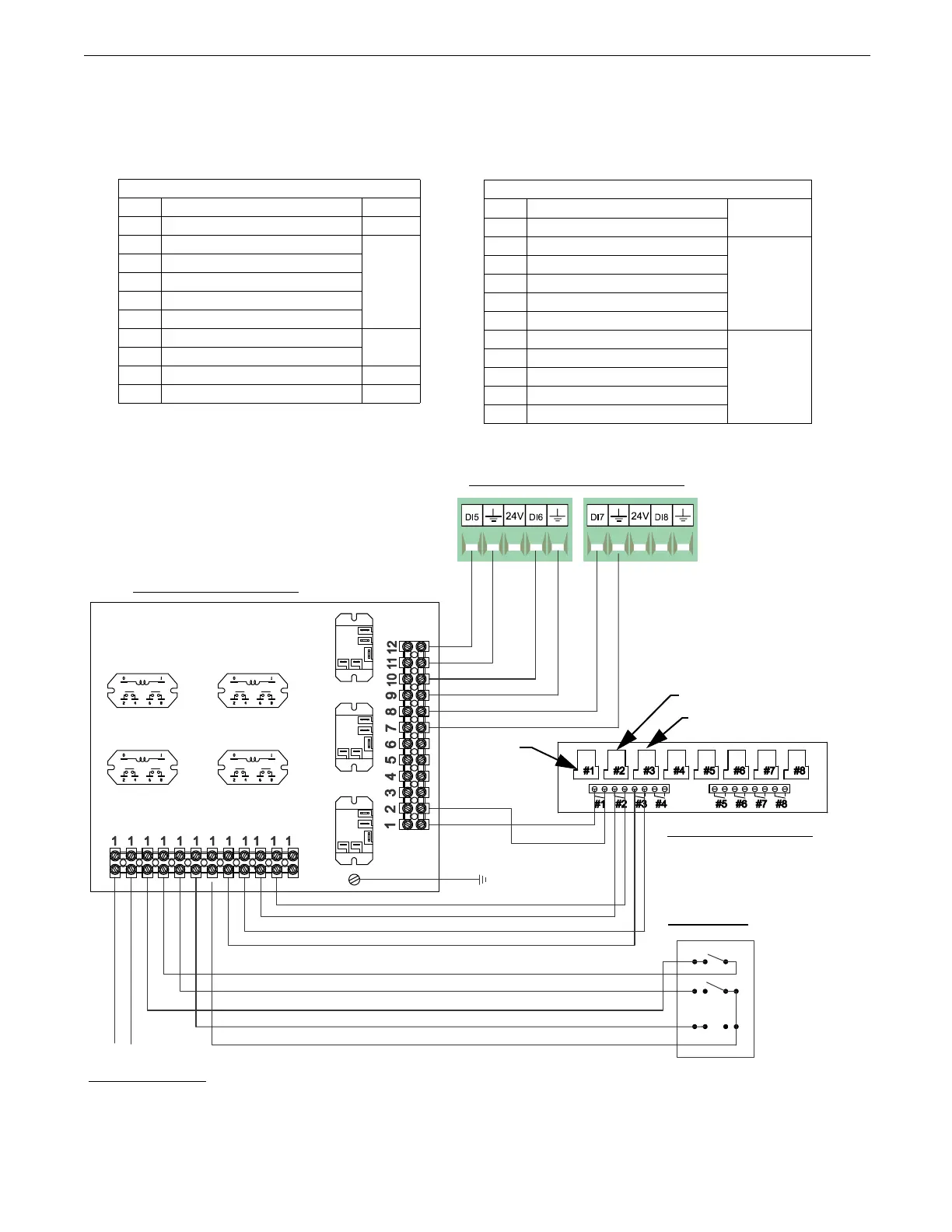

Wiring to Chore-Tronics Control and Weighmatic Scale
The three digital input terminals must be connected to the Chore-Tronics® 3 Controls using twisted pair wire (part
no. 42208). Failure to do so could result in improper operation of the feeding system.
Breeder Override Box
CT3 IO Board Digital Inputs
External Wiring Terminal 2
1 To Control Feeder Line Relay
2 From Control Feeder Line Relay
3
4
5
6
7 Upper Switch
8 Upper Switch C-Tronics
D1 Wiring
9Lower Switch
10 Lower Switch
11 Push Button
12 Push Button
External Wiring Terminal 1
1 L1 Supply
2 L2 Supply
3 Upper Switch Out Scale
Wiring
4 Upper Switch Return
5Lower Switch Return
6 Push Button Return
7 L1 Common
8 To Control (Feeder Fill Relay
9 From Control (Feeder Fill Relay)
10 To Weigh Fill Relay
11 From Weigh Fill Relay
CT2 Output Relays
Weigh Bin
L1
L2
240 Vac Supply
Feed
Clock
Relay
M. Scale Fill Relay (Weigh Fill)
Fill Clock Relay (Feeder Fill)
Ground
