Control Setup Chore-Tronics® 3 Breeder Edition Control
6
MT2484A
For the Following see the standard Chore-Tronic’s
®
3 Manual (MT2398).
•Temperature Sensors
•Static Pressure sensor (4-20 mA)
•Relative Humidity Sensor (0-10 volts)
•Potentiometer (Natural Ventilation)
Analog Inputs
Egg Room Relative Humidity Sensor

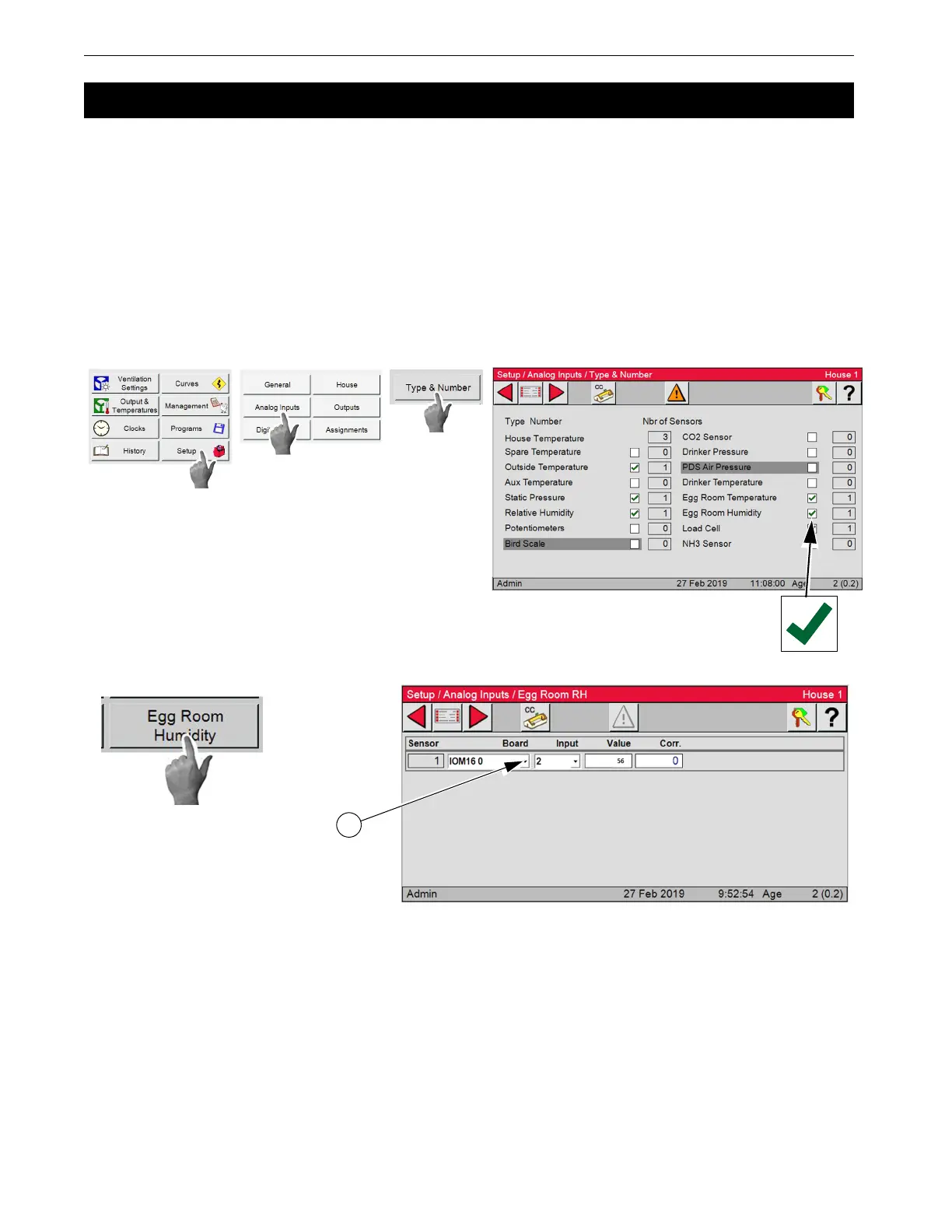

1.In the Setup/Analog/Type & Number screen check Egg Room Humidity.
2.See “Relative Humidity Sensor (RH) Wiring” on page 36.
1.Assign the Egg Room Relative Humidity Sensor to the Analog input you connected the sensor to.
Control Setup
