Chore-TronicsĀ® 3 Breeder Edition Co
ntrol
Control Setup
MT2484A
17
Feed Winch Clock (Male Feeder Winch)

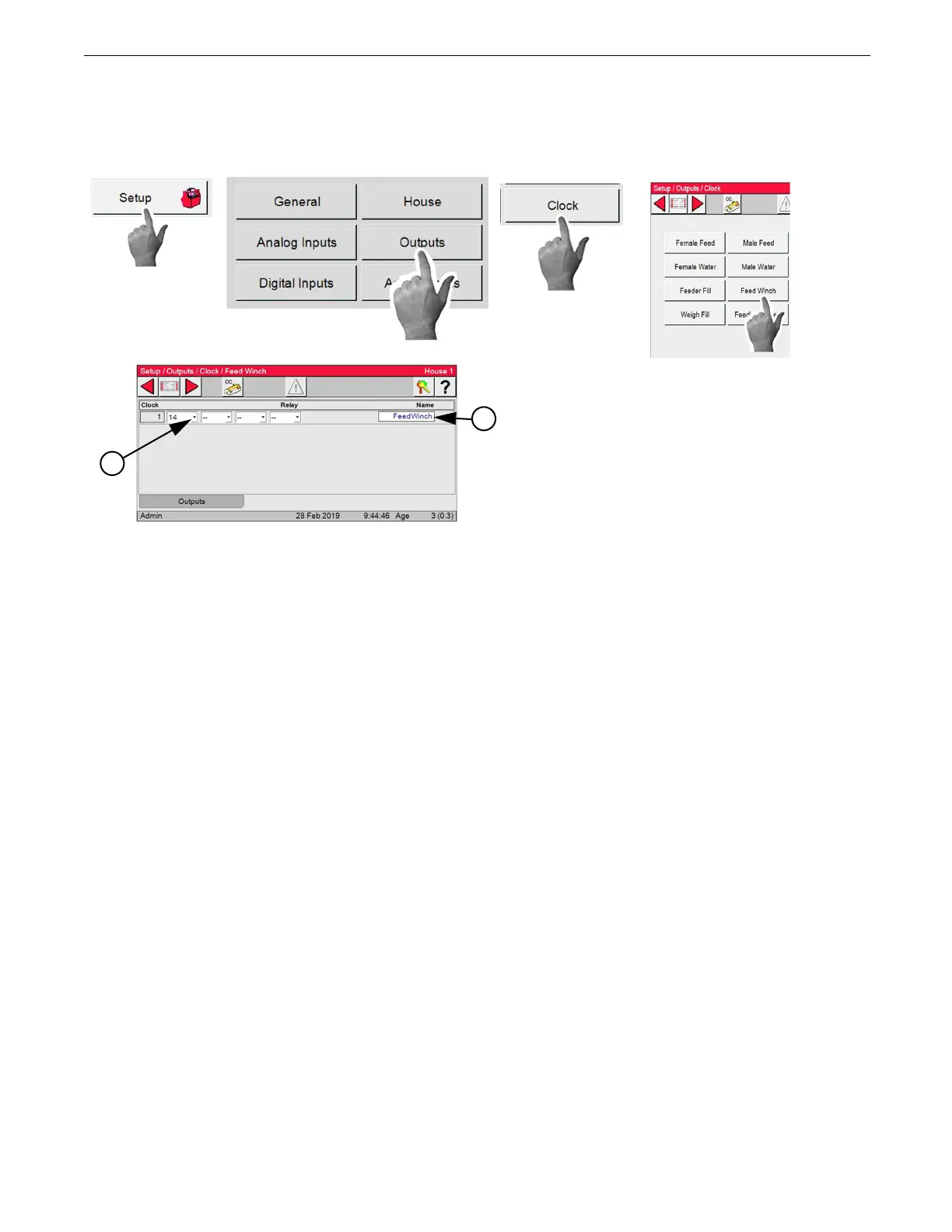

In the Setup/Outputs/Clock/Feed Winch Screen enter....
1.The Relay or Relays from the
dropdown.
2.Rename if needed.
Light Clock, Spare
Clock and PDS Clock
See the Chore-Tronics Manual to set
up the Light, Spare an
d PDS Clocks.
1
2
16
18
Table of Contents
Chore-Time Limited Warranty
2
Table of Contents
3
General
5
Support Information
5
Safety Information
5
Follow Safety Instructions
5
Decal Descriptions
5
DANGER: Electrical Hazard
5
Control Setup
6
Analog Inputs
6
Egg Room Relative Humidity Sensor
6
Egg Room Temperature Sensor
7
Temperature Sensor Analog Input Assignment
7
Feed bin Load Cells
8
Bintrac to Chore-Tronics Control Calibration
9
Bintrac Load Cell Calibration
9
Calibrating the Chore-Tronics Control
10
Chore-Time Load Cells
11
Calibration
11
Digital Inputs
12
Feed Scale Wiring (Dump Scale)
12
Mechanical Scale
13
Egg Counters
14
Outputs
15
Clocks Tab
15
Note: Four Output Relays Can be Assigned to each Clock
15
Feeding System (Matrix)
18
Feeding System Setup Examples
18
Output Setup Egg Room (Relative Humidity and Temp) Cooler and Humidity
21
Clocks Setup
22
Management Screens
26
Mortality
26
Feed
27
Inventory
28
Egg
28
History Screens
30
Environment
30
Production
30
Wiring
32
Bintrac to Chore-Tronics Control Wiring
32
Backup Egg Room Cooler Wiring
33
Backup Egg Room Humidifier Wiring
33
Chore-Time Load Cell Wiring
34
Wiring to Chore-Tronics Control and Weighmatic Scale
35
Relative Humidity Sensor (RH) Wiring
36
Temperature Sensor Wiring
36
Alarms
37
Egg Room Alarm
37
Preset Not Met Alarm
37
Current Conditions
37
Todays Feed
37
