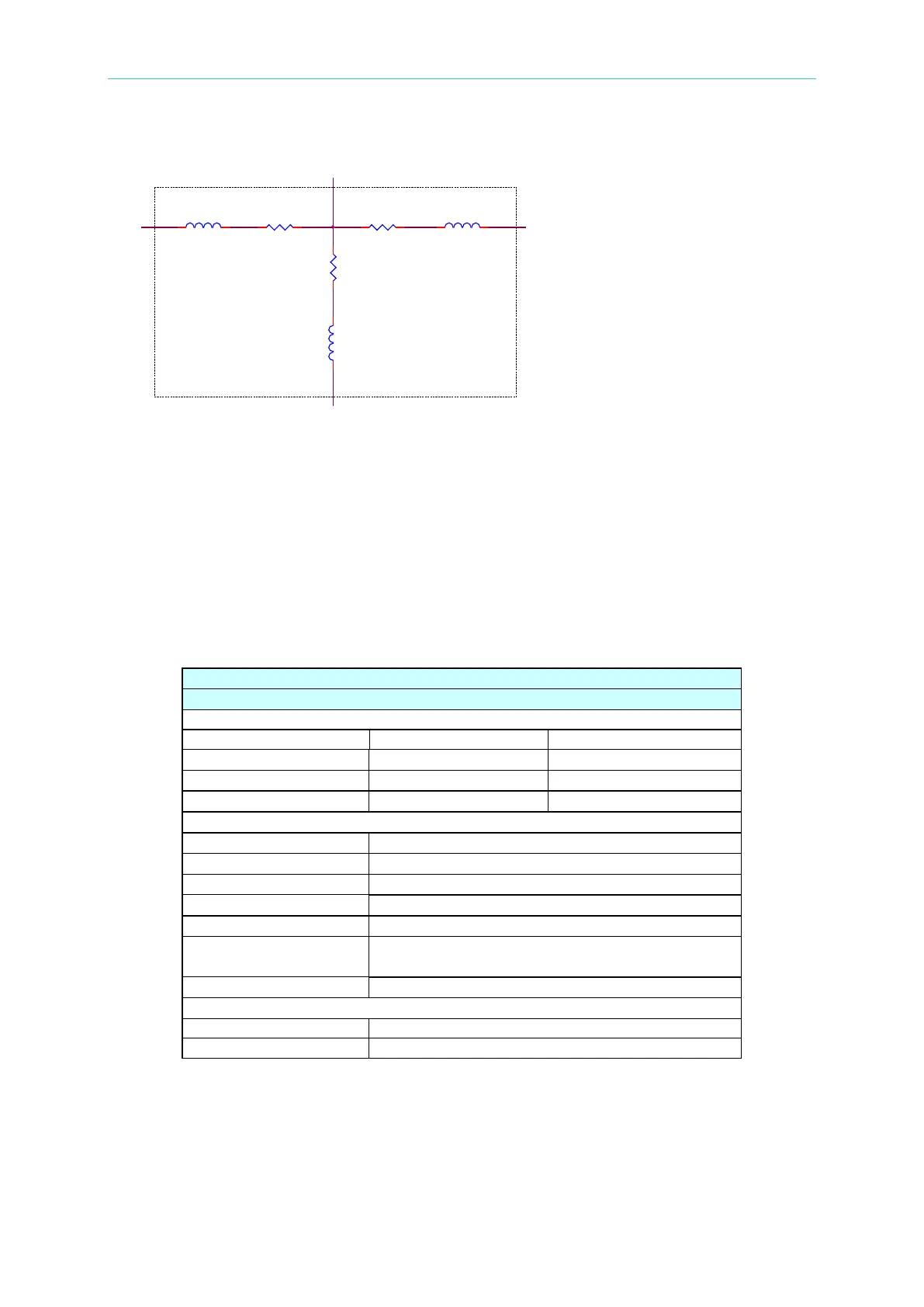

Fan/Motor Equivalent Circuit
The 16502 Millohm Meter provides control signal and power to R Scanner via Handler
interface. To transmit /EXT, PASS and FAIL signals by using Handler interface to connect with
User Automatic Machine.
The output signals of D-, S-, D+ and S+ in the 16502 Millohm Meter can be connected to the
pins set for measuring the setting equivalent resistance through R Scanner.
9.2 R Scanner Specification
Main Function
16502 R Scanner Test Fixture
Measurement Time (For three DCRs)
Speed
Temp AUTO
Temp OFF
Fast
60ms
40ms
Medium
120ms
95ms
Slow
550ms
430ms
Electrical Specifications
Measure Method
Four-terminals testing
Scan Number
1~3
Collocation Number
6(1-2,1-3,1-4,2-3,2-4,3-4)
Fixture rated Watt
<1.1W(max)
Fixture Rated Current
1A dc
Test Terminal
Connection Cable
24 pins Handler, 24 pins Handler
—
9 pins D-SUB
x1
Interface
Handler Bus
Mechanical Specifications
Screw size
M3x6x2
Size (W x H x D)
117mm x 66mm x 37mm
R2
R3
P2
FAN / MOTOR
Equivalent Circuit
P3
P1
P4
R1
L3
L2
L1
