Electrical Safety Analyzer 19032-P Quick Start Guide
38
RL8
1 2
RL3
1 2
RL2
1 2
RL4
1 2
RL5
1 2
RL7
1 2
RL6
1 2
DRIVE+
SENSE+ SENSE+
SENSE-SENSE-
DRIVE-
HV2HV2
DRIVE-
DRIVE+
1
HV1HV1
RL1
1 2
High voltage
output on
rear panel
GB output
on rear
panel
High voltage
output on
front panel
GB output
on front
panel

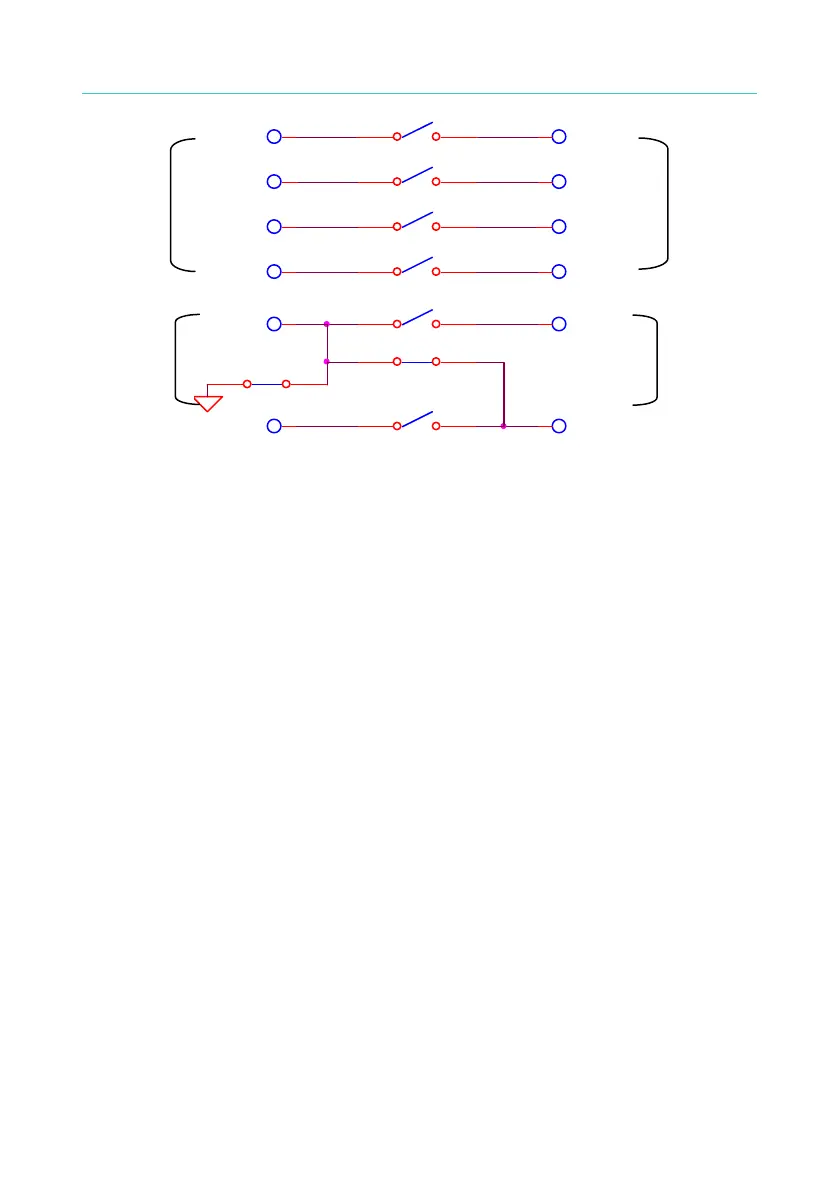

Figure 4-16
(b) End test: HV1 terminal on rear panel and HV2 terminal on front
panel are also short-circuited. When [STOP] key is pressed, HV1
terminal on rear panel and HV2 terminal on front panel are
open-circuited. DRIVE, SENSE terminals on front panel are
short-circuited with DRIVE, SENSE terminals on rear panel.
(3) When set CHANNEL 3 as ¯(disable):
(a) HV1 terminal on rear panel and that on front panel are
open-circuited. HV2 terminal on rear panel and that on front panel
are short-circuited.
(b) DRIVE and SENSE terminals on front panel are short-circuited with
DRIVE, SENSE terminals on rear panel as below Figure 4-17
shown(GFI=ON).
