CIGWELD Transmig 310 - Installation - Mains Supply Voltage Requirements

Transmig 210, 250, 310, 330
DOC No: MIGTRN0001 Page 13 of 31
Issue No: 2 Date: 14/09/98
Transmig
Mains
Supply Lead
Size
Lead
Current
Rating
Lead
Length
Machine
Voltage
Setting
Duty Cycle
210 1.5mm
2
16 Amps 3 metre 240 Volt 210A @ 25%
250 1.5mm
2
16 Amps 3 metre 240 Volt 184A @ 25%
310 1mm
2
12 Amps 3.7 metre 415/440 Volt 310A @ 30%
330 1mm
2
12 Amps 3.7 metre 415/440 Volt 330A @ 30%

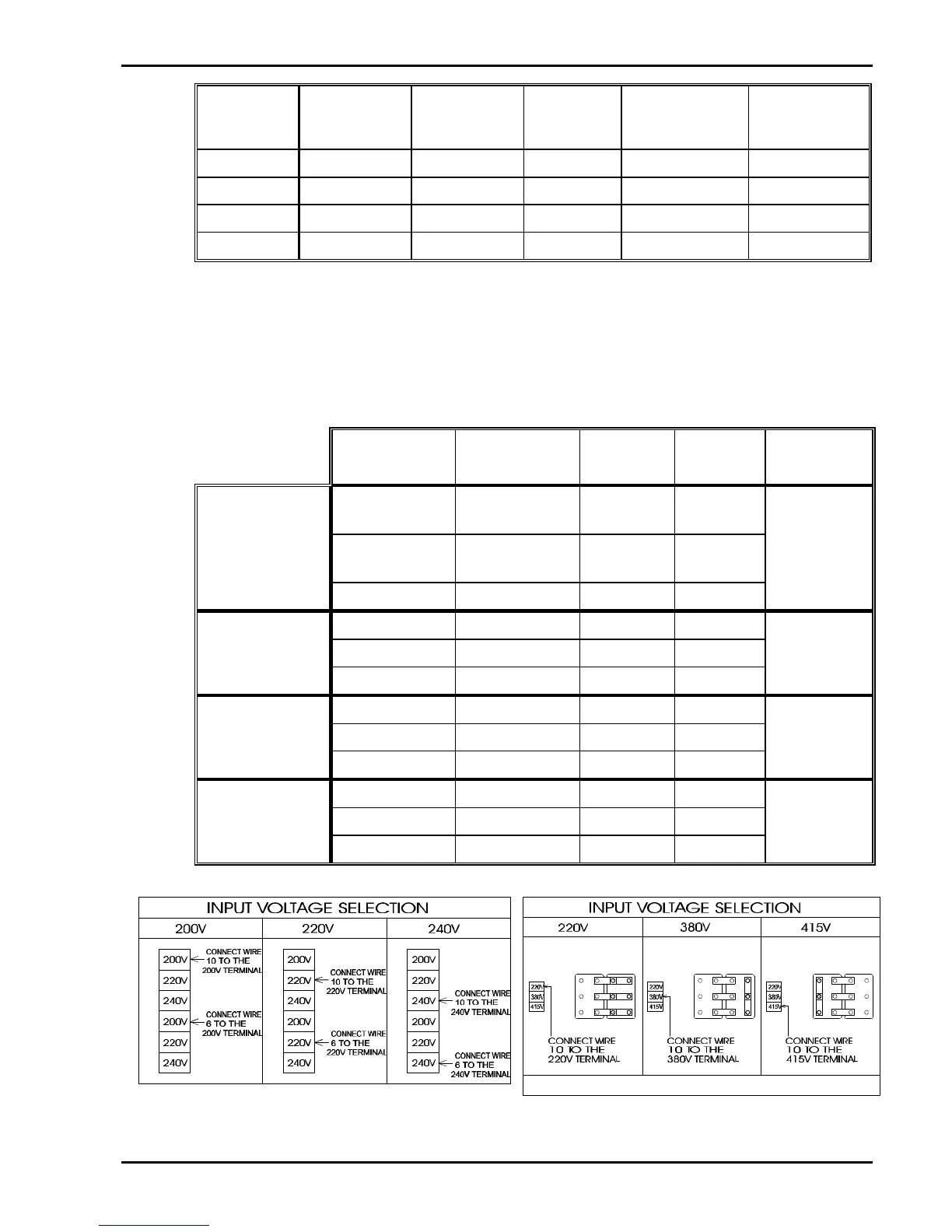

Table 1 - Factory fitted Mains supply leads fitted to the Transmig Power Sources
CAUTION 2:The Transmig Mains supply leads should be replaced with leads as specified in Table
2 when the Transmigs Mains supply voltage is changed or when it is plugged into a
higher rated Mains outlet.
3.5 Alternative Mains Supply Voltage Requirements
The Power Sources are suitable for the following Mains supply voltages:
Mains Supply
Voltage Setting
Mains Supply
Lead Size
Mains
Outlet Size
Fuse Size Machines
Duty Cycle
Export Model
Only
200 Volt 4mm
2
25 Amp ª 50 Amp
Export Model
Only
220 Volt 4mm
2
25 Amp ª 50 Amp210A @ 36%
Transmig 210 240 Volt 2.5mm
2
20 Amp ª 40 Amp
200 Volt 6mm
2
30 Amp ª 60 Amp
Transmig 250 220 Volt 6mm
2
30 Amp ª 60 Amp250A @ 25%
See Figure 2 240 Volt 4mm
2
25 Amp ª 50 Amp
220 Volt 2.5mm
2
20 Amp ª 40 Amp
Transmig 310 380 Volt 1.5mm
2
15 Amp ª 20 Amp310A @ 30%
See Figure 3 415/440 Volt 1mm
2
15 Amp ª 20 Amp
220 Volt 2.5mm
2
20 Amp ª 40 Amp
Transmig 330 380 Volt 1.5mm
2
15 Amp ª 20 Amp330A @ 30%
See Figure 3 415/440 Volt 1mm
2
15 Amp ª 20 Amp
Table 2 - Mains supply lead sizes for alternative Mains supply voltages
Figure 2 - Voltage settings for Transmig 210/250 Figure 3 - Voltage settings for Transmig 310/330
