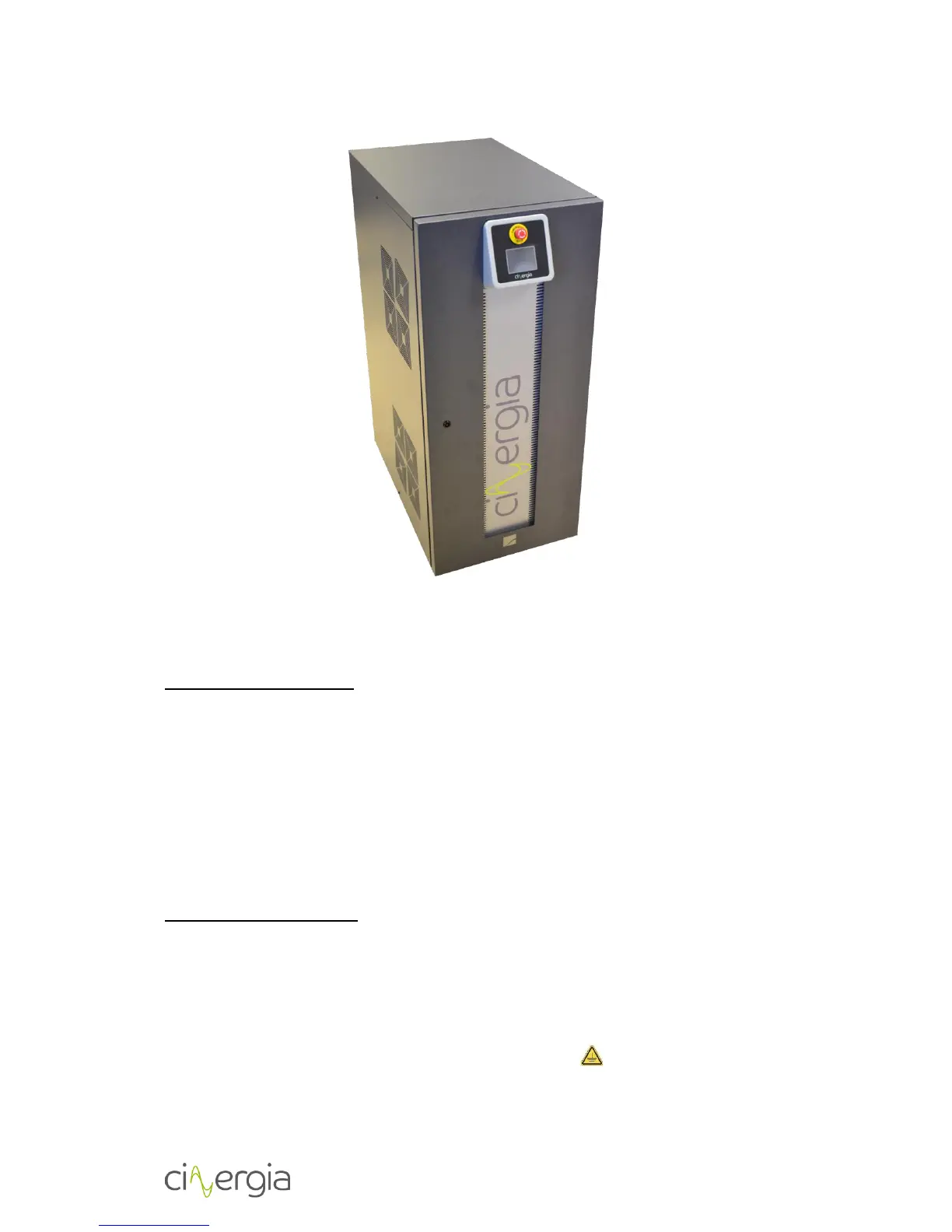

General view (with the front door closed):
Protection elements (Q*):
 (Q1a) Input thermal-magnetic circuit breaker or disconnector according to power of
the equipment
 (Q2) Output disconnector
 (Q3) Output fuses
 (Q5) Parallel connection switch
 (Q7) Isolation detector (which is inside the cabinet and it is optional)
 (Q8) Bipolar/unipolar switch
Connection elements (X*):
 (X1) Phase input terminal R.
 (X2) Phase input terminal S.
 (X3) Phase input terminal T.
 (X4) Neutral input terminal N.
 (X5) Earth connection terminal for main supply input ( ).
 (X6) Phase output terminal U.
 (X7) Phase output terminal V.
