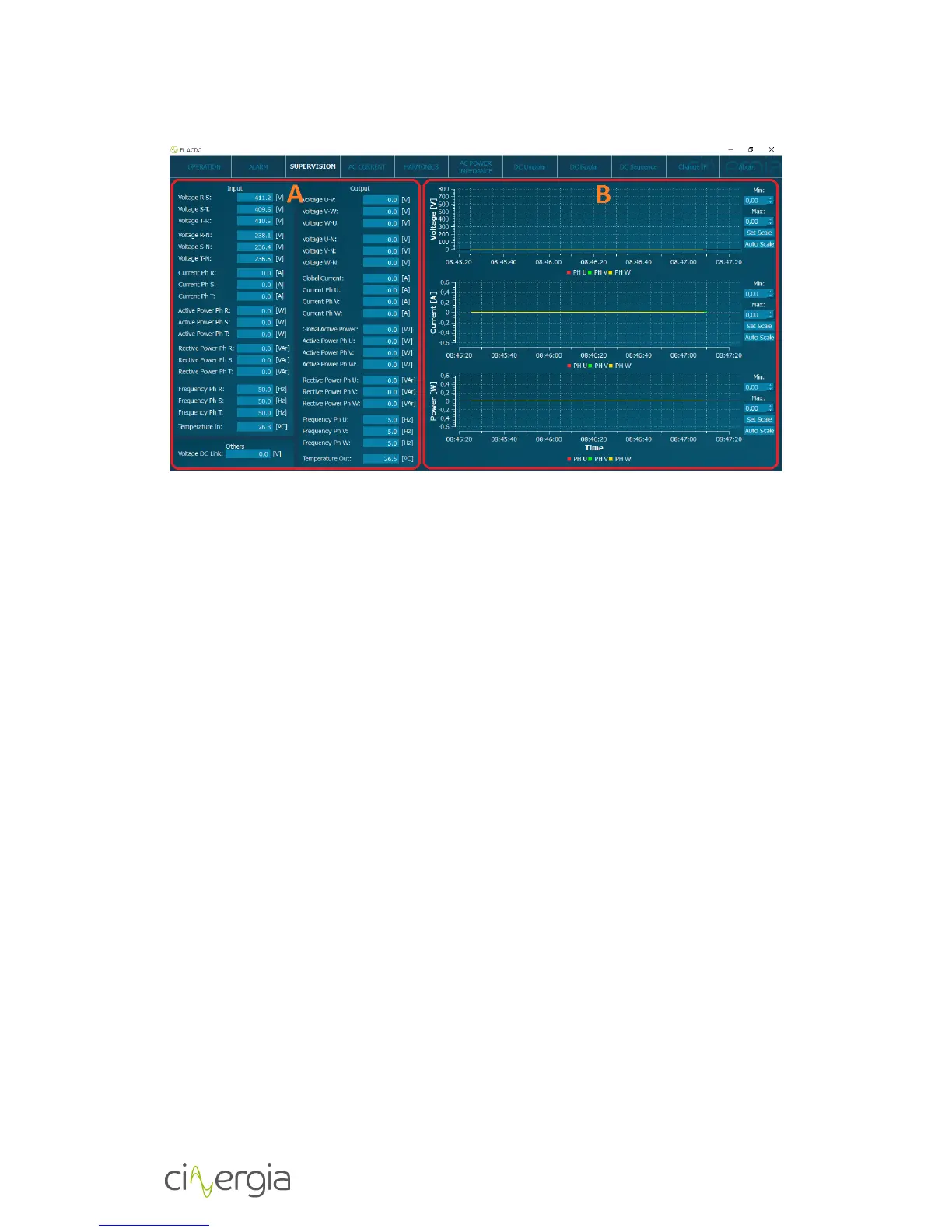

7.2. Supervision
- A: Information about the electrical parameters of both converters:
- Voltage
- Current
- Frequency
- Temperatures
- Active power
- Reactive power
- Voltage DC link
- B: Current trend plots:
- Three variable per plot are allowed at the same time.
- Due to a long refreshing time, it is not possible to detect fast current transients of
the variables.
