EL bipolar mode tab is very similar than unipolar tab. It is important to make sure that the
cables are properly connected and remember than EL in bipolar mode behaves as 2 DC power
supplies: one is positive (between X6 and X7) and the other one is negative (between X8 and
X7).
Select the control mode (CI, CC, CP or CV) in some state different than RUN, then enter the
setpoints and send them.

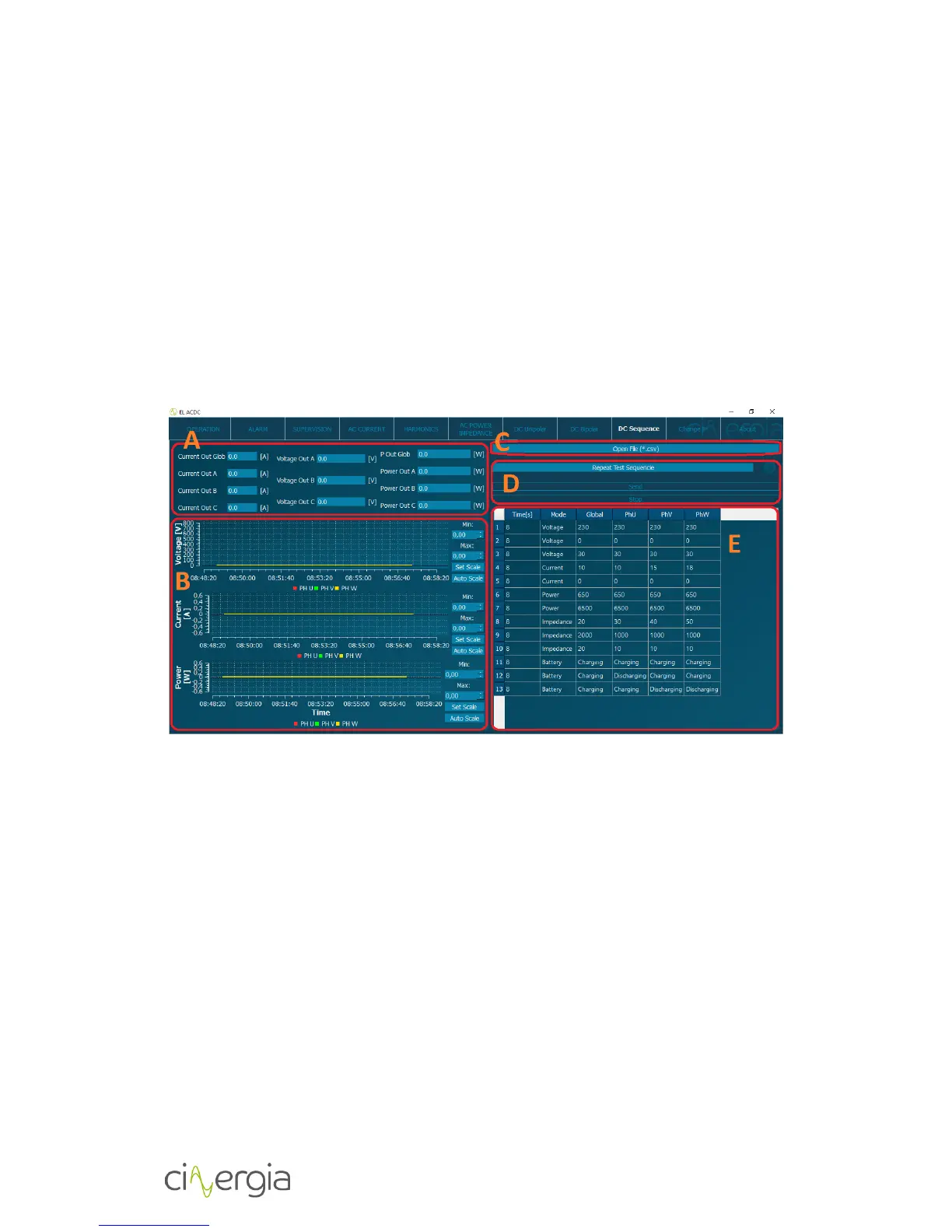

7.4. DC sequence
EL gives the opportunity to create a DC sequence using Current mode, Power mode, Impedance
mode and Voltage mode.
- A: Information about actual values of current, voltage and power.
- B: During the sequential DC test, the plots are being drawn. User can adjust the scale.
- C: .csv files can be created, opened and modified if necessary in the interface. Example
of .csv file:
