7.3. Unipolar/Bipolar connection
EL DC behaves as a DC voltage power supply.
Unipolar

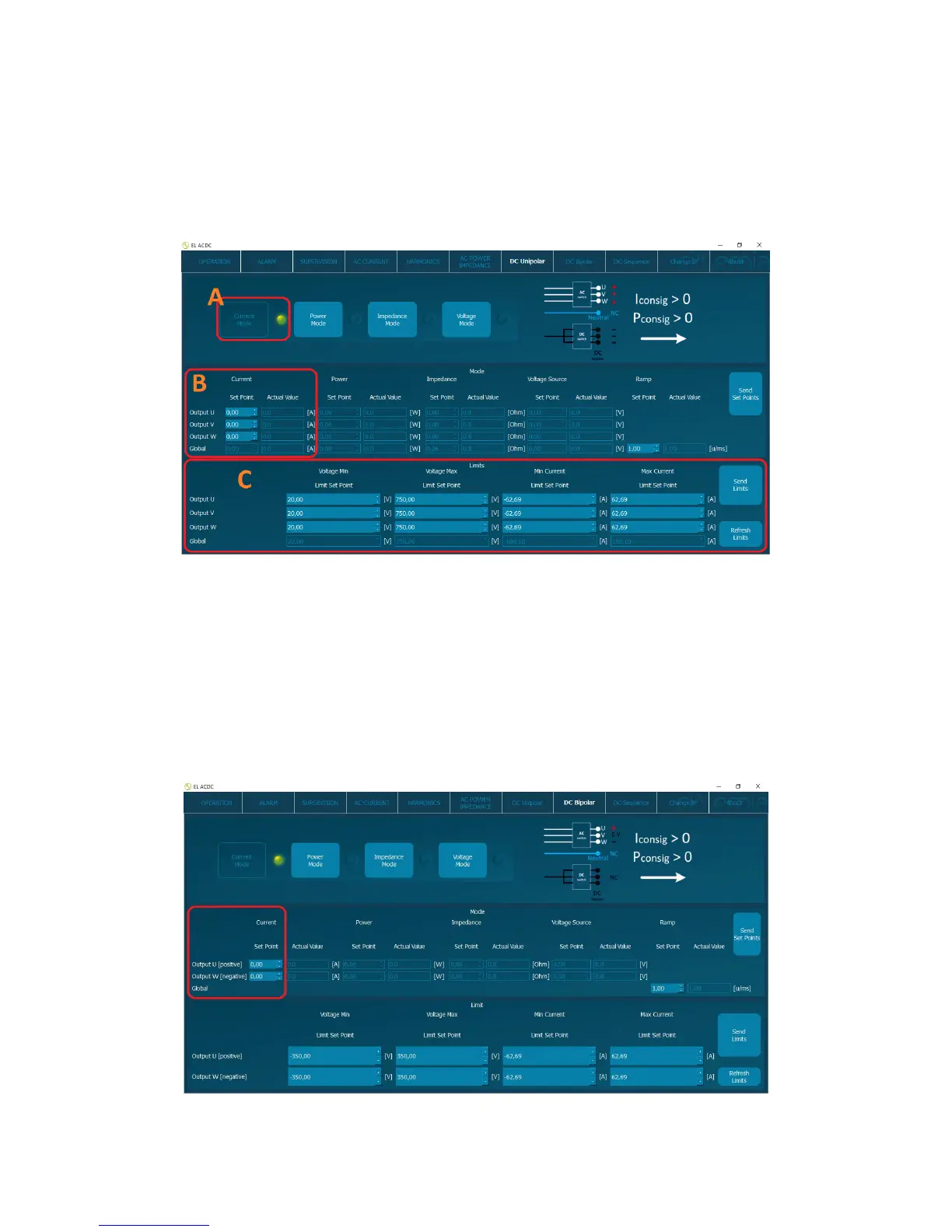

- A: Current mode is selected in the case of the image above. To change the mode, EL
does not have to be in RUN state.
- B: It is illuminated the part of the selected mode. In parallel case, Global option will be
the one for the setpoint. When all the values are ready, send setpoints.
- C: Limits allow the equipment to be more protected. Choose the proper limits and send
them. It is important not to work very close from the limits.
Bipolar
