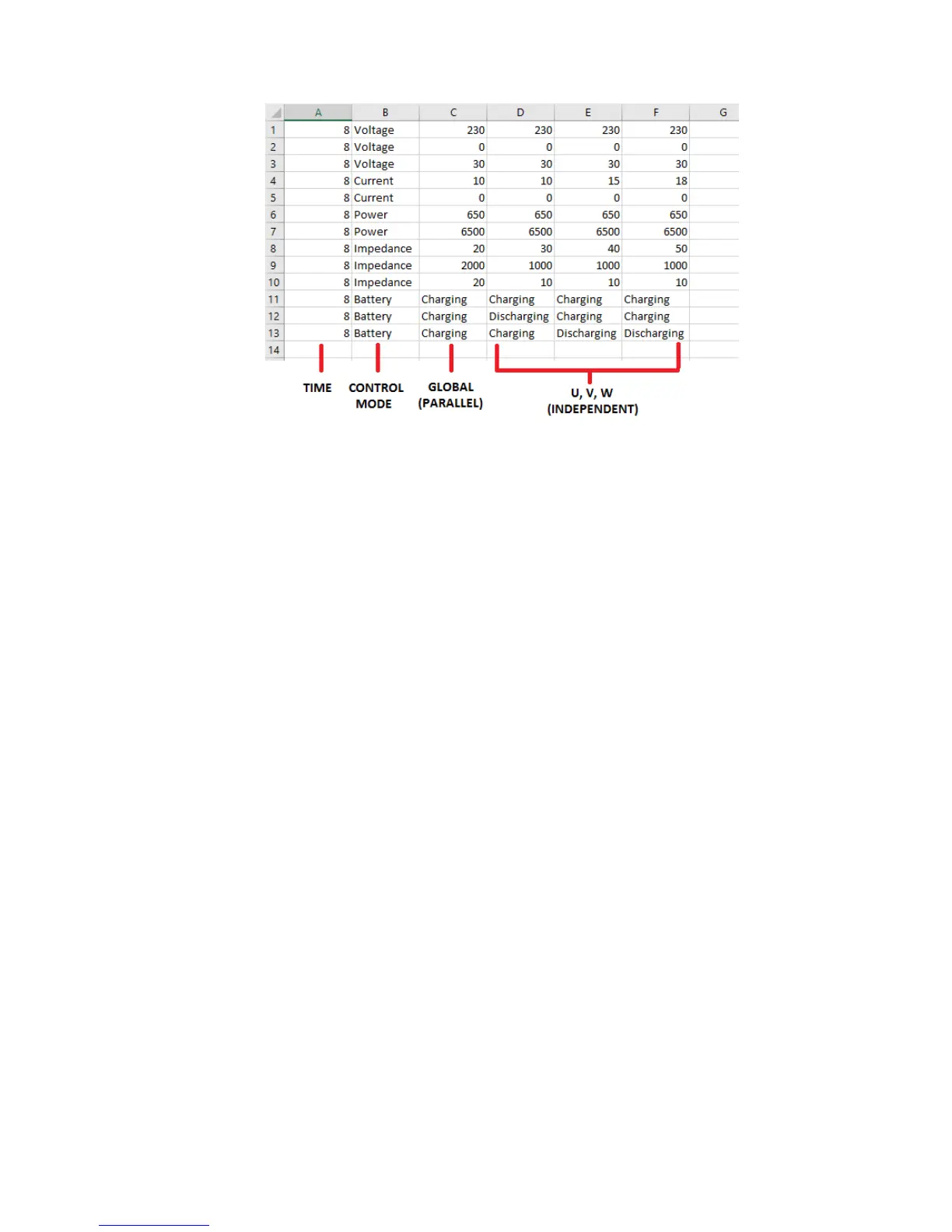

First column is for the time that the status is going to last. Control mode refers to CV,
CC, CP and CI (Battery mode is only available for B2C equipment of CINERGIA). The last
four columns are the setpoints. Working in parallel, the global is the control, whereas
working in independent mode, the last three columns are each phase U, V and W.
- D: Once everything is ready, send button starts the sequence, stop one makes it to finish.
Repeat sequence allows the sequence to restart when finished.
- E: .csv file is showed in this window when it is opened.
