DA-1000 User’s Manual
26
Chapter 2: Jumpers and Connectors

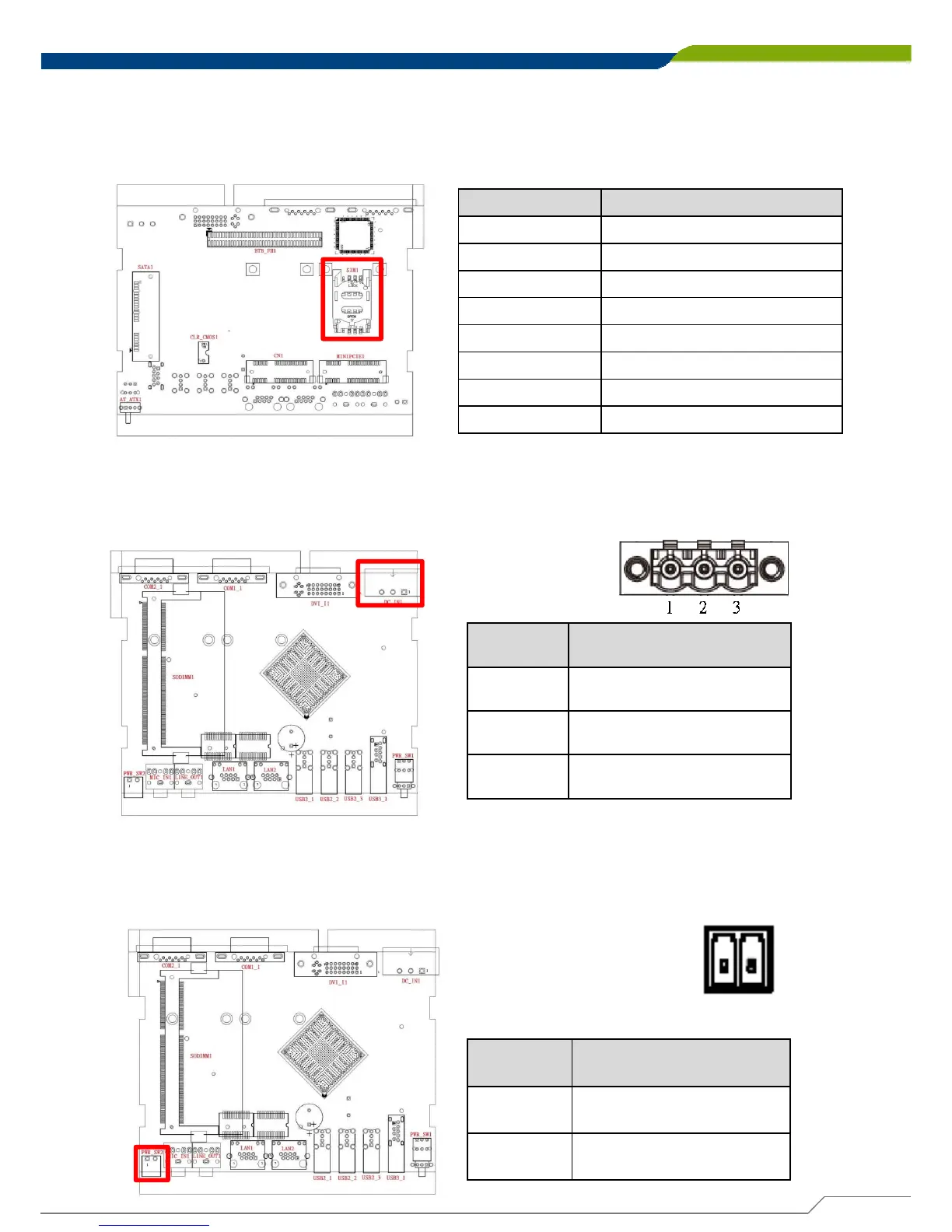

2.5.3 SIM1：SIM Card Socket
Pin Definition
C1 UIM_PWR
C2 UIM_RESET
C3 UIM_CLK
C5 GND
C6 UIM_VPP
C7 UIM_DATA
CD NC
COM GND
2.5.4 DC_IN1：DC Power Input Connector (9~48V)
Connector Type：Phoenix 1X3 3-pin, 5.0mm pitch
Pin Definition
1 +9~48V IN
2 Chassis GND
3GND
Pin Definition
1GND
2PWR_ON
2.5.5 PWR_SW2：External remote power on/off switch
(Note: Please do not apply power to the pins.
This port is used to apply a switch.)
1 2
