Chapter 2: Jumpers and Connectors

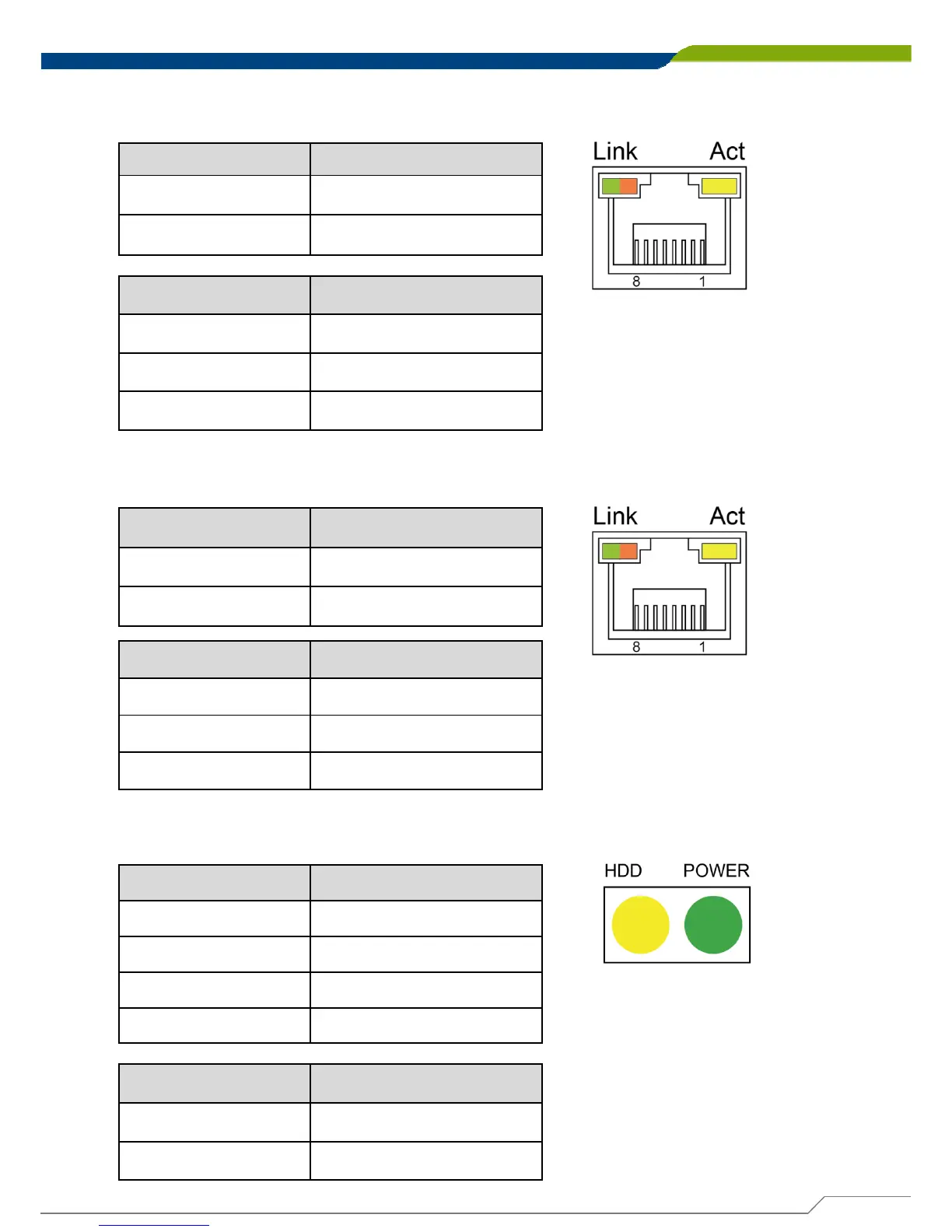

2.5.10 LAN1：RJ45 with LED Connector
Act LED Status Definition
Blinking Yellow Data Activity
Off No Activity
2.5.11 LAN2：RJ45 with LED Connector
Act LED Status Definition
Blinking Yellow Data Activity
Off No Activity
2.5.12 LED1：Power / HDD Access LED Status
Pin Definition
1 HDD LED+
2 HDD LED-
3POWER LED+
4POWER LED-
LED Status LED Color
HDD Yellow
POWER Green
Link LED Status Definition
Steady Green 1Gbps Network Link
Steady Amber 100Mbps Network Link
Off 10Mbps Network Link
Link LED Status Definition
Steady Green 1Gbps Network Link
Steady Amber 100Mbps Network Link
Off 10Mbps Network Link
