3.6 Installing a SODIMM

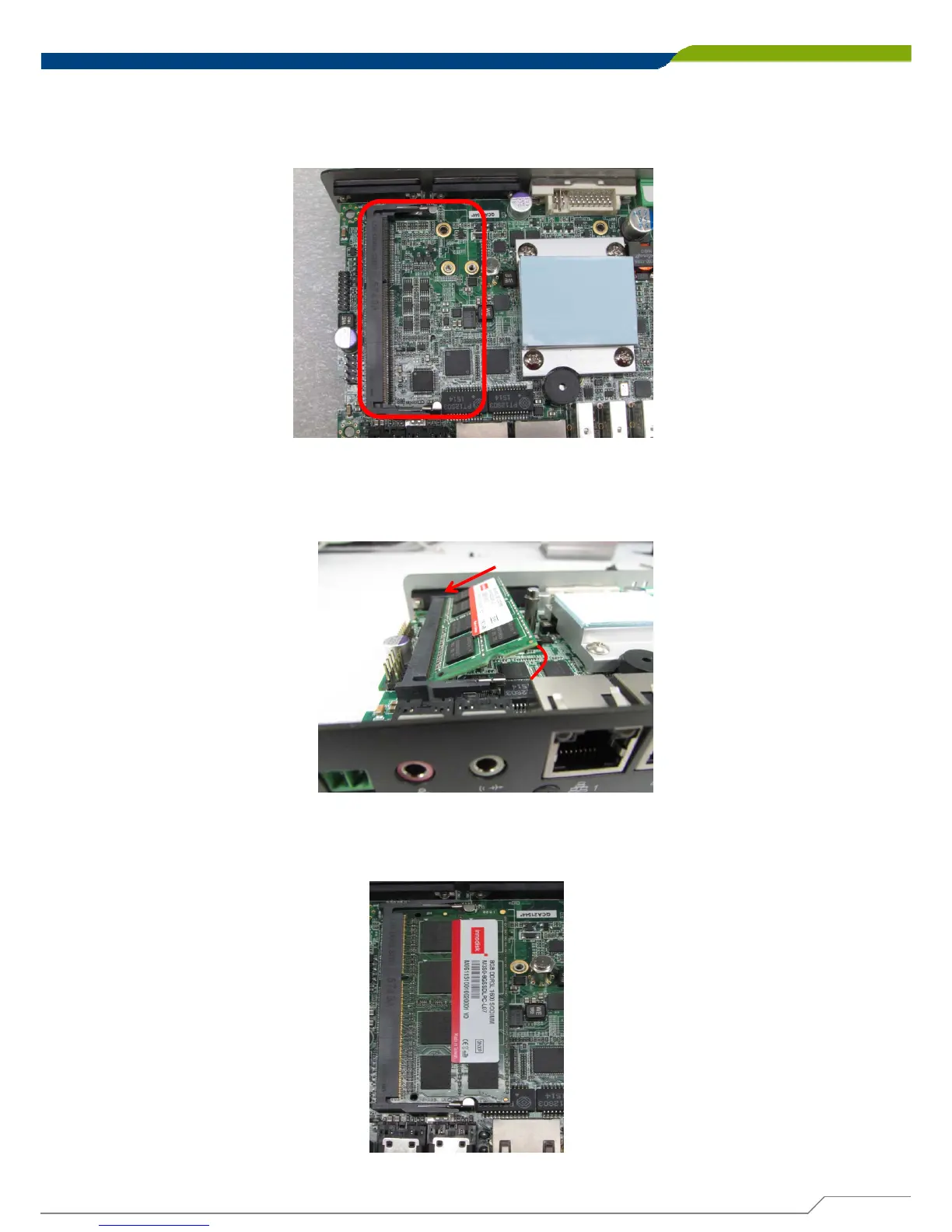

1. Locate SODIMM socket.
2. Tilt the SODIMM module at a 45 degree angle and insert it to SODIMM socket until
the gold-pated connector of module contacted firmly with the socket.
45°
3. Press the module down until it’s fixed firmly by the two locking latches on the sides.
