DA-1000 User’s Manual

Chapter 2: Jumpers and Connectors

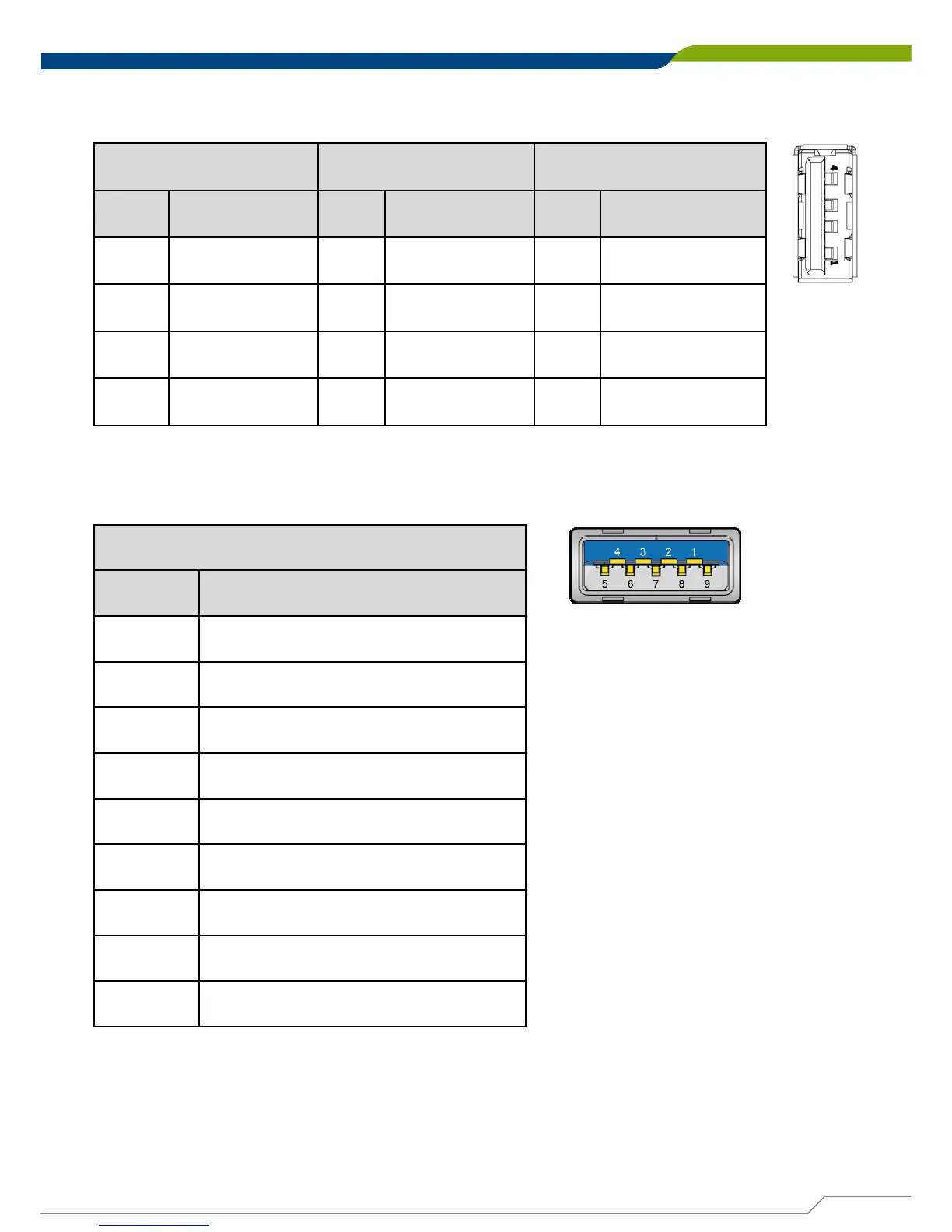

2.5.16 USB2_1、USB2_2 、 USB2_3：USB2.0 Connector, Type A

USB2_1 USB2_2 USB2_3

Pin Definition Pin Definition Pin Definition

1 +5V 1 +5V 1 +5V

2 USB_DATA3- 2 USB_DATA2- 2 USB_DATA1-

3 USB_DATA3+ 3 USB_DATA2+ 3 USB_DATA1+

4 GND 4 GND 4 GND

2.5.17 USB3_1：USB3.0 Connector, Type A

USB4

Pin Definition

1+5V

2 USB3_DATA0-

3 USB3_DATA0+

4GND

5 USB3_Rx0-

6 USB3_Rx0+

7GND

8 USB3_Tx0-

9 USB3_Tx0+

Cinzone DA-1000 - Page 31
