Chapter 3: System Setup

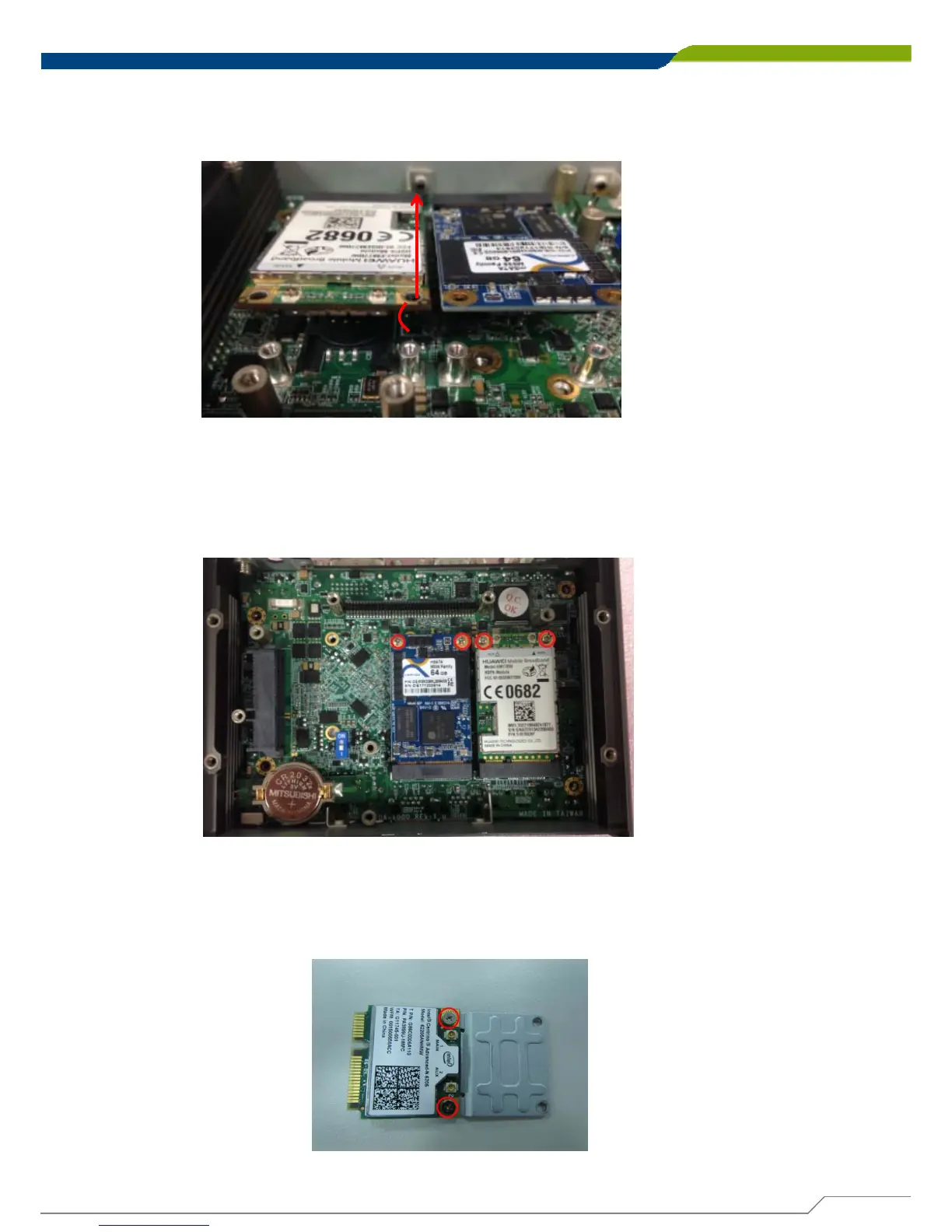

3. Tilt the Mini PCIe modules at 45 degree angle and insert it to the slot until the gold-
pated connector of module contacted firmly with the slot.
4. Press down the module and use the two screws to fix the module.
5. If you have a Half-size Mini-PCIe card, make sure use extender to make it Full-size
as shown below.
45°
