Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL
23
9.3 POWER SUPPLY LINE CABLE INSERTION
There are two possibilities to insert the electric wires or electric pipe:
a) Breaking out the cable insertion opening on the rear of the housing.
b) Using the cable insertion opening at the bottom of the housing.
In all cases it is required to install a cable gland to ensure properly installation and preserve
the IP of the unit.

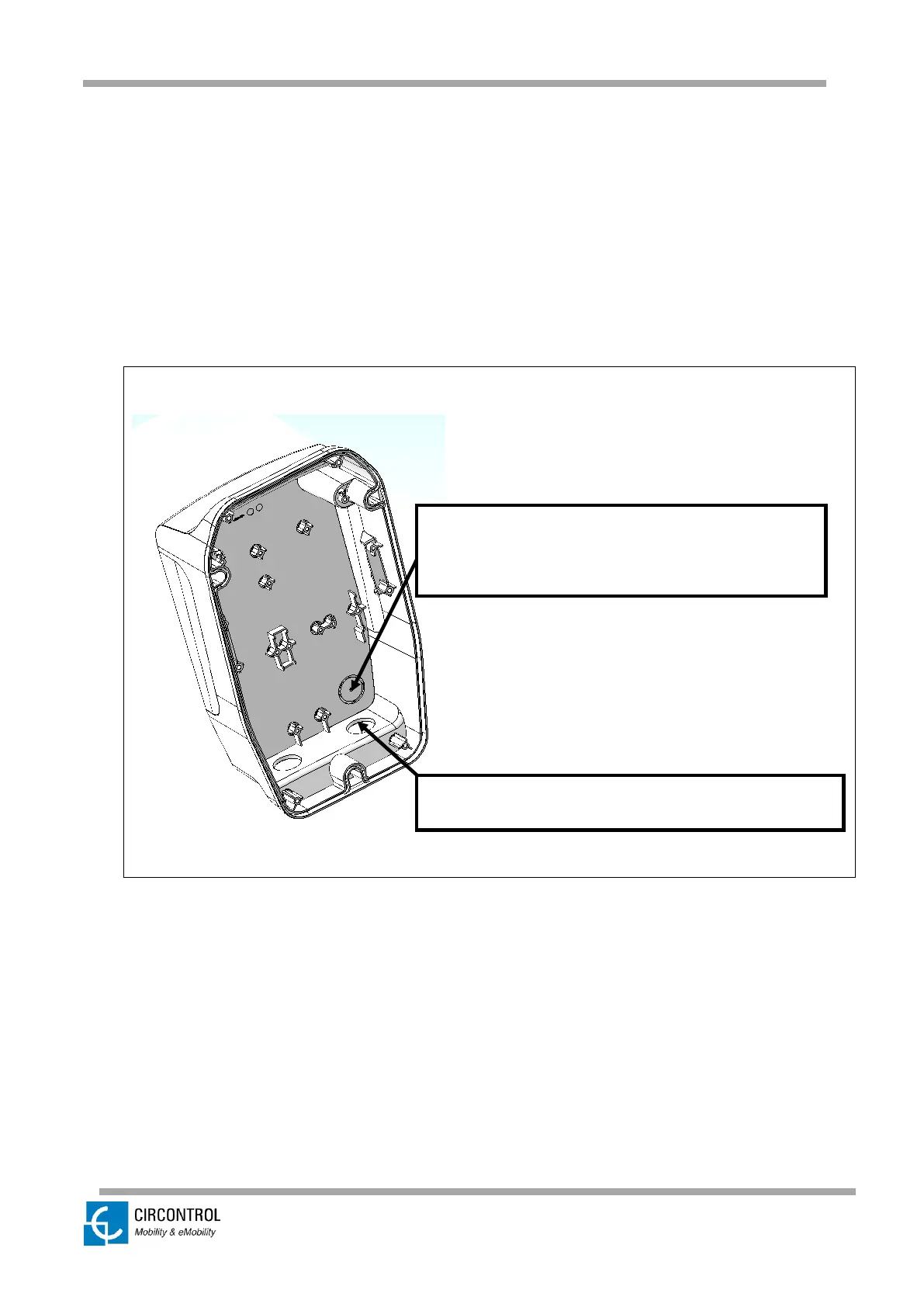

Cable insertion opening on the rear of the housing
(breakable)
Cable insertion opening at the bottom of the housing
