9.3.2 USING THE BOTTOM CABLE INSERTION OPENING
Please follow these steps to use this opening:

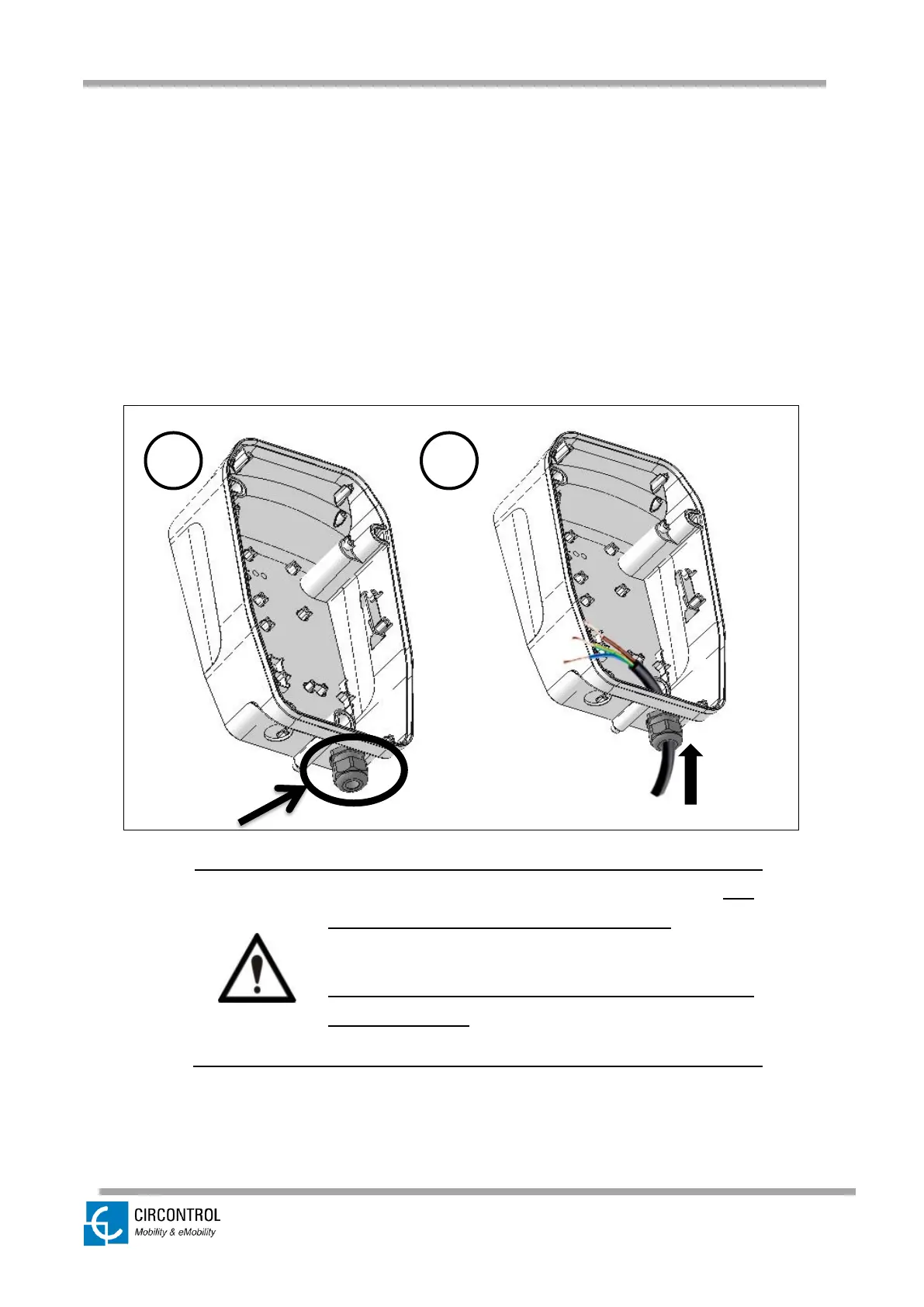

- Introduce the cable through the opening and fix it properly by means of the supplied
M25 cable gland.
NOTE: The power supply cable must be 3x4mm
2
(for the 16 A models) and 3x6mm
2
(for
the 32 A models) to meet the supplied cable gland.
Do not make any other holes on the enclosure. Use
only the named cable insertion opening to install
the required electric pipes.
Install always either cable glands or double
membrane seals to ensure IP protection of the
charging point.
2
1
