9.5.2 POWER SUPPLY LINE CONNECTION

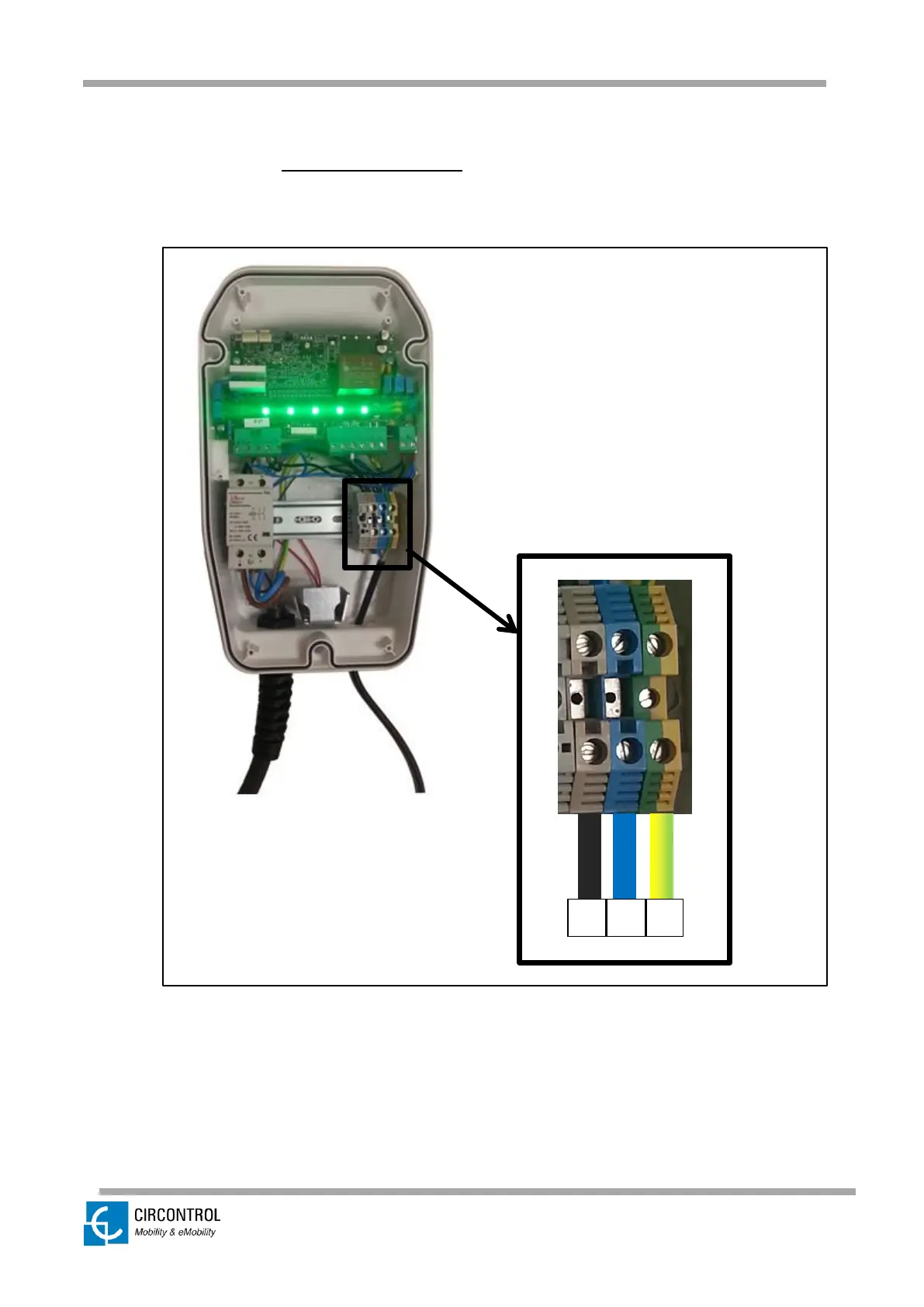

- Perform the 230 VAC Single-phase connections as shown in the picture below.
- Do not forget to connect the ground cable (PE) to its corresponding terminal.
N
P
PE
