Wallbox eHOME INSTRUCTION & INSTALLATION MANUAL
13 eHOME BeON (optional)
The eHOME BeON is an optional device that can optimize the Electric Vehicle (EV)
Charger. It is the responsible to analyze the total current consumption in the residential, and
to manage the remaining current for the EV Charger, avoiding any tripping the Main Circuit
Breaker (MCB) for overconsumption.
BeON product range: 16 A for 3,7* kW, 20 A for 4,6* kW, 25 A for 5,75* kW, 30 A for 6,9*
kW, 35 A for 8,05* kW, 40 A for 9,2* kW, 45 A for 10,35* kW, 50 A for 11,5* kW, 63 A for
14,49* kW.
*Values for Single-phase
The device eHOME BeON is connected downstream of the main power switch and
upstream of the main loads.
Only the authorised staff can manipulate the
electrical and electronic components.
• Comply strictly with electrical safety regulations according to your country.
• Do not make repairs or manipulations with the unit energised.
• Only trained and qualified personnel should have access to low-voltage electrical
parts inside the device.
• Remove from service any item that has a fault that could be dangerous for users
(broken plugs, caps that don’t close...).
• Use only Circontrol supplied spare parts.
•

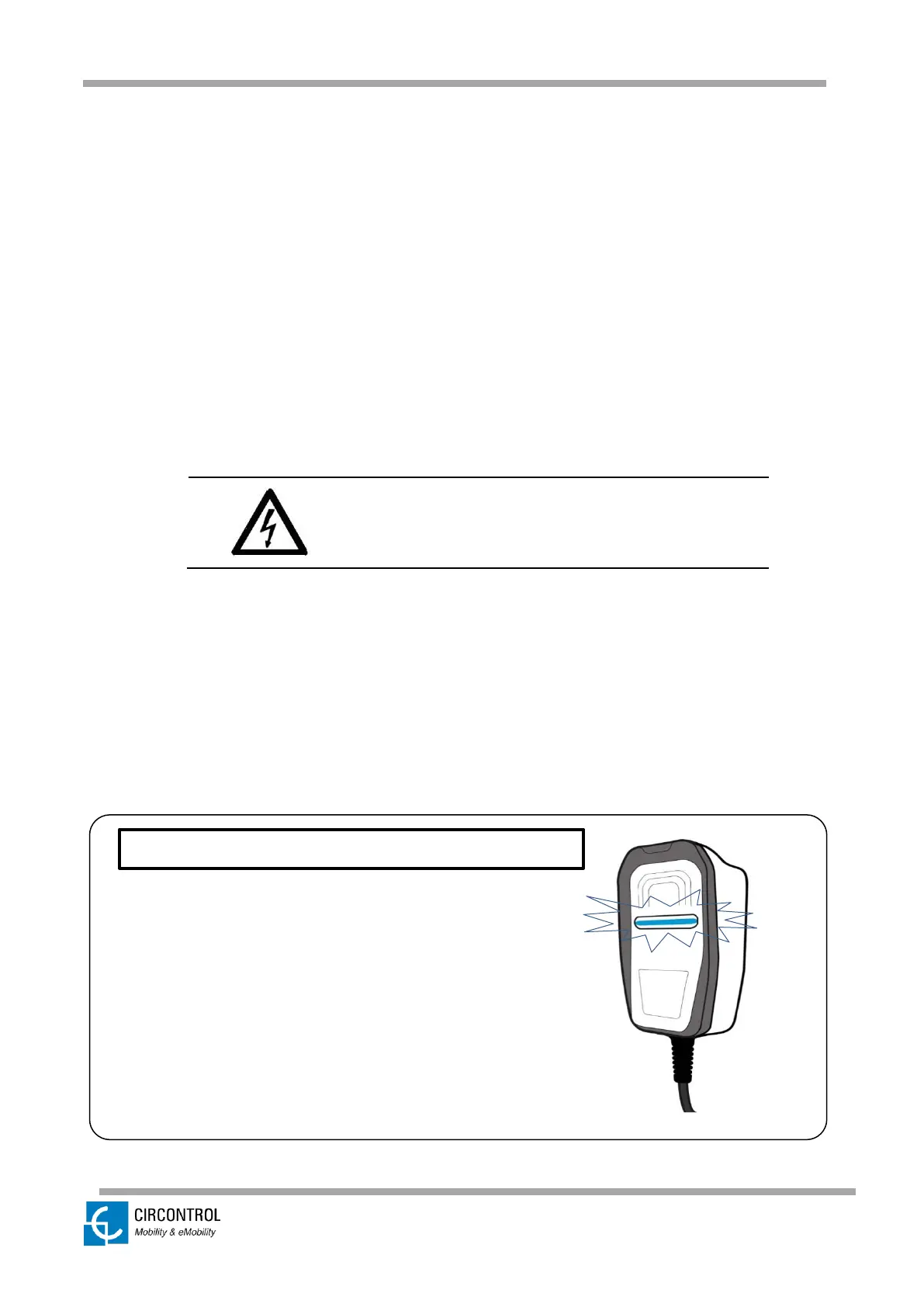

• All the LEDs of the status LED
bar turns into blue flashing when
there is no enough current to charge
the EV, when there is enough
current, the system is re-
establishing the charging process
automatically
LED BAR STATUS CONSIDERATION
