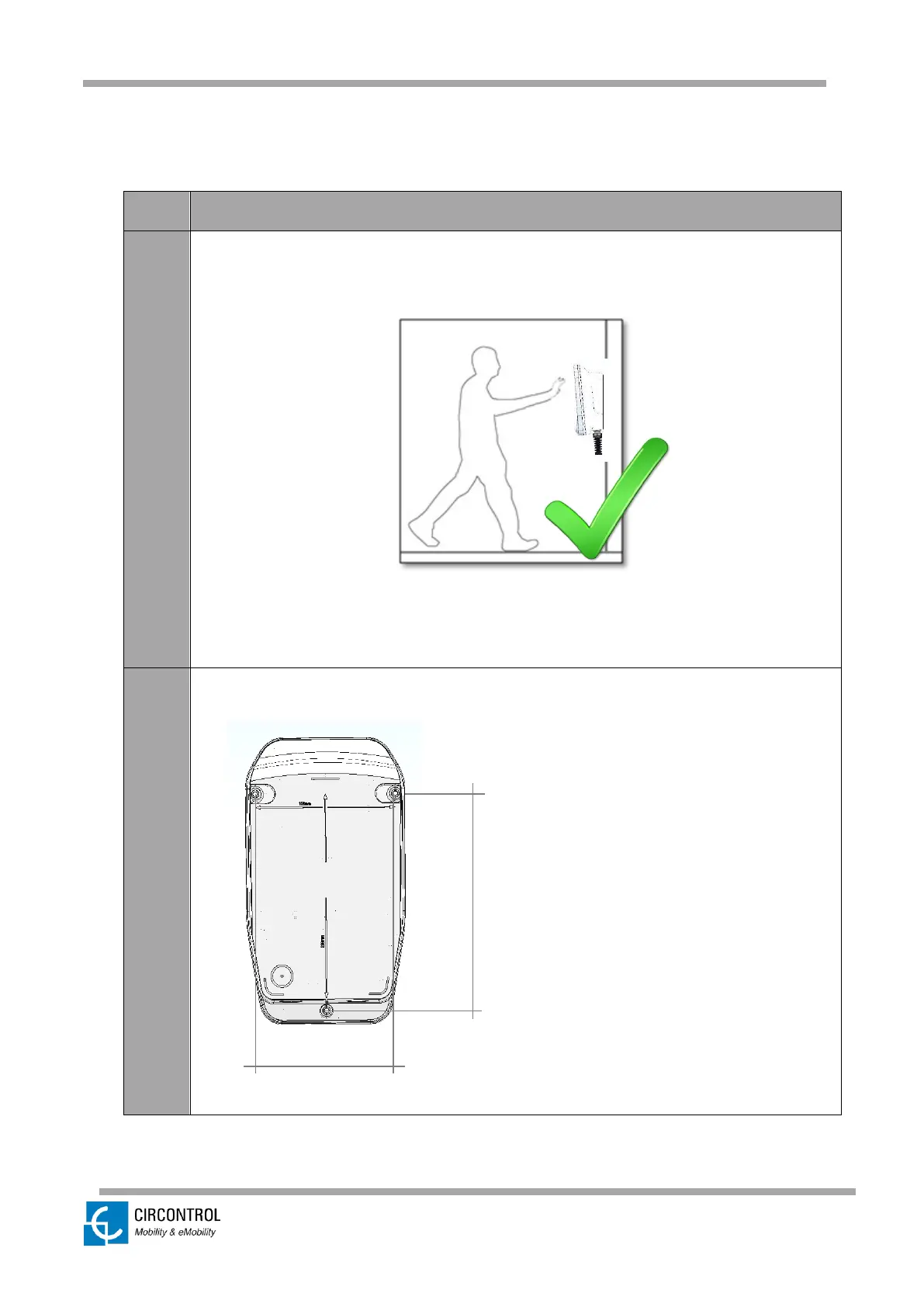

9.4.3 INSTALLATION
STEP
ACTION
1.
Adjust the vertical position of the charging point to ensure the correct vision and
management for the end user.
Minimum recommended height: 600 mm
Please comply to your country specifications.
2.
1. Mark 3 holes taking into
account the picture
measurements (also
written on the rear face
of the box).
2. Place the enclosure on
a flat surface.
3. Use 3x45mm screws to
fix the unit to the wall.
4. Check whether the box
has any inclination using
a level tool.
238
158
