Using the Cisco SPA 500S Attendant Console
Connecting the Cisco SPA 500S Attendant Console to the IP Phone
Cisco Small Business Pro IP Phone SPA 50X User Guide (SIP) 83
6
Connecting a Second Cisco SPA 500S
A maximum of two SPA500S attendant consoles can be connected to a Cisco SPA
500 Series IP Phone. The instructions in this section are for connecting a second
Cisco SPA 500S. If you are not attaching a second Cisco SPA 500S, skip to
“Configuring the Cisco SPA 500S” on page 85.
STEP 1 Attach the first Cisco SPA 500S to the IP phone and connect the auxiliary cable as
described in the “Connecting the Cisco SPA 500S Attendant Console to the IP
Phone” section on page 78.

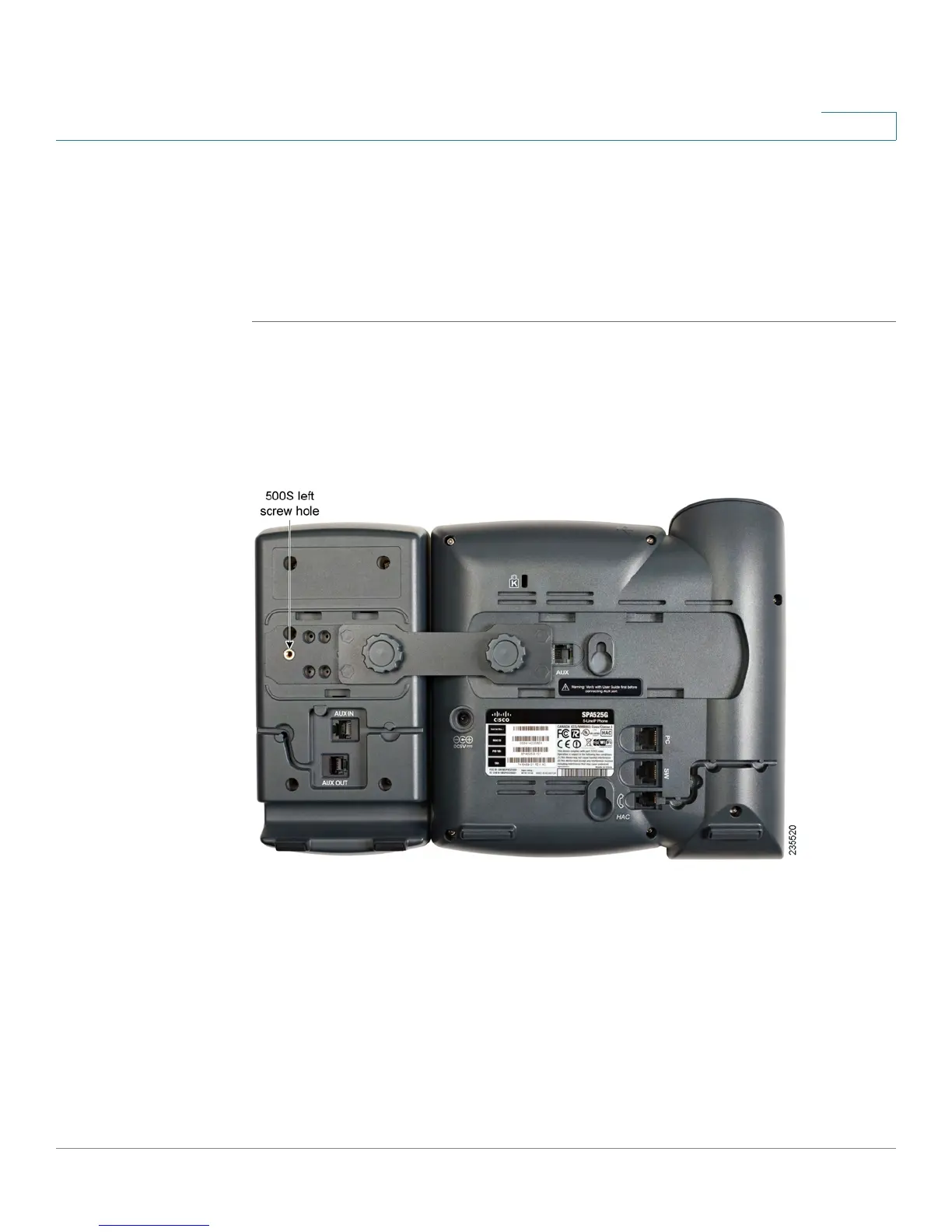

STEP 2 Align the left screw hole in the first Cisco SPA 500S with one of the holes on the
attachment arm.
STEP 3 Insert the pegs on the attachment arm into the peg holes on the Cisco SPA 500S.
STEP 4 Using the attachment arm screw, secure the attachment arm to the first Cisco SPA
500S.
STEP 5 Insert the pegs on the attachment arm into the peg holes on the Cisco SPA 500S.
STEP 6 Using the attachment arm screw, secure the attachment arm to the second Cisco
SPA 500S.
