Cisco 7962G User Manual

6 OL-22333-01

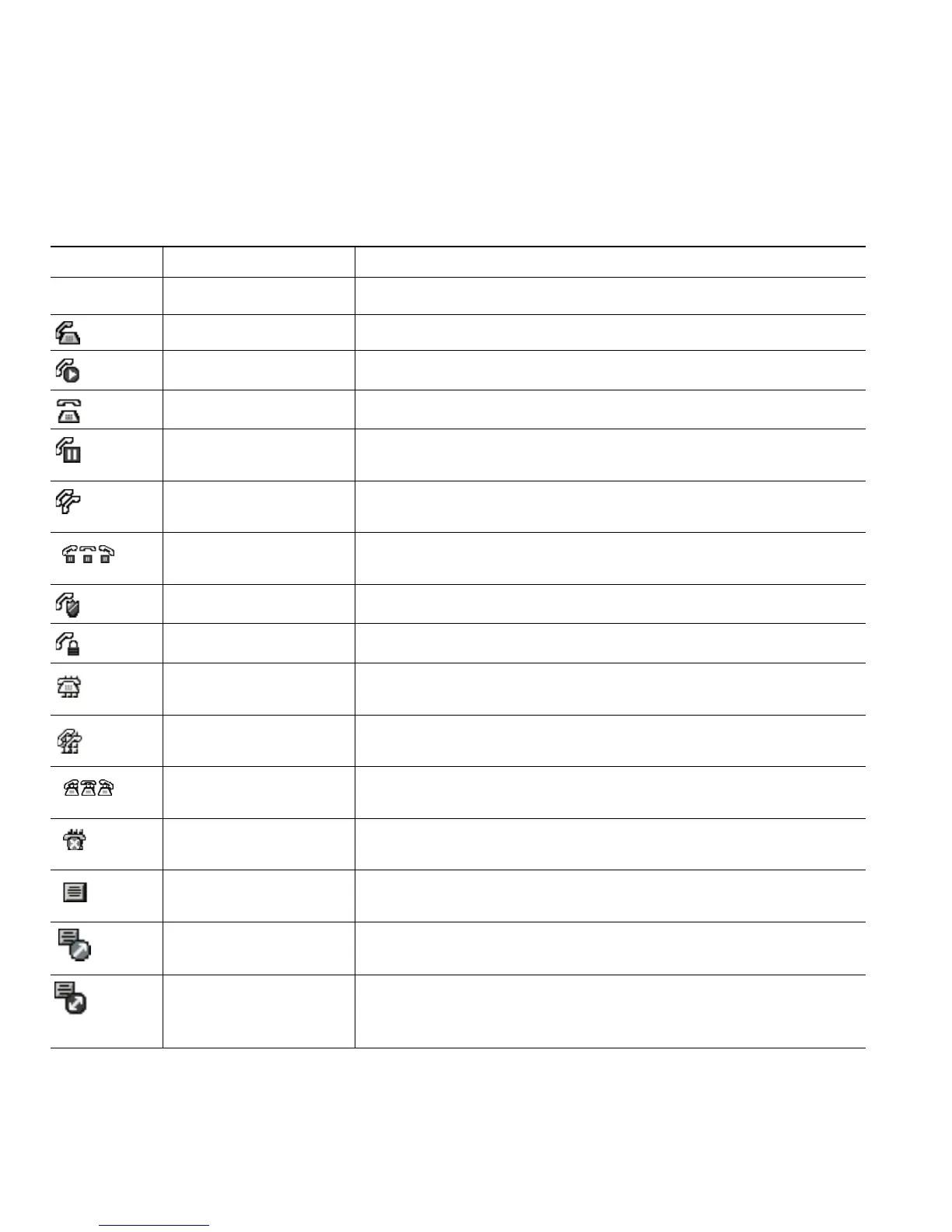

Understanding Line and Call Icons
Your phone displays icons to help you determine the call and line state.
Icon Line or Call State Description
On-hook line No call activity on this line.
Off-hook line You are dialing a number or an outgoing call is ringing.
Connected call You are connected to the other party.
Ringing call A call is ringing on one of your lines.
Call on hold You have put the call on hold. See Using Hold and Resume,
page 7.
Remote-in-use Another phone that shares your line has a connected call. See
Using a Shared Line, page 5, for details.
Reverting call A holding call is reverting to your phone. See Using Hold and
Resume, page 7.
Authenticated call See Making and Receiving Secure Calls, page 8.
Encrypted call See Making and Receiving Secure Calls, page 8.
BLF-monitored line
is idle
See Using BLF to Determine a Line State, page 7.
BLF-monitored line is
in-use
See Using BLF to Determine a Line State, page 7.
BLF-monitored line is
ringing (BLF Pickup)
See Using BLF to Determine a Line State, page 7.
Line in Do Not
Disturb (BLF feature)
See Using BLF to Determine a Line State, page 7.
Idle Intercom line The intercom line is not in use. See Placing or Receiving
Intercom Calls, page 17.
One-way
intercom call
The intercom line is sending or receiving one-way audio. See
Placing or Receiving Intercom Calls, page 17.
Two-way
intercom call
You press the intercom line to activate two-way audio with the
intercom caller. See Placing or Receiving Intercom Calls,
page 17.

Cisco 7962G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Case material	ABS
Product color	Black, Grey
Wall mountable	Yes
Bluetooth	No
Security algorithms	128-bit AES, 802.1x RADIUS
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.711, G.711a, G.722, G.729A, G.729ab, iLBC
Volume control	Digital
Display diagonal	5 \
Display resolution	320 x 222 pixels
Display number of colors	Monochrome
Caller ID	-
Lines quantity	- lines
Phonebook capacity	- entries
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	203.2 mm
Width	266.7 mm
Height	152.4 mm
Weight	1600 g
