Cisco 7965G Administration Guide

3-7
Cisco Unified IP Phone 7965G and 7945G Administration Guide for Cisco Unified Communications Manager 6.0
OL-12650-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone

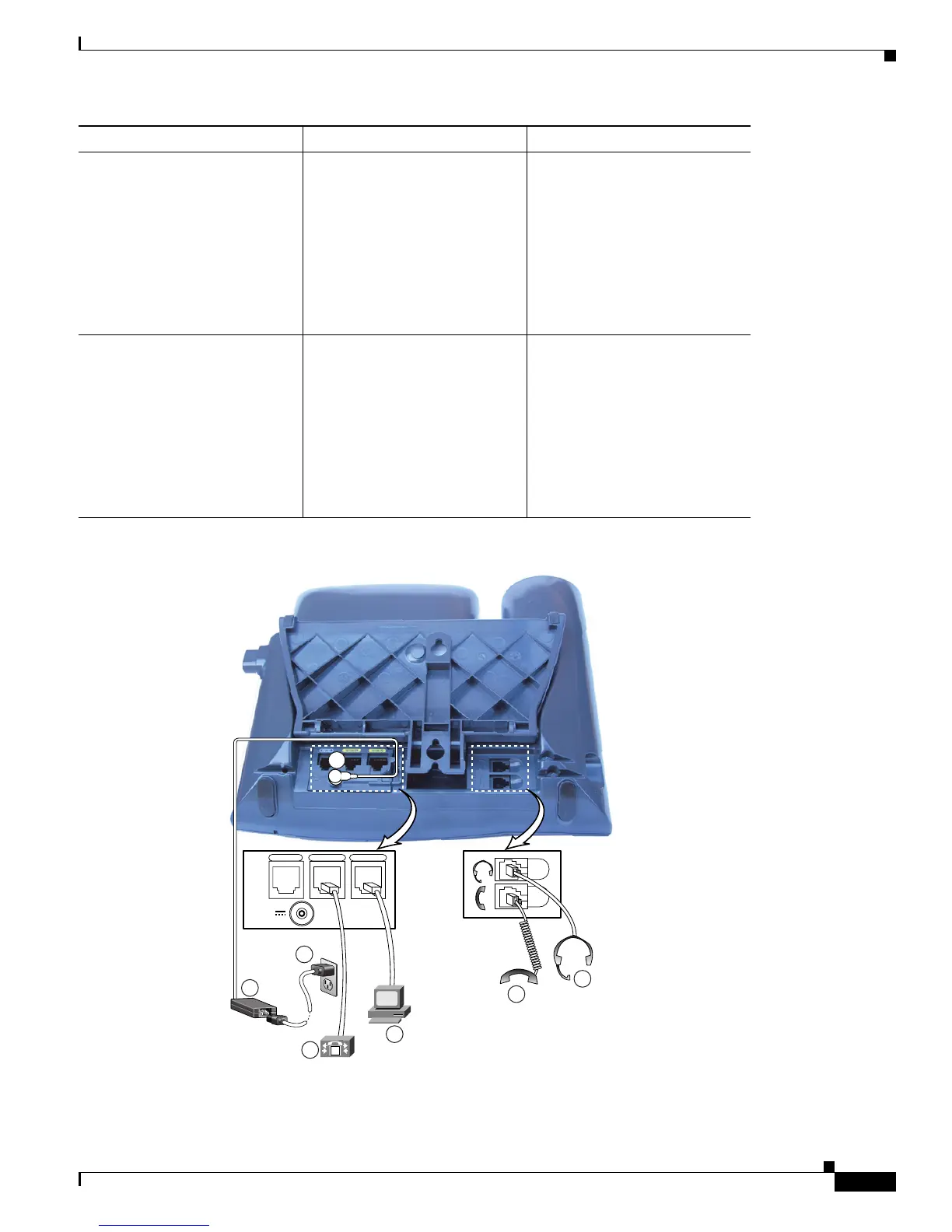

Figure 3-1 Cisco Unified IP Phone 7965G and 7945G Rear Cable Connections
1
130055
AUX 10/100/1000 SW 10/100/1000 PC
DC48V
7
5
4
3
2
6
4. Connect a straight-through
Ethernet cable from the
switch to the 10/100/1000
SW port.
Each Cisco Unified IP Phone
ships with one Ethernet cable in
the box.
You can use either Category
3/5/5e/6 cabling for 10 Mbps
connections, but you must use
Category 5/5e/6 for 100 Mbps
connections and Category 5e/6
for 1000 Mbps connections.
See the “Network and Access
Ports” section on page 3-4 for
guidelines.
5. Connect a straight-through
Ethernet cable from another
network device, such as a
desktop computer, to the
10/100/1000 PC port.
Optional. You can connect
another network device later if
you do not connect one now.
You can use either Category
3/5/5e/6 cabling for 10 Mbps
connections, but you must use
Category 5/5e/6 for 100 Mbps
connections and Category 5e/6
for 1000 Mbps connections.
See the “Network and Access
Ports” section on page 3-4 for
guidelines.
Procedure Notes Reference

Cisco 7965G Specifications

General

Protocol Support	SIP, SCCP
Weight	3.5 lbs (1.6 kg)
Ethernet	10/100 Mbps
Power	IEEE 802.3af Power over Ethernet (PoE)
Expansion Module Support	Supports up to two Cisco Unified IP Phone Expansion Modules
Speakerphone	Full-duplex speakerphone
Lines	6 lines
Codecs	G.711, G.729a, iLBC
