Chapter 1 Product Overview
Cisco 880 Series ISRs

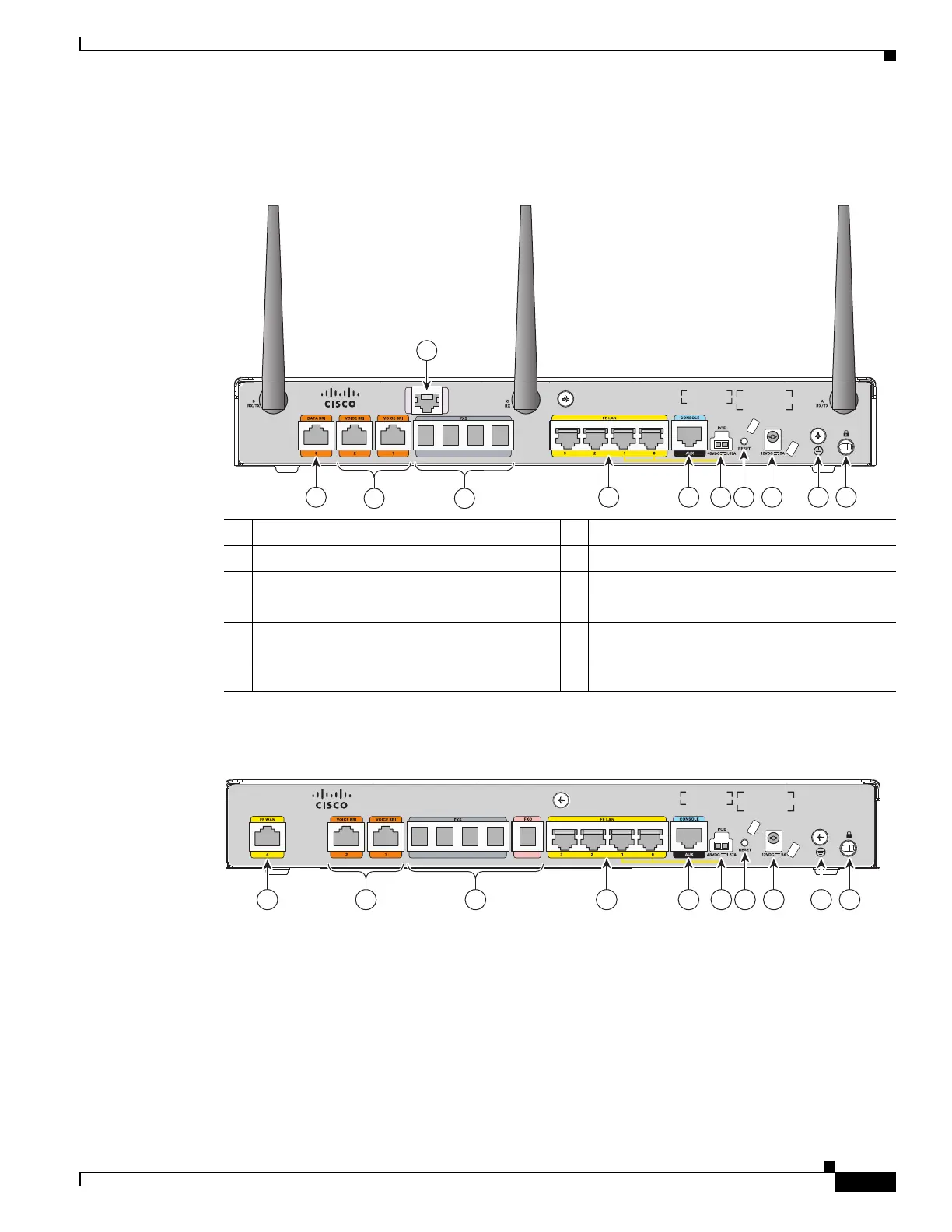

Figure 1-16 shows the back panel for the Cisco 887VA-V-W router. The Cisco 887VA-V (non-wireless)
router does not have the antennas on the back panel.
Figure 1-16 Back Panel of the Cisco 887 VA-V Router
Figure 1-17 shows the back panel for the Cisco 881-V router.
Figure 1-17 Back Panel of the Cisco 881-V Router
246864
overP O T S
VDSL/AD SL
C887VA-W VO ICE
3
4
56
1 4 5 6 8 9 107
32
11
1 Data BRI 7 Reset Button
2 Voice BRI 8 Power connector
3 Voice ports—four FXS/DID ports 9 Earth ground connection
4 Fast Ethernet LAN—four ports 10 Kensington security slot
5 Console Port 11 Primary WAN port—VDSL/ADSL over
POTS
6 PoE power connector (optional)
246866
C881 VO ICE
3
4
56
7
1 4 5 6 8 9 10732
