Cisco ASR 1001-HX User Manual

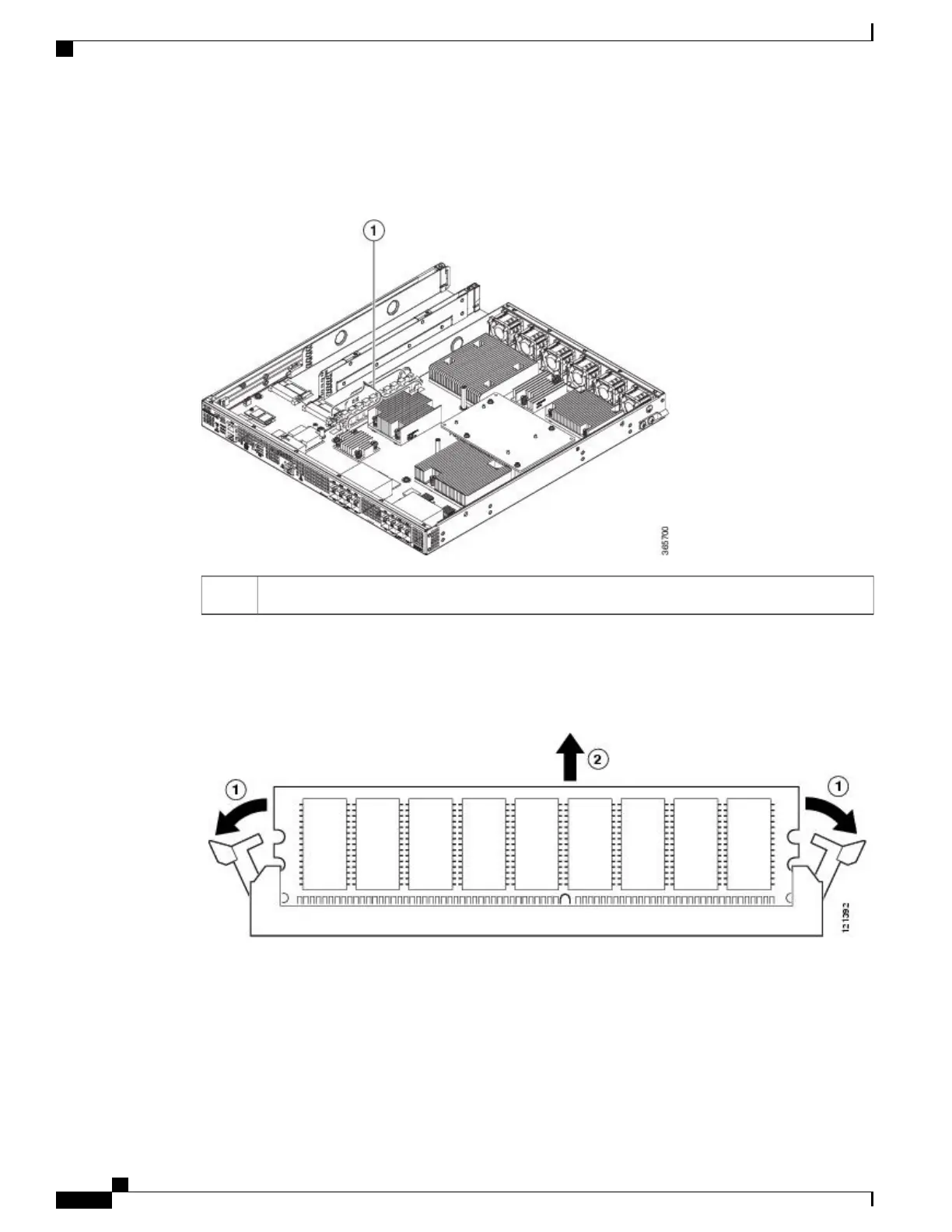

The following figure shows the location of the DIMM slots in the Cisco ASR 1001-HX Router.
Figure 39: Cisco ASR 1001-HX Router and DIMM Location
Cisco ASR 1001-HX Router and DIMM location (two slots)1
Step 5
Pull down the DIMM module spring latches to release the corresponding DIMM from the socket.
Figure 40: DIMM Module Spring Latches to Remove the DIMMs
Step 6
When both ends of the DIMM are released from the socket, grasp each end of the DIMM with your thumb
and forefinger and pull the DIMM completely out of the socket. Handle only the edges of the DIMM; avoid
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
120
Removing and Replacing FRUs
Removing a DIMM from a Cisco ASR 1001-HX Router

Cisco ASR 1001-HX Specifications

General

Form Factor	1 RU
Rack Mountable	Yes
Redundant Power Supply	Optional
Operating Temperature	32 to 104°F (0 to 40°C)
Memory	16 GB
Power Supply	Internal AC or DC
Humidity	5% to 95% non-condensing
Ports	Built-in 8 x 1GE and 4 x 10GE (SFP+)
Maximum NAT sessions	Up to 4 million
