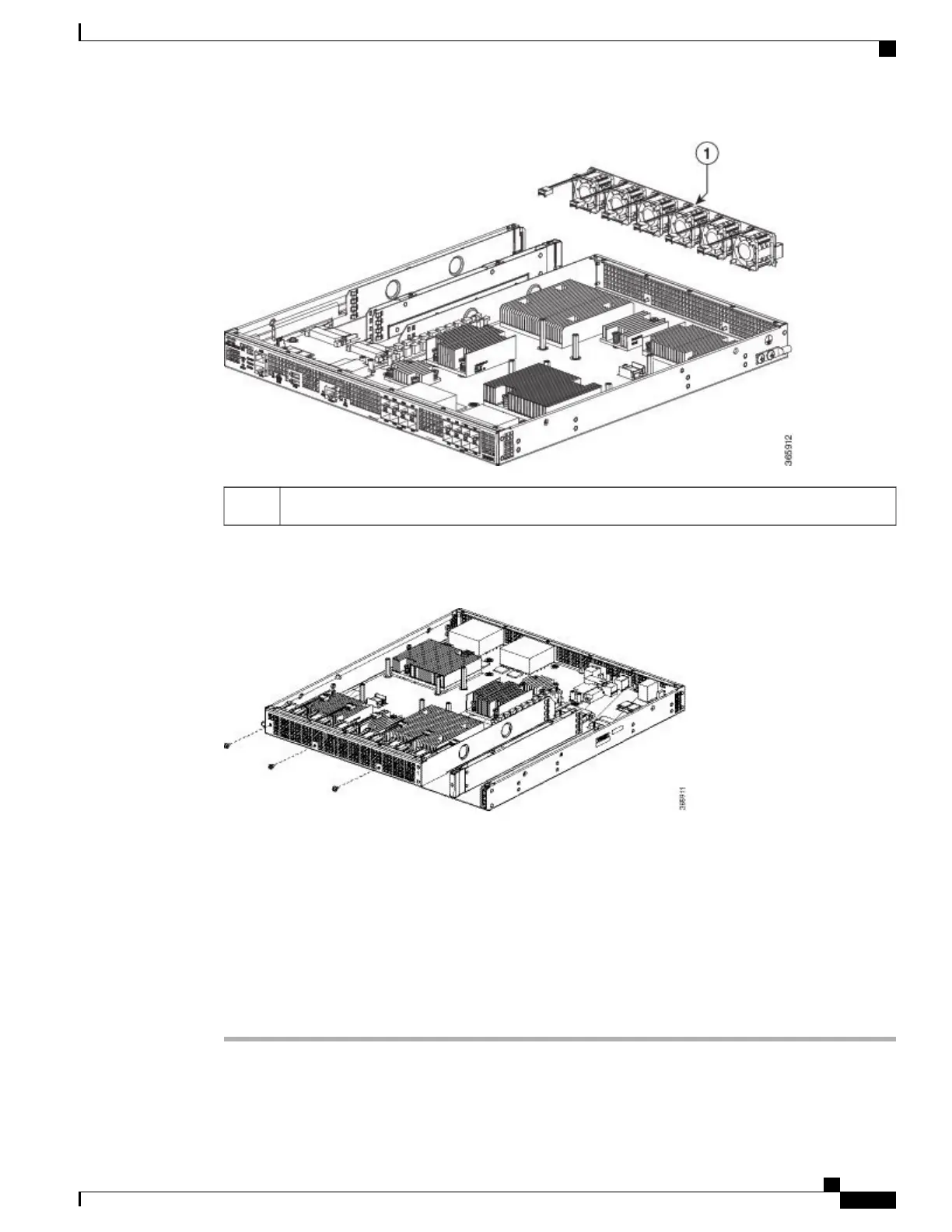

Fan tray1
Step 2
Use three screws to attach the fan trays to the chassis.
Step 3
Plug the six fan connectors into the motherboard.
Step 4
Replace the chassis top cover:
a) Slide the cover onto the chassis ensuring that the interlock hook feature fits on the chassis cover and base.
b) Install the top surface screws and the side screws and tighten them slightly.
Step 5
Install the power supplies into the chassis and power up the router. See:
•
Installing AC Power Supplies
•
Installing DC Input Power Supplies
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
135
Removing and Replacing FRUs
Replacing the Fans in a Cisco ASR 1001-HX Router
