Procedure
Step 1
Power down the router by placing the chassis power switch in the Standby position and unplug the power
supplies.
Step 2
Remove the router from the rack.
Step 3
Open the access panel on the right side of the chassis by removing the 5 screws, as shown in the following
figure.

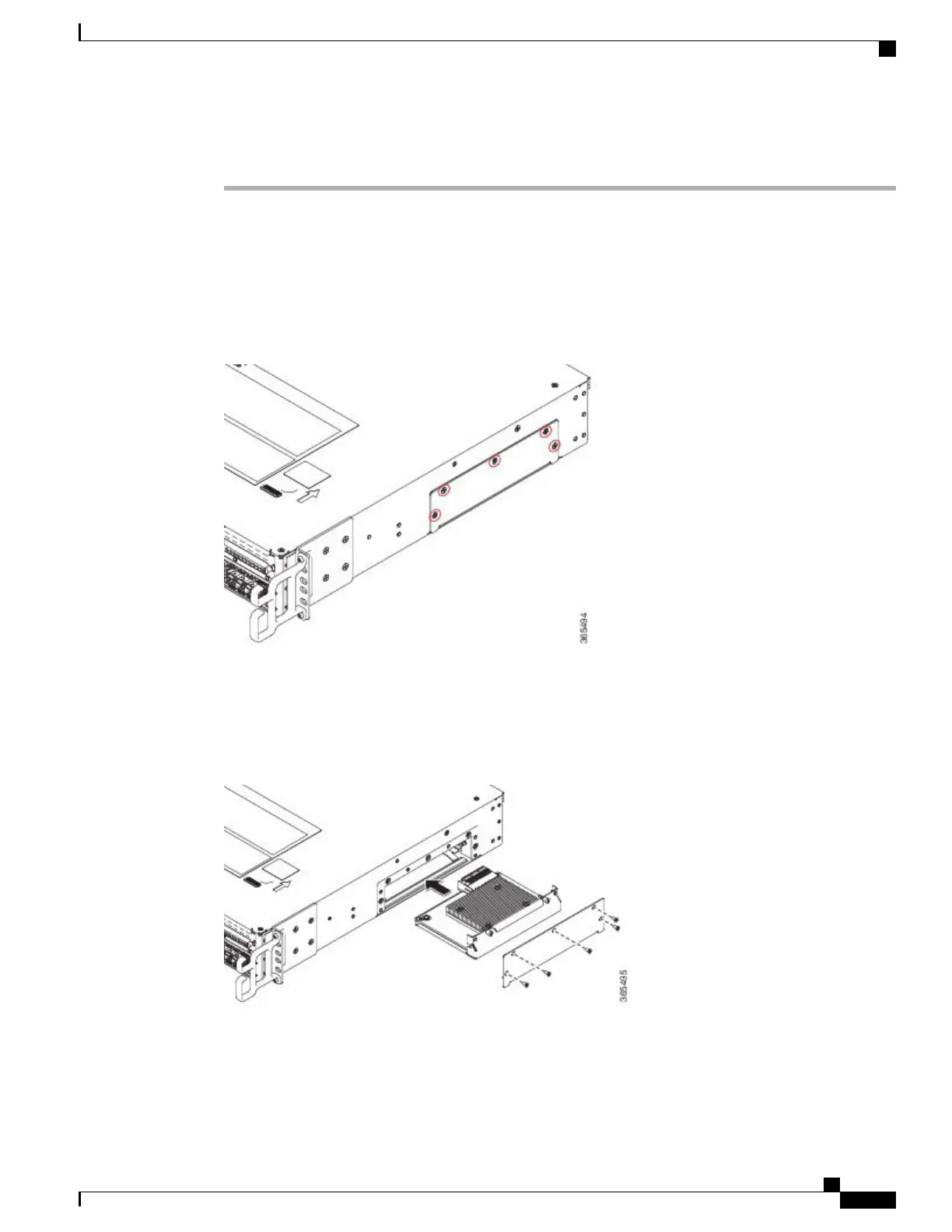

Figure 53: Access Panel Screws
Step 4
Align the crypto module with the guide rails and carefully slide the crypto module into the slot until it is fully
seated.
Figure 54: Installing the Crypto Module
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
143
Removing and Replacing FRUs
Installing the Crypto Module in a Cisco ASR 1002-HX Router
