Cisco ASR 1001-HX User Manual

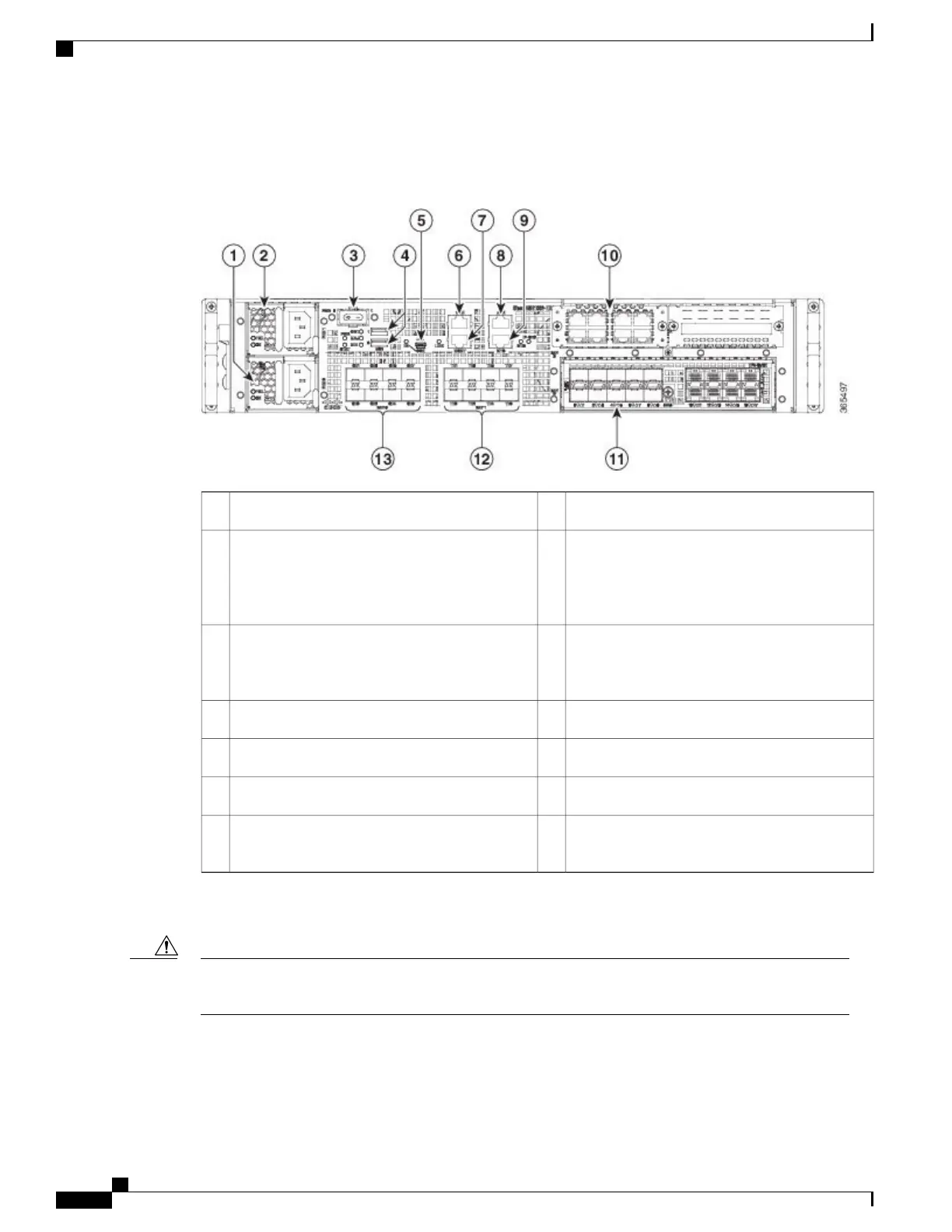

The following figure shows the front of the Cisco ASR 1002-HX Router.
Figure 2: Cisco ASR 1002-HX Router Front View
AUX—RJ-45/RS-232 compatible auxiliary port
8Power supply (PEM 0)1
BITS—RJ-48 Building Integrated Timing Supply
port
The BITS port is not supported in this
software release.
Note
9Power supply (PEM 1)2
Bay 3—NIM slot
NIMs are not supported in this software
release.
Note
10Power (PWR) switch3
Bay 2—EPA slot
11USB ports 0 and 14
Bay 1—10GE SFP+ ports
12
CON—Mini USB console port
5
Bay 0—1GE SFP ports
13
CON—RJ-45/RS-232 compatible console port
6
MGMT—RJ-45 10/100/1000 management
Ethernet port
7
Two power supplies (AC or DC) are accessed from the front of the router and are hot-swappable.
The Cisco ASR 1002-HX Router can support two AC or two DC power supplies. Do not install mixed
AC and DC power supply units in the same chassis.
Caution
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
4
Overview
Front View

Cisco ASR 1001-HX Specifications

General

Form Factor	1 RU
Rack Mountable	Yes
Redundant Power Supply	Optional
Operating Temperature	32 to 104°F (0 to 40°C)
Memory	16 GB
Power Supply	Internal AC or DC
Humidity	5% to 95% non-condensing
Ports	Built-in 8 x 1GE and 4 x 10GE (SFP+)
Maximum NAT sessions	Up to 4 million
