DescriptionPID
EPA-6X10GE uses small form-factor pluggable (SFP+) optical
transceivers to provide network connectivity. Ports are numbered 0 –
5.
See Table 4: Supported SFP+ Transceivers, on page 18 for supported
transceivers.
EPA-6X10GE
EPA-1X100GE uses a CPAK module to provide network connectivity.
See Table 5: Supported CPAK Interface, on page 19 for supported
CPAKs.
EPA-1X100GE
EPA-CPAK-2X40GE uses a CPAK module and a 2x40 GE breakout
cable to provide network connectivity
See Table 5: Supported CPAK Interface, on page 19 for supported
CPAKs.
EPA-CPAK-2X40GE
An EPA has two types of LEDs: an A/L (Active/Link) LED for each port on the EPA, and a STATUS LED,
as shown in the following figure.

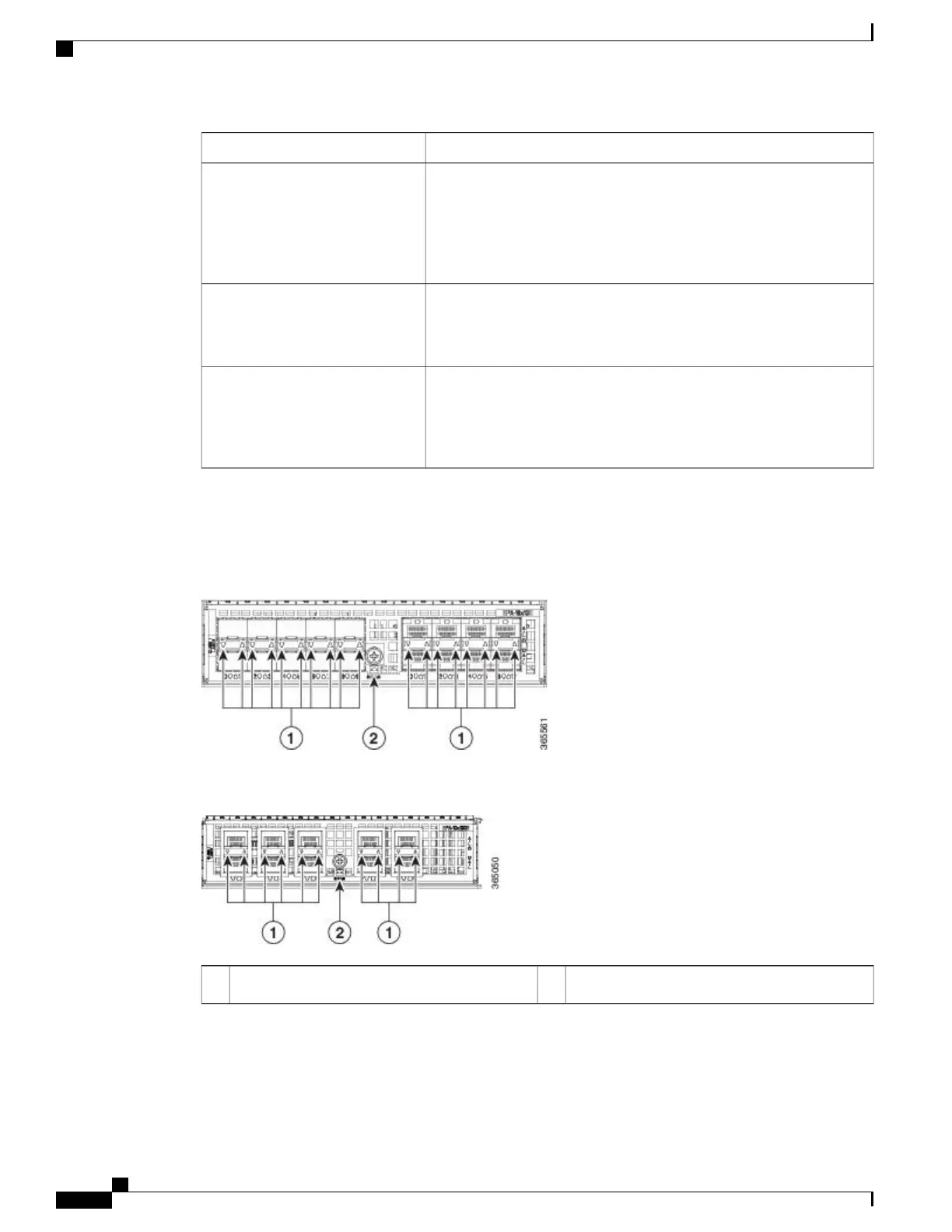

Figure 14: EPA-18X1GE LEDs
Figure 15: EPA-10X10GE LEDs
STATUS2A/L1
